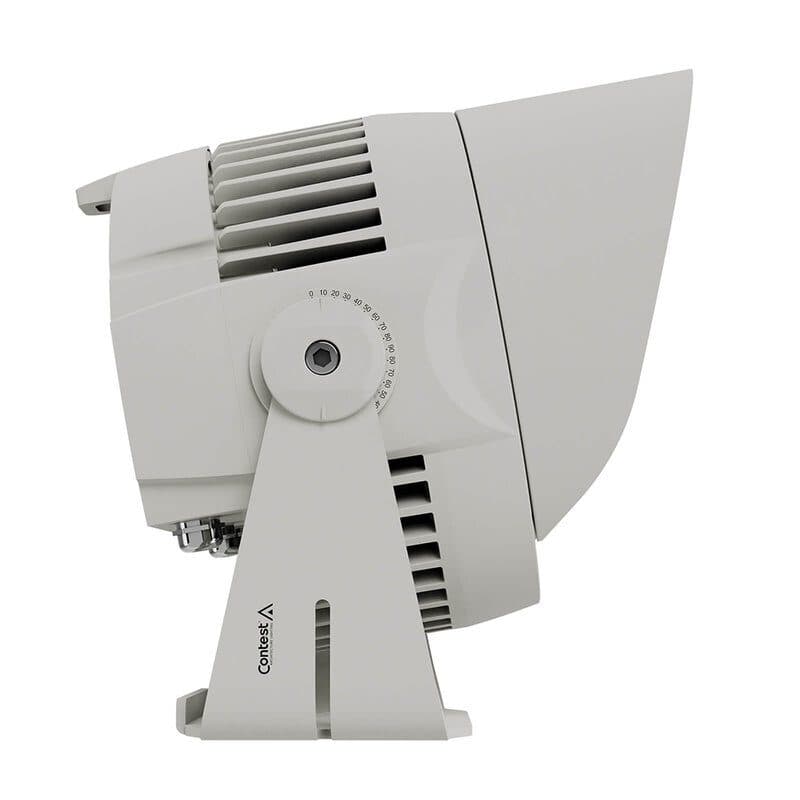

Architectural PAR RGBL flood light 150W 18 LED 25° IP66 - Contest HIT-H11548

The Contest 150 W PAR LED architectural flood light delivers 6285 lm for indoor and outdoor applications, with IP 66 weather resistance. Eighteen 4-in-1 red, green, blue and lime LEDs feed symmetrical 25° lenses. Operating draw is 153 W.

An external VRDM control box handles RDM parameterization and works with RDM consoles on selected parameters. Control uses DMX from 2 to 8 channels depending on the mode, with refresh rate selectable from 900 Hz to 3600 Hz. The cast aluminium body carries white-grey epoxy paint RAL 9002, IP 66 protection against dust and water splashes from all directions, convection cooling, IK 07 impact rating (2 joule mechanical shock, equivalent to a 500 g object falling from 40 cm), and a sealed membrane depressurization valve. DMX and power use IN/OUT hybrid cables with IP67 connectors.

Specifications:

• Brightness: 6285 lm
• LEDs: 18 × 4-in-1 red, green, blue and lime
• Symmetrical lenses: 25° aperture
• Power consumption: 153 W
• External VRDM control box for RDM parameterization
• Compatible with RDM consoles on certain parameters
• DMX control protocol: 2 to 8 channels depending on selected mode
• Update frequency: 900 Hz to 3600 Hz
• IP 66 protection: dust and water splashes from all directions
• Cooling: convection
• DMX/power connections: IN/OUT hybrid cables, IP67 connectors
• Body: cast aluminium, white-grey epoxy paint RAL 9002
• IK 07 shock resistance: 2 joules (500 g object from 40 cm height)
• Sealed membrane depressurization valve
• Power supply: 110 - 240 VAC 50/60 Hz
• Dimensions: 157 × 270 (H) × 290 mm
• Weight: 7 kg
• Power input: 100 - 240 V AC 50/60 Hz
• Energy label: no
• Colour: grey
• Display: no
• IP rating: outdoor
• Programmable: no
• Upgradable software: no
• Lamp socket: no
• Lux: 1270 (@ 5 m)
• Lamp: LED
• Colours: lime, RGBL
• Mix colours: no
• Max. refresh rate (kHz): -
