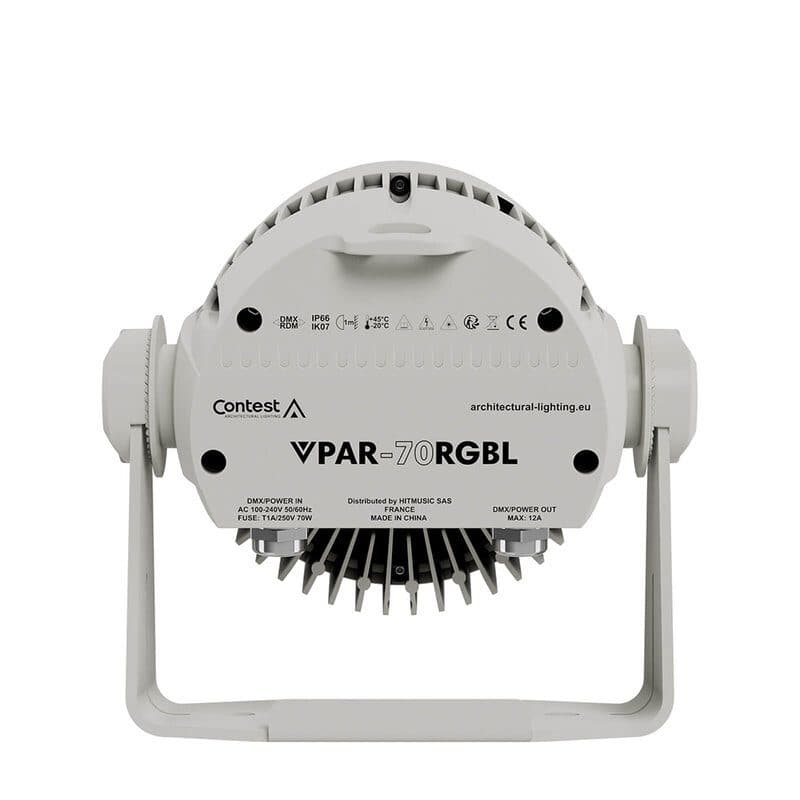

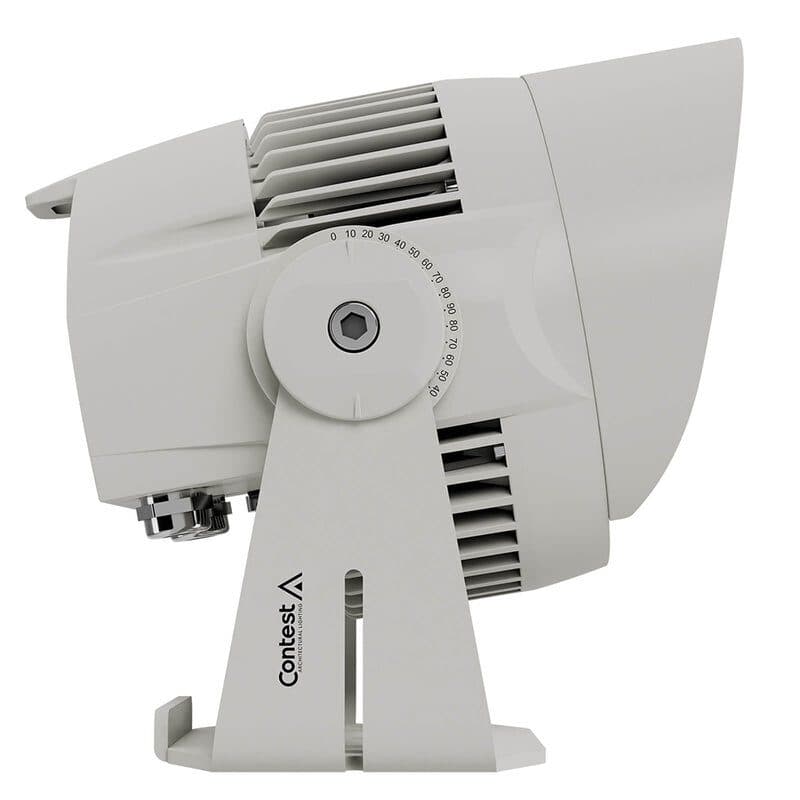

Architectural PAR LED flood light 70W RGBL IP66 25° - CONTEST HIT-H11550

The Contest 70 W PAR LED architectural flood light delivers 2165 lm for indoor and outdoor use thanks to IP66 weather resistance. Seven 4-in-1 red, green, blue and lime LEDs feed symmetrical 25° lenses; stated power draw is 72 W.

RDM setup uses an external VRDM control box; the unit works with RDM consoles on selected parameters. DMX control spans 2 to 8 channels depending on the chosen mode, with refresh rate adjustable from 900 Hz to 3600 Hz. IP66 protection covers dust and water splashes from all directions; cooling is by convection. DMX and mains use IN/OUT hybrid cables with IP67 connectors. The cast aluminium body carries white-grey epoxy paint RAL 9002. IK07 impact rating equals 2 joules (500 g mass dropped from 40 cm). A sealed membrane depressurisation valve is fitted. Nominal supply 110–240 VAC 50/60 Hz.

Specifications:

• Dimensions: 224 x 117 x 221 mm
• Weight: 3.5 kg
• Power input: 100–240 V AC 50/60 Hz
• Energy label: no
• Power consumption: 72 W
• Color: grey
• Display: no
• IP rating: outdoor
• Programmable: no
• Upgradable software: no
• Lamp socket: no
• Lux: 428 (@ 5 m)
• Lamp: LED
• Colors: RGBL
• Mix colors: no
• Max. refresh rate (kHz): -
• Brightness: 2165 lm
• LEDs: 7 x 4-in-1 red, green, blue and lime
• Lens aperture: 25°
• External VRDM control box for RDM parameterization
• Compatible with RDM consoles on certain parameters
• DMX control protocol: 2 to 8 channels (selected mode)
• Selectable update frequency: 900 Hz to 3600 Hz
• IP66 protection: dust and water splashes from all directions
• Cooling: convection
• DMX/power connections: IN/OUT hybrid cables, IP67 connectors
• Body: cast aluminium, white-gray epoxy paint RAL 9002
• IK07 shock resistance: 2 joule mechanical shock, 500 g object from 40 cm height
• Sealed membrane depressurization valve
• Power supply: 110–240 VAC 50/60 Hz
