Architectural flood light LED panel RGBL IP66 30° - CONTEST HIT-H11547

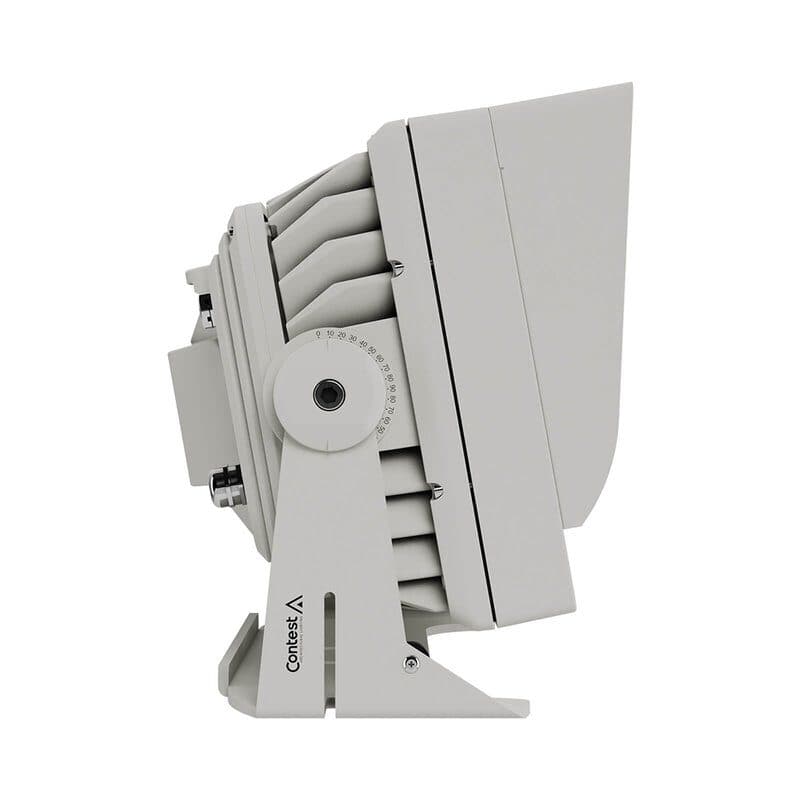

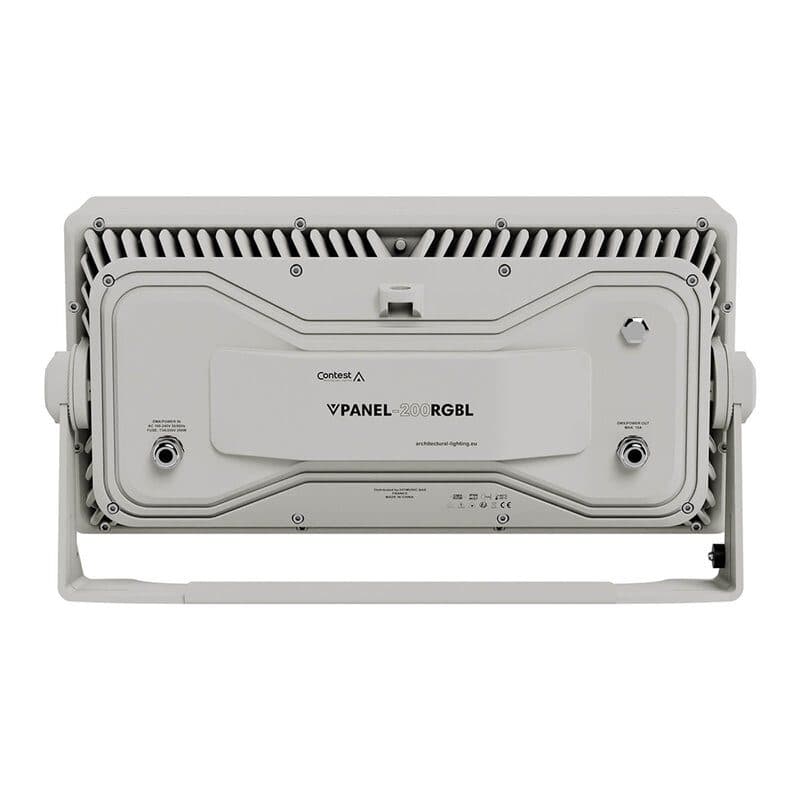

VPANEL-200RGBL is a high-performance all-in-one architectural projector that stands out for its exceptional lighting quality that allows you to enhance every detail. It offers an impressive brightness of 6352 lumens thanks to 24 LEDs of 20 W each (red, blue, green, lime) to ensure exceptional visibility in the most demanding contexts. Thanks to the RGBL LEDs, this projector is able to produce a wide range of colors to create unique and personalized atmospheres suitable for any architectural style. Adding the color lime (lemon yellow) to the other three colors creates new shades unattainable with traditional RGB mixing. In fact, it is known that the yellow ranges are the weak point of RGB sources. Equipped with symmetrical lenses with a 30° aperture, VPANEL-200RGBL guarantees uniform light distribution, highlighting every architectural contour with unmatched finesse. The IP66 certification makes it completely impervious to dust and the most adverse atmospheric conditions, while its robustness is the perfect choice for demanding conditions of use. DMX/power connections via hybrid cables equipped with IP67 connectors offer easy integration when using many fixtures simultaneously. Despite its exceptional power, the VPANEL-200RGBL is designed for a maximum power consumption of just 207 W. LED technology consumes less energy than traditional light sources, reducing operating costs and respecting the environment. Main features 24 x 20 W four-color RGBL LEDs (red, green, blue, lime) Brightness: 6352 lm, 1080 lux at 5 m Symmetrical lenses with 30° opening and double structure for perfect beam distribution DMX / power connections via hybrid IN/OUT cables with IP67 connectors External VRDM control unit for RDM parameterization Compatible with RDM consoles on certain parameters DMX control protocol from 2 to 20 channels depending on the selected mode IP66 protection rating: resists dust and splashes of water from all directions Power consumption: 207 W Selectable refresh rate from 900 to 3600 Hz Convection cooling Finishes: cast aluminium, RAL 9002 white-grey epoxy paint Shock resistance IK07: protected against a mechanical shock of 2 joules, corresponding to an object weighing 500 g dropped from a height of 40 cm Sealed diaphragm depressurization valve Power supply: 110 - 240 VAC 50/60 Hz

Technical characteristics

• Colors: RGBL
• Lux: 1080 lux @ 5 m
• Lamp: LED
• Power input: 100 - 240 V_AC 50/60 Hz
• Power consumption: 207 W
• IP rating: outdoor
• Protocol: DMX, RDM
• Color: grey
• Dimensions: 58.2 x 27 x 17.8 cm
• Weight: 15.3 kg
