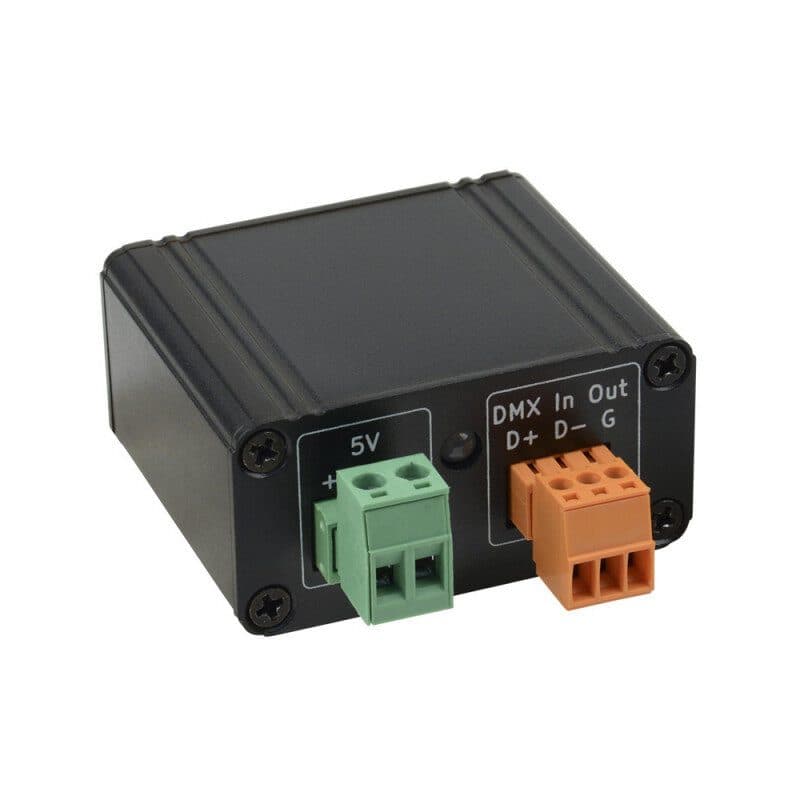

Controller SMARTTAPE 250 pixel 256 channels DMX - CONTEST SMART-CTL250

SMARTTAPE controller, 250 pixels or 256 DMX channels, for RGB LED tapes, a unique way to manage thousands of light points with extraordinary animations. With just a few DMX channels, you can create an infinite number of animations in configurations beyond the capabilities of the usual controllers. The software simulator allows you to discover your installation with SMARTTAPE ribbons directly from a computer. It allows the configuration of the boxes in RDM, to create effects and to memorize them. The SMARTPIXEL software allows you to create effects directly from a computer and store them in your interface for standalone use. The simulator is composed of a control module reproducing 16 DMX channels and an output screen displaying the effects. It is necessary to use the SMART-USB dongle.

Technical characteristics

• SMARTTAPE controller (LEDs WS2811, WS2812 WS2813 P943F etc.)
• Input voltage: 5 V
• Number of outputs: 1
• Output type: data LED, DMX
• Inputs: DMX use (8 or 16 channels) with dedicated software (simulator), stand-alone mode
• Outputs: 1 Euroblock LED DATA output, 250 pixels max. or 1 x 256 channel DMX output
• Programming: RDM parameterization and programming via Smart USB
• Power supply: 5 V_DC Euroblock terminals
• DMX in: Euroblock terminals
• Dimensions: 55 x 55 x 29 mm
• Weight: 70 g
