Flat truss 290mm, right angle coupler 2 directions 90° - CONTESTAGE HIT-H10041

290 mm ladder truss 2 directions right hand corner joint. 90° angle. ISO DIN 4113 and TÜV certified. Made in aluminium alloy (EN AW 6082 T6, diameter 50 mm, thickness 2 mm). Conical connectors and pins for quick set up and disassembling. Safe, stable and resistant installation guaranteed. Suitable for stage structures, exhibition booths, concert and DJ stages, theaters, discoteques, lounges, gardens and outdoor events. Supplied with 1 x connection kit.

Technical characteristics

• 50 mm tubes
• 16 mm braces
• Distance between each tube: 240 mm

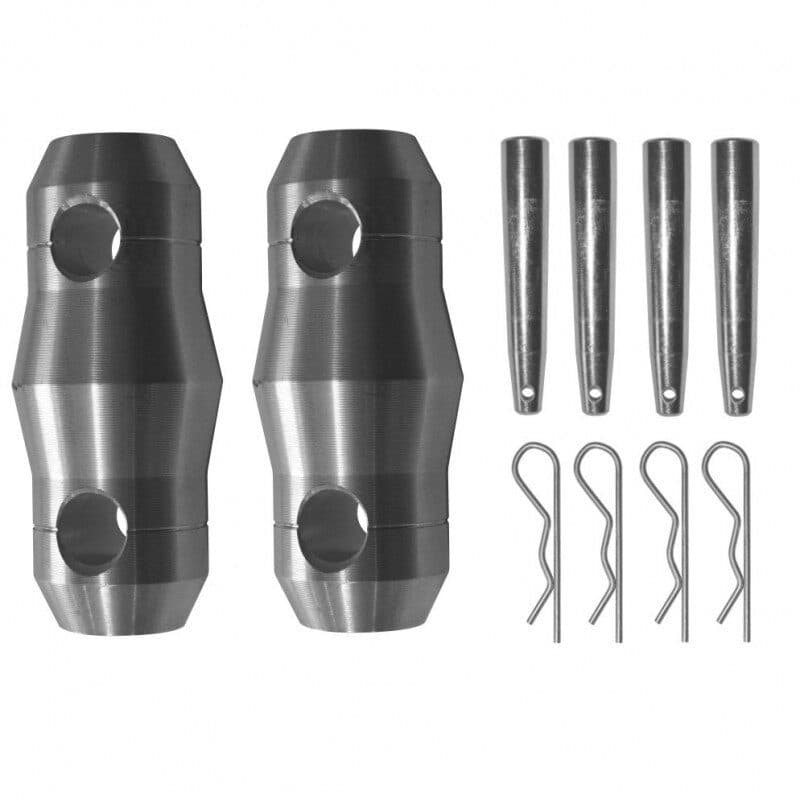

• Can be assembled with conical connectors and pins
• Width: 290 mm

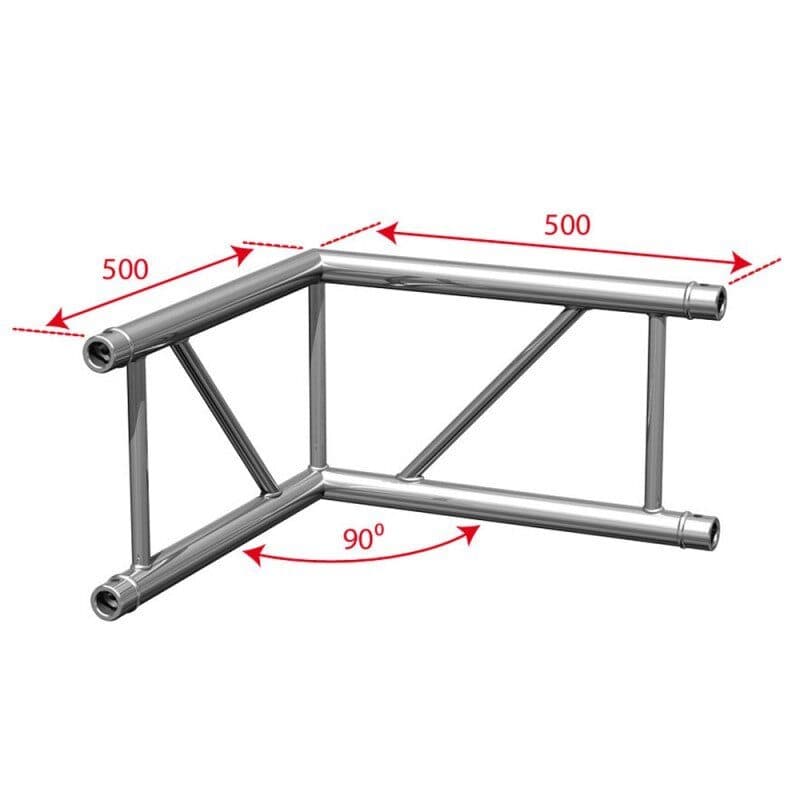

• Angle: 2 directions - 90°

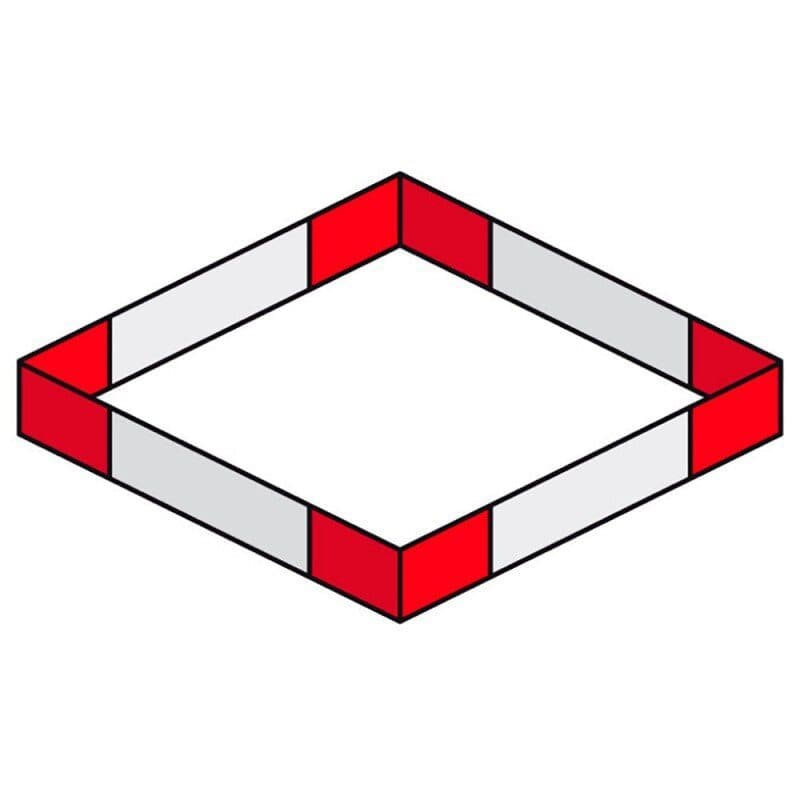

• Use: horizontal or vertical corner joint
• Max. dimensions: 50 cm x 50 cm
