Flat truss 290mm, 3-way right angle coupler 90° - CONTESTAGE HIT-H10044

290 mm ladder truss 3 directions right hand corner joint. 90° angle. ISO DIN 4113 and TÜV certified. Made in aluminium alloy (EN AW 6082 T6, diameter 50 mm, thickness 2 mm). Conical connectors and pins for quick set up and disassembling. Safe, stable and resistant installation guaranteed. Supplied with 2 x connection kit. Areas of use Stages Trade fair stands Concert and DJ stages Theaters Nightclubs Lounges Gardens Outdoor events

Technical characteristics

• 50 mm tubes
• 16 mm braces
• Distance between each tube: 240 mm
• Can be assembled with conical connectors and pins

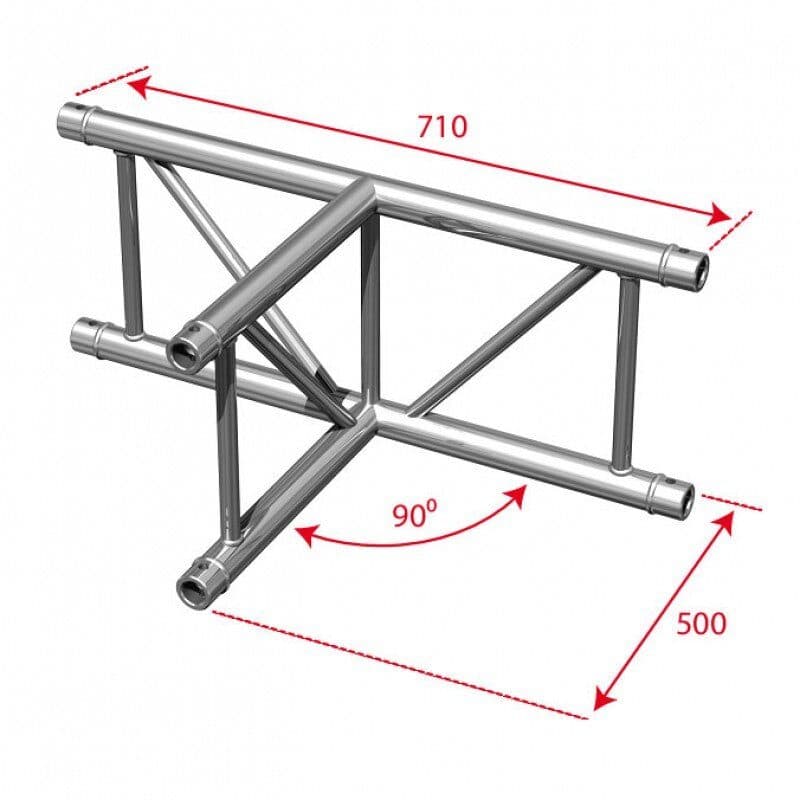

• Angle: 3 directions - 90°
• Use: horizontal or vertical corner joint
• Width: 290 mm
• Max. dimensions: 71 x 50 cm
