Triangular truss 290 mm 100 cm - CONTESTAGE HIT-H3248

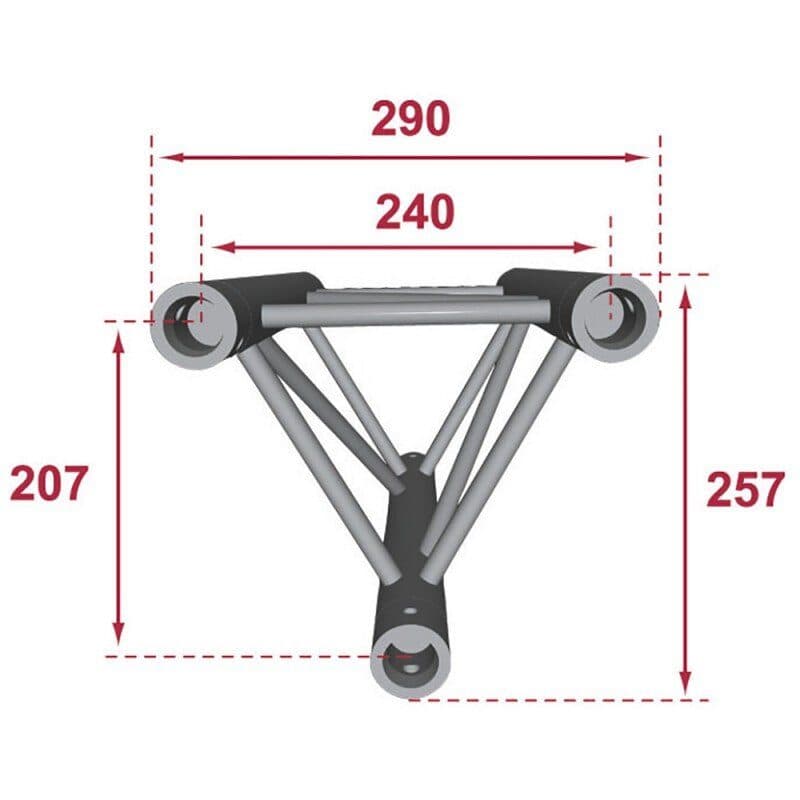

Contestage HIT-H3248 is a triangular truss element measuring 290 mm in width and 100 cm in length, manufactured from EN AW 6082 T6 aluminium alloy. Its tubes have a 50 mm diameter and 2 mm wall thickness, while the braces measure 16 mm. The spacing between each tube is 240 mm and the average weight is 4.5 kg per metre.

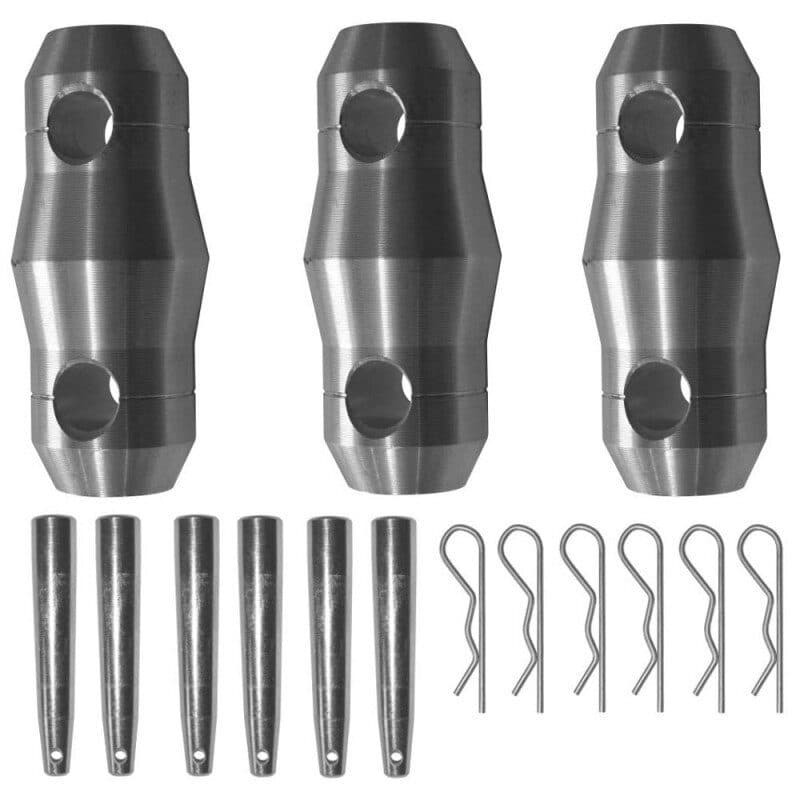

Conical connectors and pins allow fast assembly and dismantling while providing a safe, stable and resistant installation. The truss is ISO DIN 4113 and TÜV certified, can be assembled with conical connectors and pins, and is supplied with 1 connection kit. It is intended for use with the tip pointing downwards.

Applications include stage structures, exhibition booths, concert and DJ stages, theatres, discos, lounges, gardens and outdoor events.
