Triangular truss 220 mm right-angle corner coupler 90° 50 cm - Contestage HIT-H10233

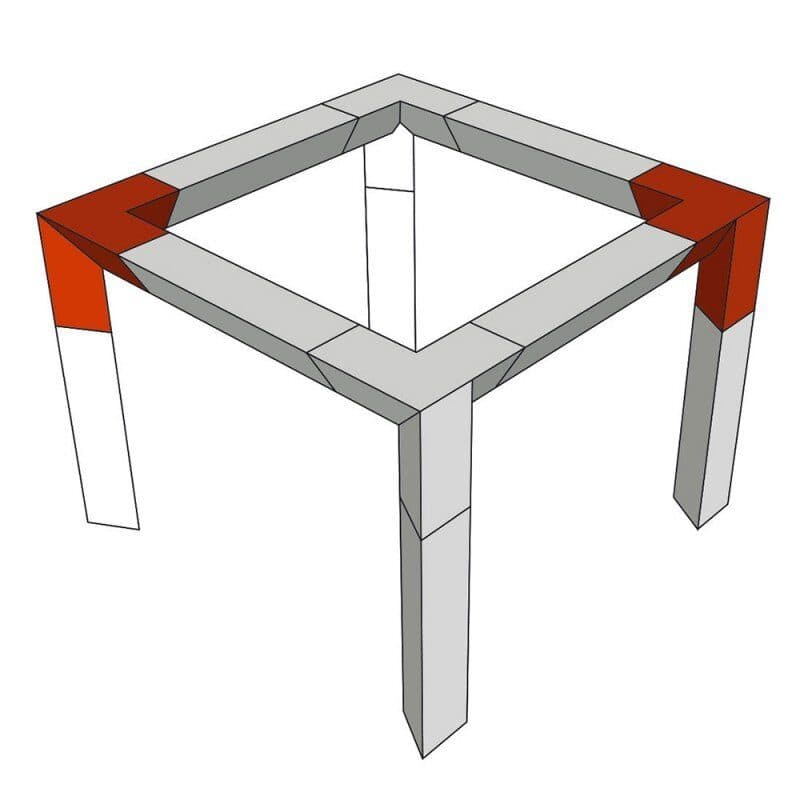

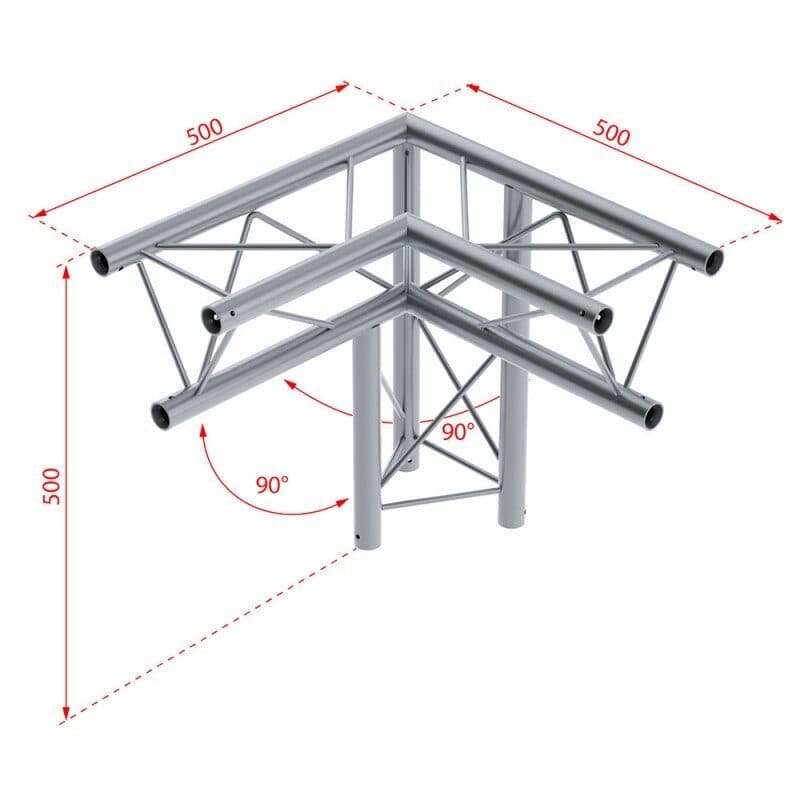

This Contestage triangular truss section measures 220 mm and features a right-hand corner joint with 3 directions and a 90° angle, suitable for horizontal or vertical corner-joint applications. The section is 50 cm long and 220 mm wide, with 185 mm between each tube; its maximum size is 50 cm x 50 cm. The tubes measure 35 mm, while the braces are 8 mm.

Construction uses EN AW 6060-T aluminium alloy, with a 35 mm diameter and 1.6 mm thickness. Conical connectors and pins enable fast assembly and dismantling, and allow the truss to be assembled with the same connector system. ISO DIN 4113 and TÜV certification support a safe, stable and resistant installation.

The truss is suitable for shop structures, exhibition booths, DJ stages, discotheques, lounges, gardens and outdoor events. The package contains 2 connection kits.
