Side corner coupler 4-way square truss 290mm 90° black - Contestage HIT-H11002

Contestage H11002 is a 4-way side corner joint for a 290 mm square truss, featuring a 90° angle. It is manufactured from EN AW 6082 T6 aluminium alloy, with tubes measuring 50 mm in diameter and 2 mm in thickness. Conical connectors and pins make assembly and dismantling quicker, helping provide a safe, stable and resistant installation. The black component is intended for stage structures, exhibition booths, concert and DJ stages, theatres, discotheques, lounges, gardens and outdoor events.

Specifications:

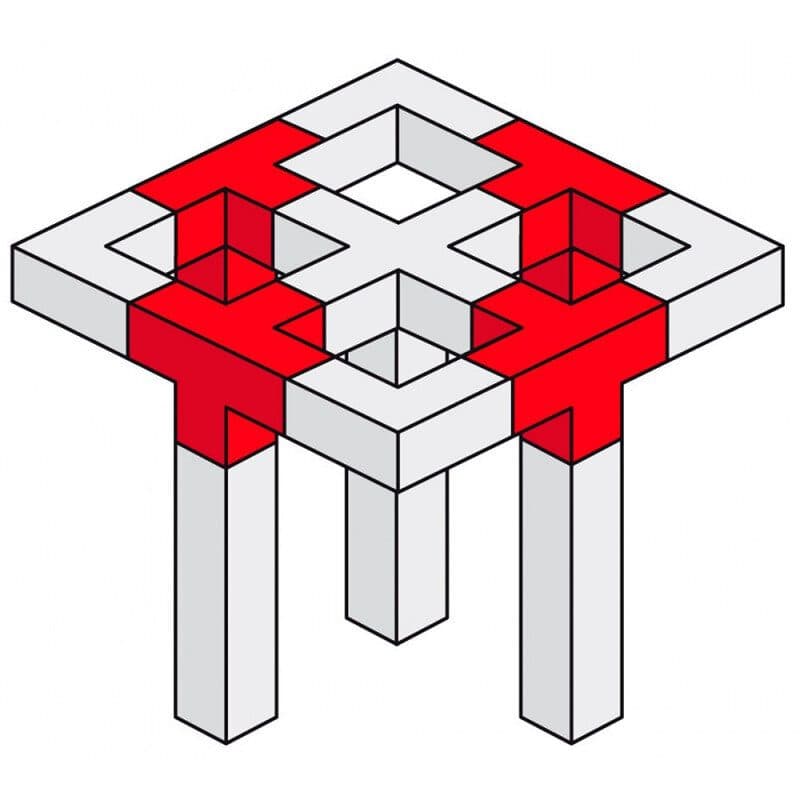

• Design: 4-direction side corner joint
• Structural format: 290 mm square truss
• Angle: 90°
• Certifications: ISO DIN 4113 and TÜV
• Material: EN AW 6082 T6 aluminium alloy
• Tube: 50 mm diameter, 2 mm thickness
• Connection system: conical connectors and pins
• Colour: black
• Truss type: quattro
• Dimensions: 50 x 71 x 50 cm
• Weight: 10.6 kg
• Areas of use: stage structures, exhibition booths, concert and DJ stages, theatres, discotheques, lounges, gardens and outdoor events
