Lateral 4-way 90° truss coupler 290mm white - CONTESTAGE HIT-H11525

Contestage HIT-H11525 is a 4-direction side piece corner joint for a 290 mm square truss, featuring a 90° angle.

It is built from EN AW 6082 T6 aluminium alloy, with tubes measuring 50 mm in diameter and 2 mm in thickness. Conical connectors and pins enable fast installation and dismantling, supporting a safe, stable and resistant solution. The joint can be used for stage structures, exhibition booths, concert and DJ stages, theatres, discotheques, lounges, gardens and outdoor events. The finish is white.

Specifications:

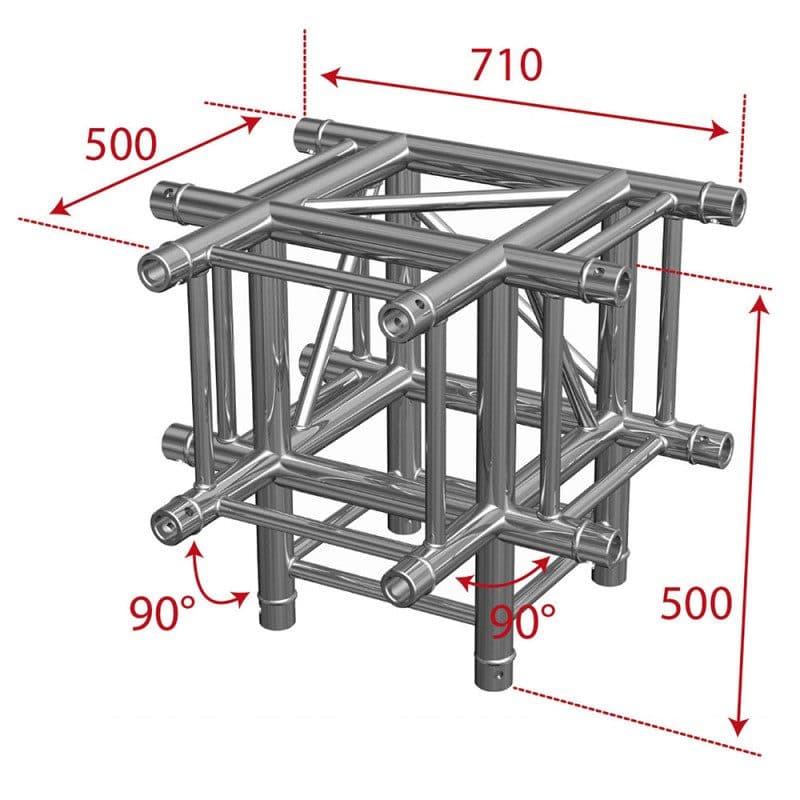

• Dimensions: 50 x 71 x 50 cm
• Weight: 10.6 kg
• Colour: white
• Tube: Ø 50 x 2 mm
• Truss type: quattro
• Square truss: 290 mm

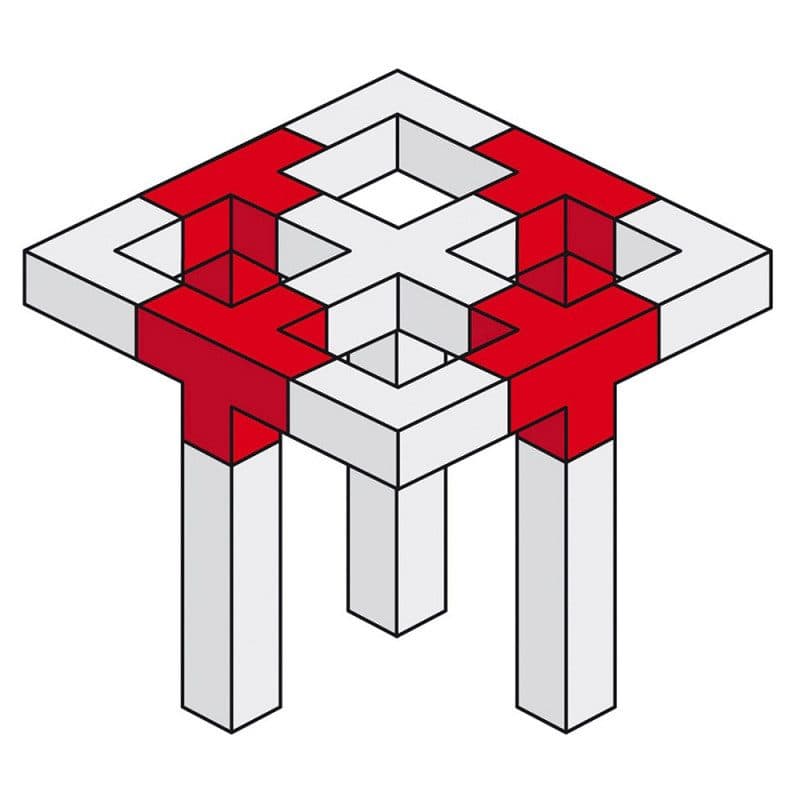

• Configuration: 4-direction side piece corner joint
• Angle: 90°
• Material: EN AW 6082 T6 aluminium alloy
• Certifications: ISO DIN 4113 and TÜV

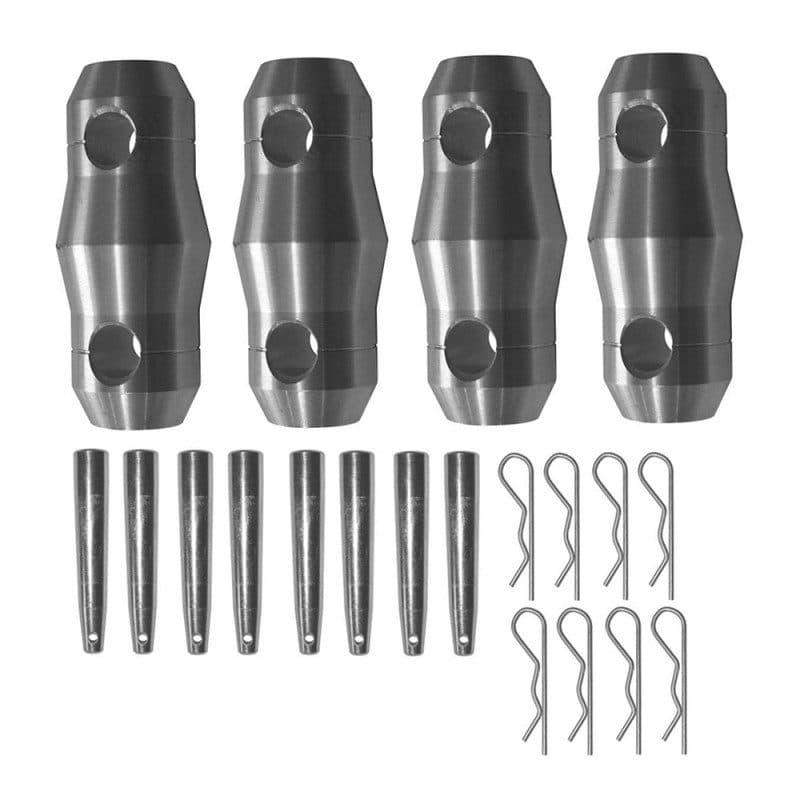

• Connectors and pins: conical
• Applications: stage structures, exhibition booths, concert and DJ stages, theatres, discotheques, lounges, gardens and outdoor events
