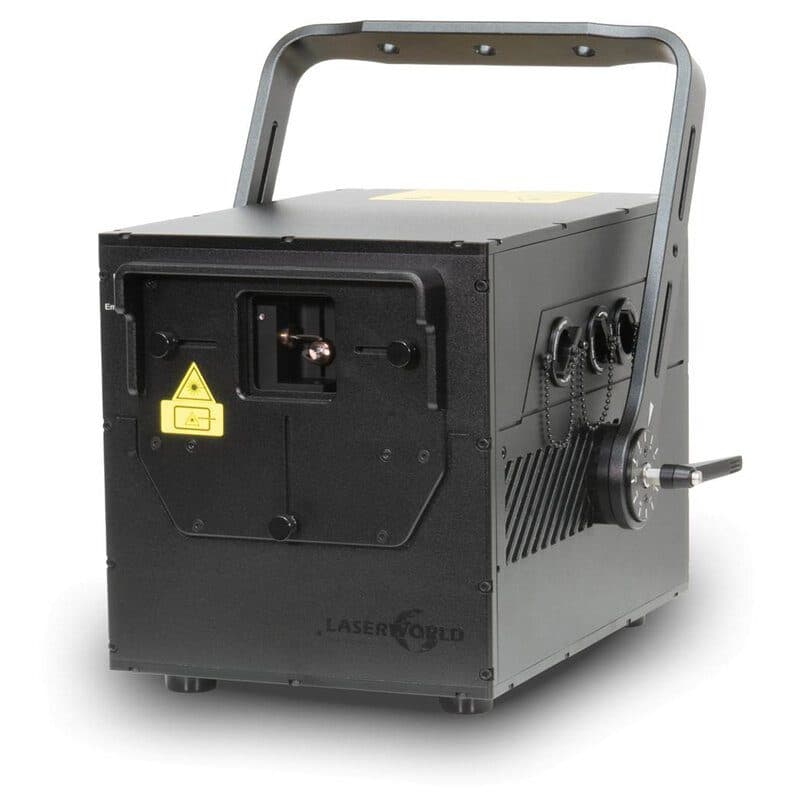

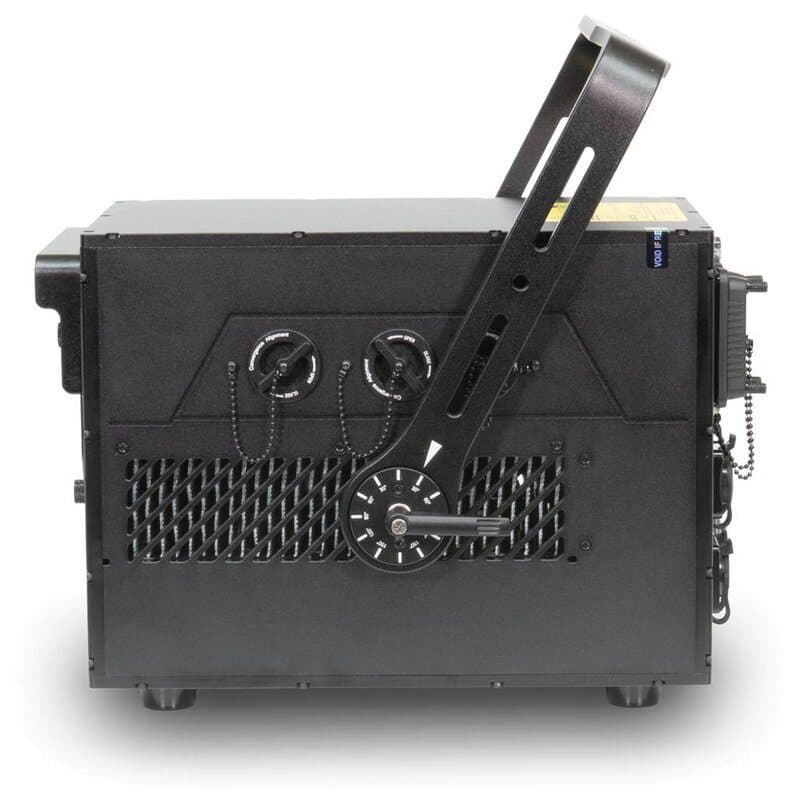

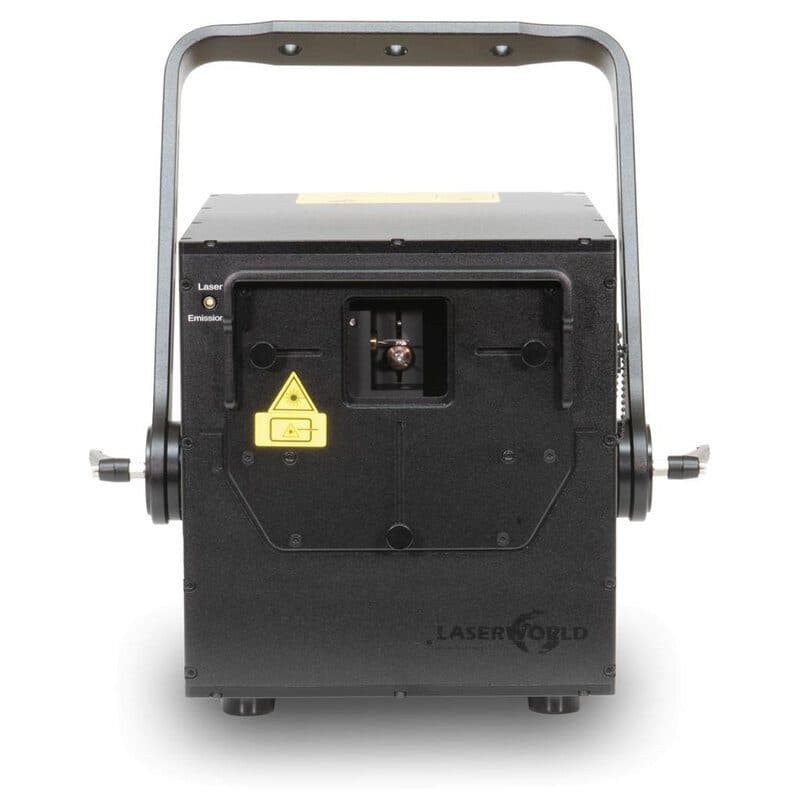

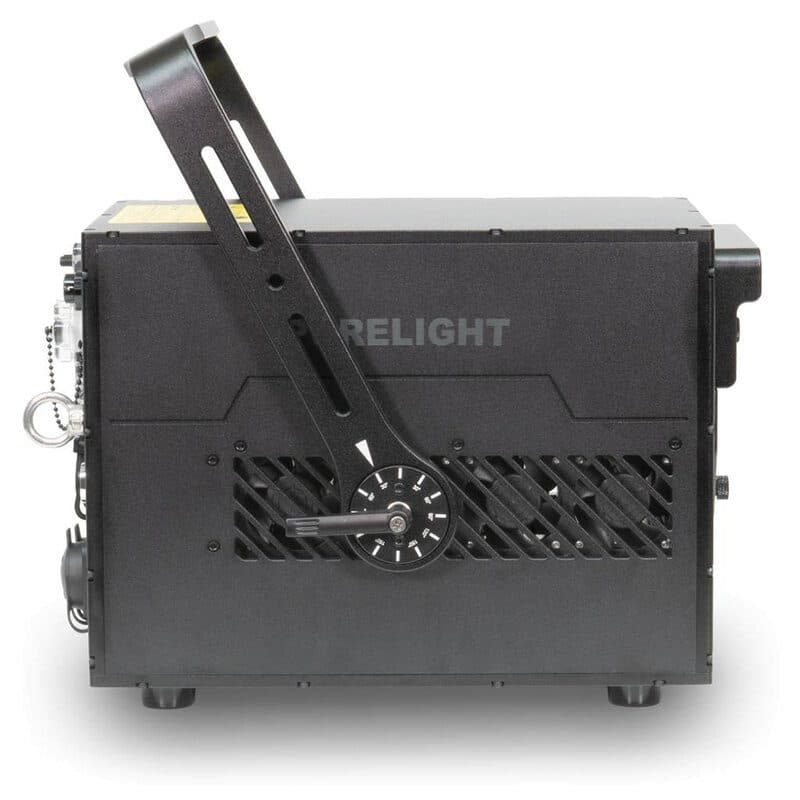

Laser system RGB 5000mW Purelight IP65 FB4 QuickShow - Laserworld LAS-7640144998462FB4

The PL‑5 FB4 is a 5000 mW RGB laser system from the Purelight series, based on the new RSL2 technology, developed to achieve a sharper beam, improved optical quality, and an extremely compact and lightweight enclosure. Thanks to its IP65 rating, the PL‑5 FB4 is ideal for permanent outdoor installations, tours, and productions requiring maximum reliability even in harsh environmental conditions. The system uses high-performance 45 kpps @ 8° scanners, with a maximum scanning angle of 50°, making it suitable for projecting professional graphics, logos, text, and complex effects. The beam has specifications of approximately 5.5 mm / 0.9 mrad, ensuring high visibility and precision. Each unit integrates the Pangolin FB4 interface, which allows control via DMX, Art‑Net, LAN, and ILDA, as well as the ability to recall shows and effects directly from the internal memory. The device is compatible with professional software such as QuickShow (included) and BEYOND, offering an advanced workflow for creating and managing complex laser shows. The PL‑5 FB4 comes with a waterproof flight case and Pangolin QuickShow software, ensuring a professional and immediately operational working environment. User benefits RSL2 technology for superior optical quality Compact housing 5.5 mm defined beam with low divergence (0.9 mrad) 45 kpps professional scanners suitable for complex graphics IP65 rating Pangolin FB4 interface with DMX, Art-Net, LAN, and ILDA control Internal memory for shows and effects recalled via DMX or Art-Net Includes waterproof flight case and Pangolin QuickShow software Areas of use Permanent outdoor installations Medium- and large-sized clubs and venues Touring Productions Graphic projections, logos, and custom content Corporate events and multimedia shows Small- and medium-scale outdoor shows

Technical characteristics

• Guaranteed power at aperture: 5000 mW
• Red output: 1000 mW / 638 nm
• Green output: 2000 mW / 520 nm
• Blue output: 3000 mW / 450 nm
• Beam specifications: approx. 5.5 mm / 0.9 mrad
• Scanner: 45 kpps @ 8°
• Max. scan angle: 50°
• Laser source: diode
• Laser class: 4

• Operation modes: ILDA, DMX, Art‑Net, LAN, integrated SD card, stand‑alone
• Basic patterns: over 120 (level, tunnel, grid, waves, etc.)

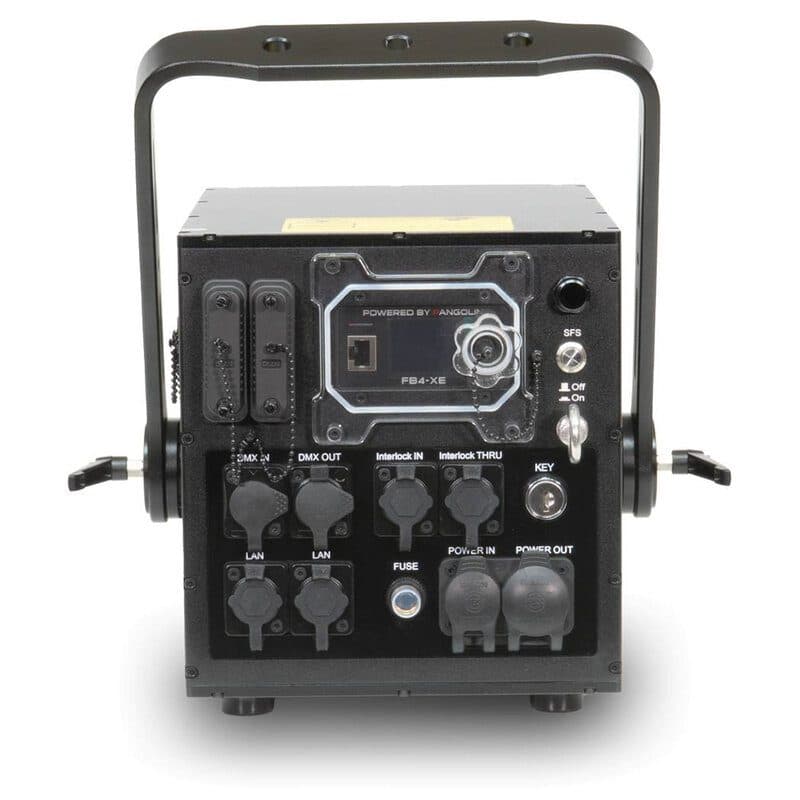

• Integrated control: Pangolin FB4 interface

• IP rating: 65
• Power supply: 85 – 250 V_AC 50/60 Hz
• Power consumption: 80 W

• Dimensions (L x W x H): 31.3 x 20 x 21.2 cm
• Weight: 13 kg
• What's in the box:
  • Laserworld PL‑5 FB4
  • Waterproof flightcase
  • Power cable
  • Interlock
  • Key
  • Manual
  • Pangolin QuickShow software
