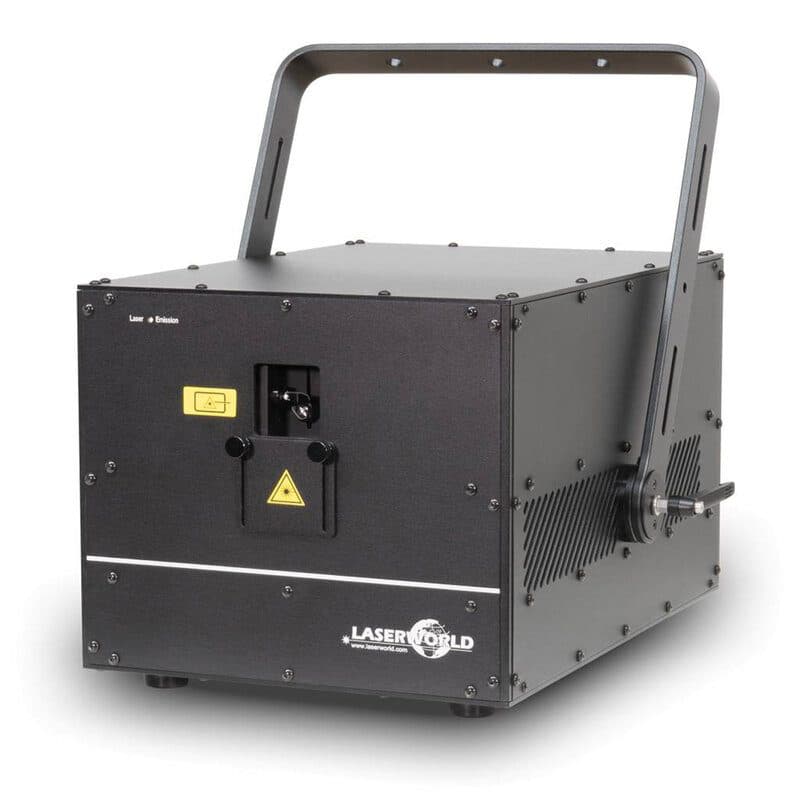

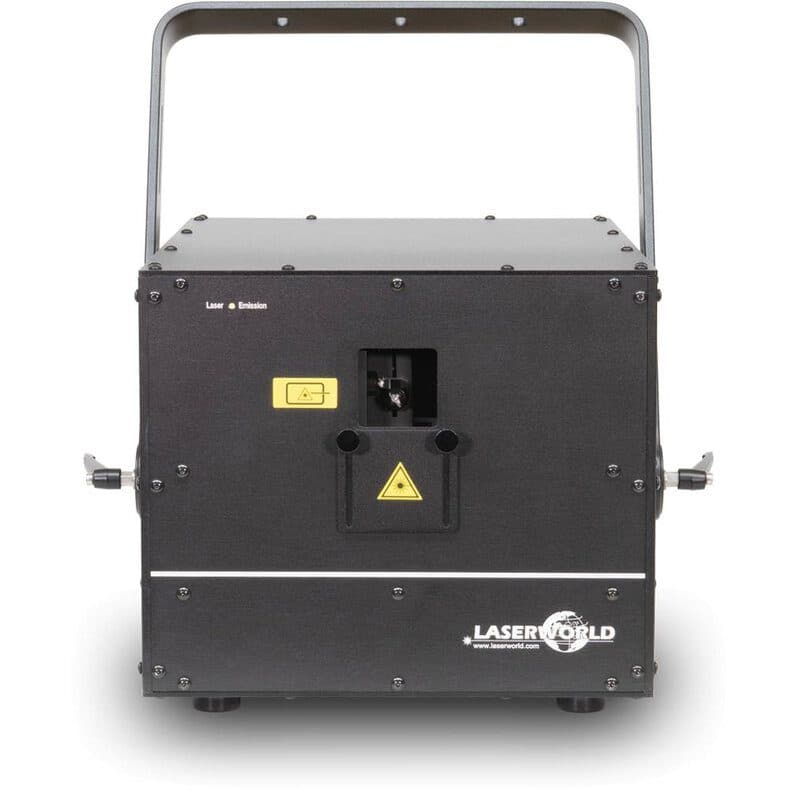

Laser RGB professional 30000mW IP65 FB4 - LASERWORLD LAS-7640144996178FB4

The DS-30.000 FB4 IP65 is a professional 30,000 mW RGB laser system, designed for large events and outdoor installations thanks to its IP65 rating. The all-diode source guarantees intense colors, high saturation, and an extremely sharp beam, with specifications of approximately 5.5 mm / 1.1 mrad, ensuring maximum visibility even over long distances. The system integrates the Pangolin FB4 interface, which allows control via DMX, Art-Net, LAN, and ILDA, as well as the ability to load custom content into the internal memory and recall it directly via DMX or Art-Net. It is compatible with professional software such as QuickShow (included) and BEYOND, offering an advanced workflow for complex shows. The 30 kpps @ 8° scanners and wide 50° maximum scan angle make the IP65-rated DS-30.000 FB4 suitable for projecting graphics, logos, text, and complex effects. The fully sealed enclosure minimizes maintenance, making it ideal for permanent installations and intensive outdoor use. User benefits High output of 30,000 mW with saturated colors and an extremely visible beam Rugged IP65 housing for outdoor use and minimal maintenance Integrated Pangolin FB4 interface with DMX, Art-Net, LAN, and ILDA control Internal memory for shows and effects recalled via DMX or Art-Net Compatible with professional QuickShow (included) and BEYOND software Suitable for projecting graphics, logos, text, and complex effects Areas of use Festivals and large outdoor events Stages and large-scale live productions Permanent outdoor installations Venues and clubs Logo projections, laser mapping, and complex graphic content Multimedia shows

Technical characteristics

• Guaranteed power at aperture: 30,000 mW
• Red output: 6000 mW / 638 nm
• Green output: 8500 mW / 520 nm
• Blue output: 16,000 mW / 450 nm
• Beam specifications: approx. 5.5 mm / 1.1 mrad
• Scanner: 30 kpps @ 8°
• Max. scan angle: 50°
• Laser source: diode
• Laser Class: 4

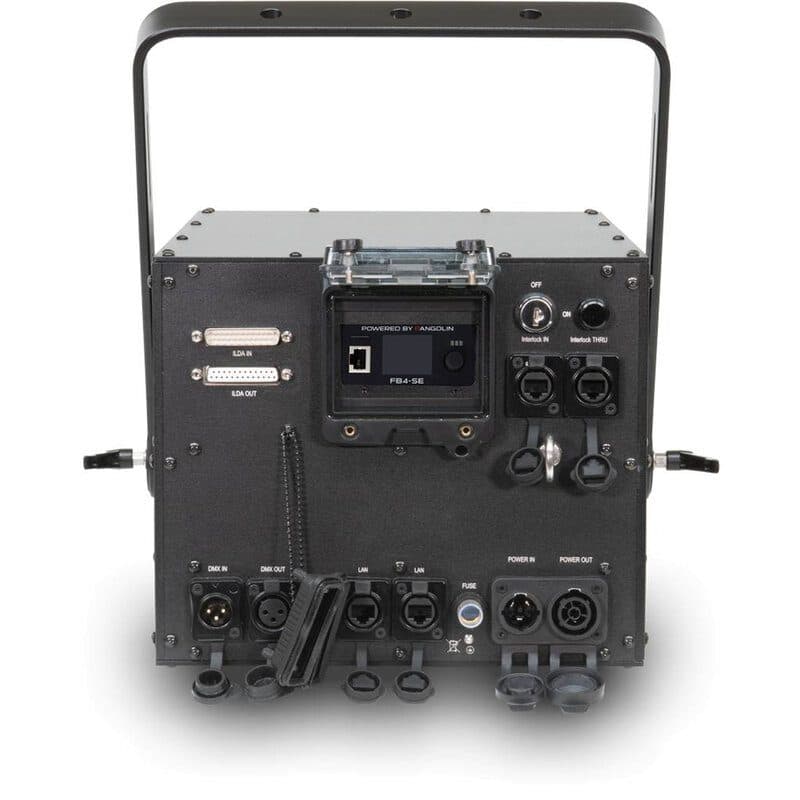

• Operation modes: ILDA, DMX, Art‑Net, LAN, integrated SD card, stand‑alone
• Basic patterns: available for download
• Integrated control: Pangolin FB4 interface

• IP rating: 65
• Power supply: 85 – 250 V_AC 50/60 Hz
• Power consumption: 350 W

• Dimensions (L x W x H): 37.8 × 26 × 21.8 cm
• Weight: 17.3 kg
• What's in the box:
  • Laserworld DS‑30.000 FB4 IP65
  • Power cable
  • Interlock dongle
  • Key
  • Manual
  • Pangolin QuickShow software
