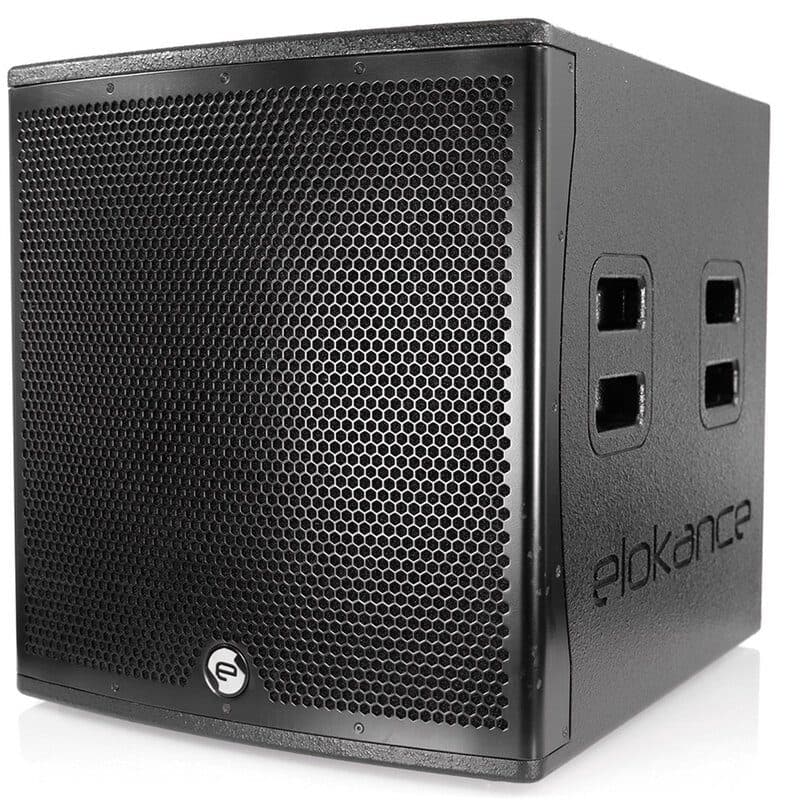

Active mono subwoofer 18" MK2 500W RMS - ELOKANCE MSC-ELOELOSUB18AMONOMK2

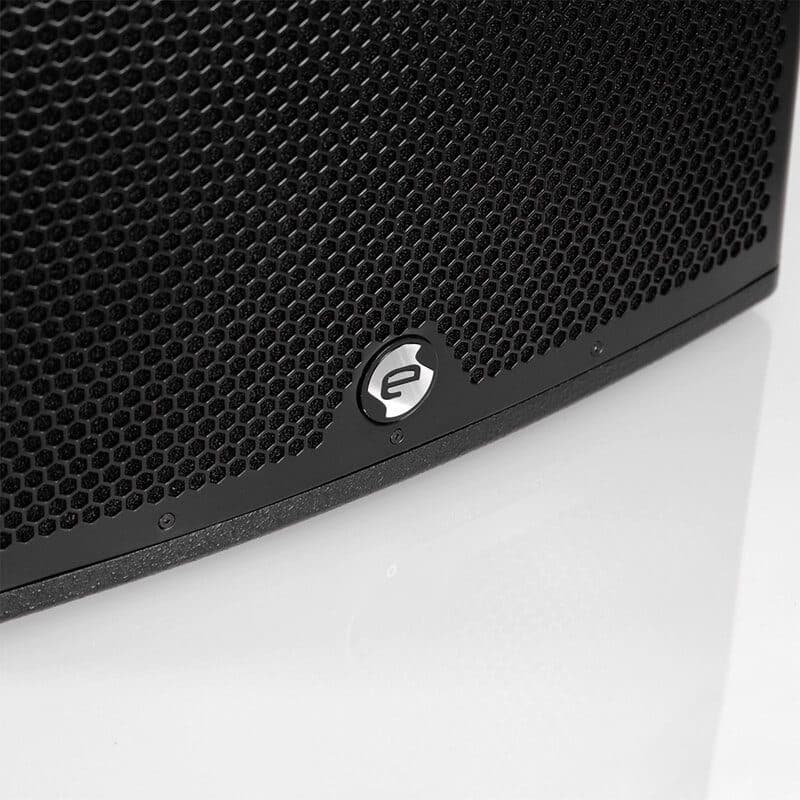

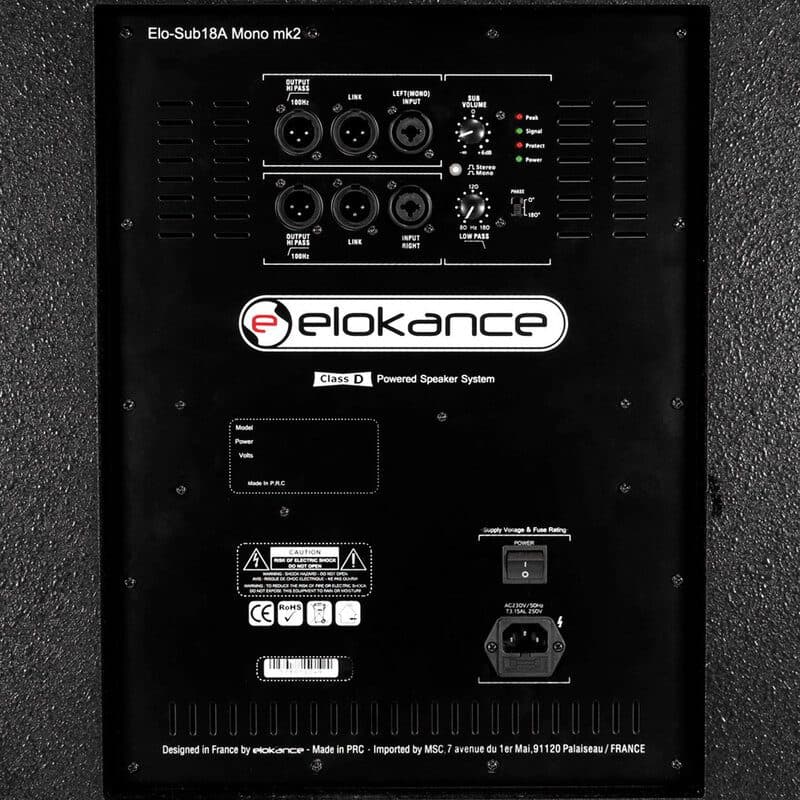

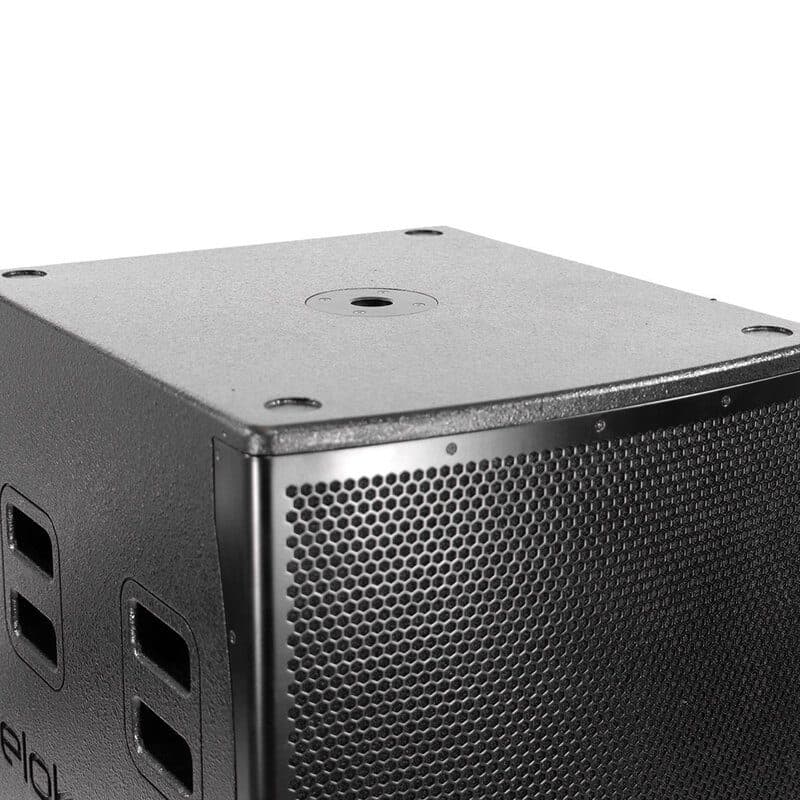

The 500 W Elokance ELO SUB18A mono MK2 active subwoofer is designed for professional live sound reinforcement applications. The unit features a long-throw 18" woofer driven by a 500 WRMS Class-D power amplifier. Integrated thermal and clip limiters protect the speaker and amplifier from overload. Externally, the cabinet features a steel grille and ergonomic handles for easy transportation. On the top side, a universal 35 mm thread allows for pole mounting of loudspeakers. In terms of connections, the subwoofer features a mono / stereo input on Combo XLR / jack and two XLR LINK or high-pass outputs at 100 Hz. The rear panel includes a knob to adjust the cut-off frequency between 80 and 180 Hz, a PHASE switch to invert the polarity of the signal (0 to 180°) and a volume control.

Technical characteristics

• Active subwoofer (amplified)
• 1 x 18" (46 cm) woofer
• Power: 500 W_RMS
• Class-D amplification
• Limiter and protection against short circuit and overheating
• LINK or high-pass output @ 100 Hz
• Frequency responce: 30 - 180 Hz (-10 dB)
• Crossover frequency for the sub adjustable from 80 Hz to 180 Hz
• Max. SPL: 132 dB
• Level adjustment
• XLR / 6.35 mm jack Combo inputs
• Ground / lift selector
• 0 / 180° phase selector for the subwoofer
• 35 mm universal header for speaker stand
• 2 side carry handles
• Granite paint finish
• Dimensions: 540 x 685 x 695 mm
• Weight: 43.5 kg
