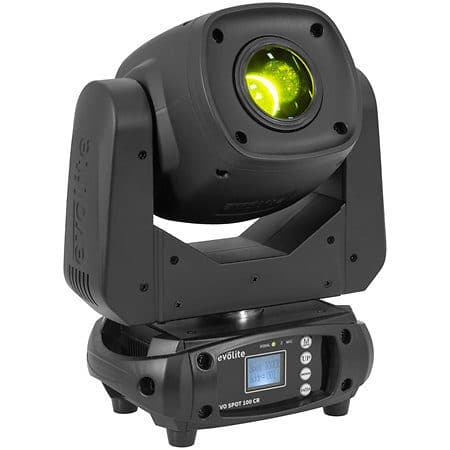

moving head spot LED 100W 13° Totem mode - EVOLITE MSC-EVOEVOSPOT100CR

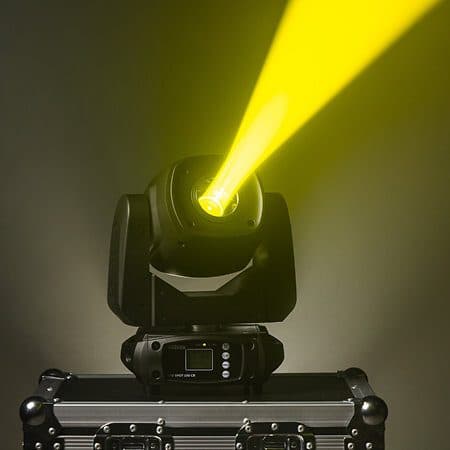

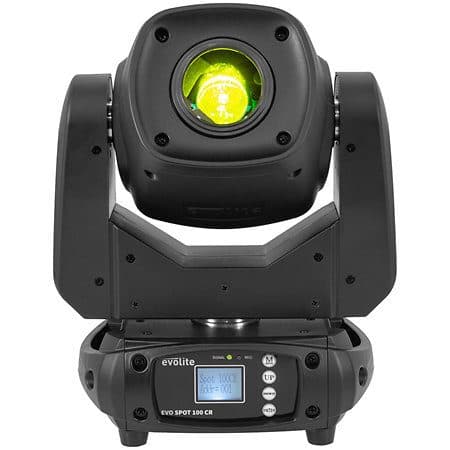

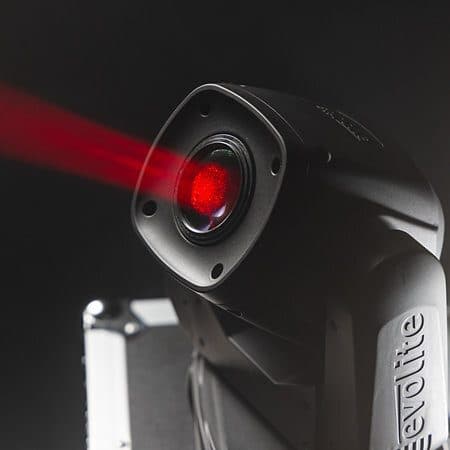

The Evo Spot 100-CR is a spotlight equipped with a 100 W white LED with a color temperature of 7500 K. It projects a sharp, 13° beam thanks to high-transparency optics and motorized focus. Pan and Tilt movements each offer three rotation ranges, while Totem mode keeps the beam aligned toward the audience even when the spotlight is mounted sideways. The color wheel includes 7 filters plus white, while the Gobo wheel features 6 interchangeable glass and metal patterns, ideal for alternating logos, textures, or volumetric effects. It also features a rotating three-facet prism. DMX control is available with 12 and 14 channels, but the spotlight can also operate in automatic or audio-sensing modes. Forced-air cooling keeps the noise level at just 55 dB, making it suitable for conferences and video shoots. Power is supplied via powerCON IN/OUT connectors, and the included omega brackets facilitate mounting on various types of structures. With a maximum consumption of 120 W and compact dimensions, the Evo Spot 100-CR is a versatile and precise solution for any type of professional application. Customer benefits Clear and powerful projection thanks to the 100 W white LED Totem mode keeps the beam aimed at the audience Color wheel with 7 filters + Gobo wheel with 6 interchangeable rotating patterns Three-sided rotating prism Forced-air cooling with a low noise level of 55 dB Low consumption (120 W max.) Compact dimensions Areas of use Services Fixed installations Live events

Technical characteristics

• LED spotlight from the Evolite Compact Range
• Equipped with a 100 W 7500 K white LED
• Luminous flux: 14,500 lux @ 2.5 m (beam diameter 53 cm)
• Beam angle: 13°
• Motorised focus

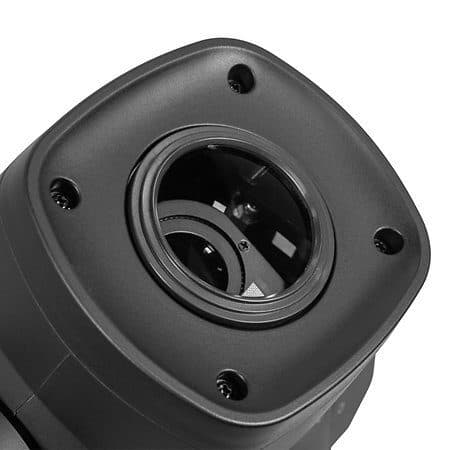

• Ultra-clear optics
• Pan rotation: 360° / 540° / 630°
• Tilt rotation: 90° / 180° / 270°
• Highly dynamic automatic modes with totem mode (1 direction)

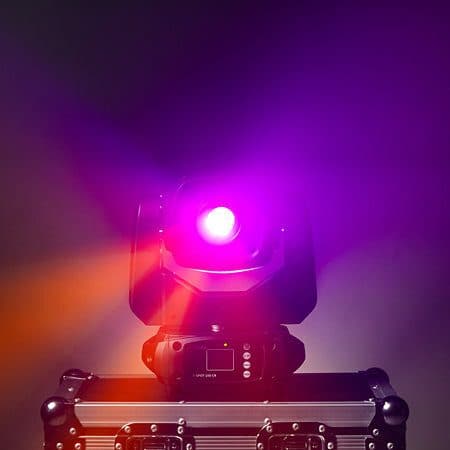

• Color wheel: 7 colors + white
• Gobo wheel: 6 interchangeable rotating gobos (2 glass + 4 metal)
• Glass gobo size: capsule diameter 20 mm; image diameter 13 mm
• Metal gobo size: capsule diameter 20 mm; image diameter 14 mm
• 3-facet prism with bidirectional rotation
• Control modes: DMX cable, automatic, sound detection, Master/Slave
• 2 DMX modes: 12 / 14 channels

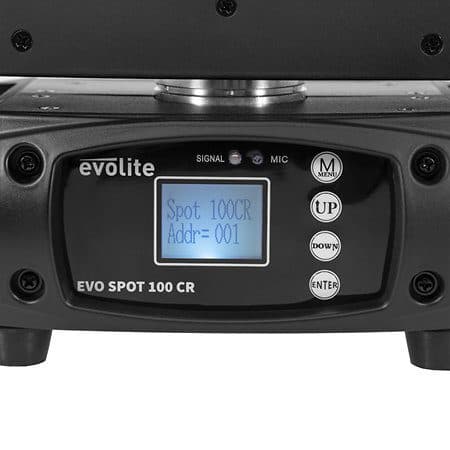

• 1.8" TFT color display
• Includes omega mounting brackets

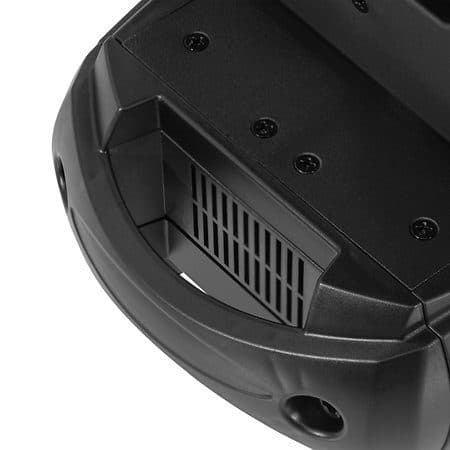

• Forced ventilation cooling
• Quiet operation: 55 dB
• Power consumption: 120 W max

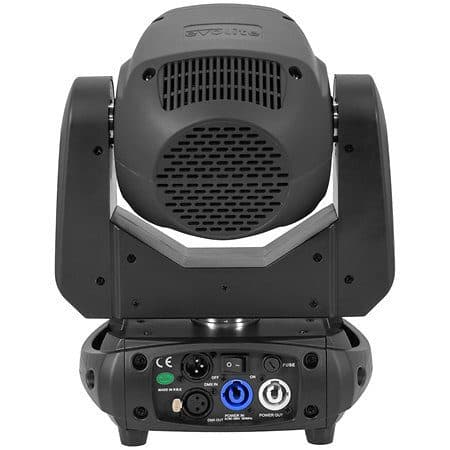

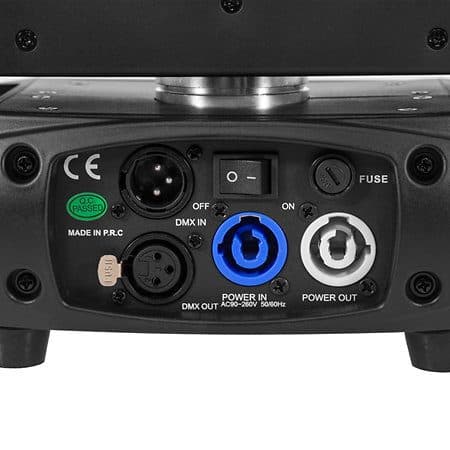

• Power supply: powerCON IN/OUT
• Unit dimensions: 25.9 x 15.7 x 31.2 cm
• Net weight: 6 kg
