5 pole right angle female cable connector, nickel housing, silver contacts
The RX Series is the right angle version of the XX cable connector series. The successor of the RC series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
- Extra slim right-angle connector

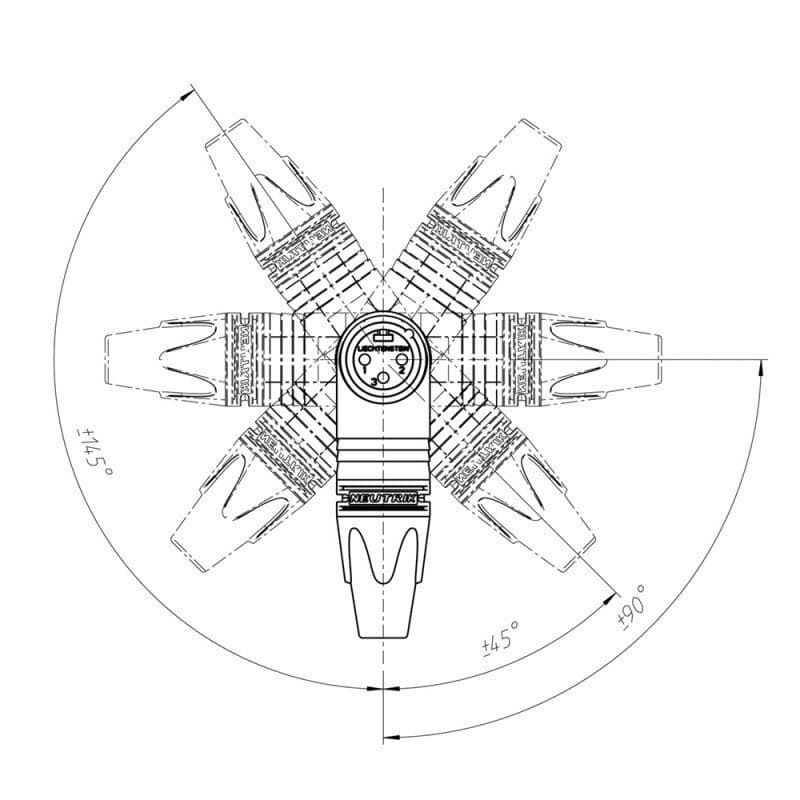

- 5 selectable cable outlet positions
- Unique cage design of female contact for low contact resistance and high integrity
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Female connector with improved solid metal latch which is larger and easier to handle
- Additional ground spring contacts for better shell ground continuity
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Branded with unique hologram - guarantees genuine and authentic Neutrik product
Product
- Title NC5FRX
- Connection Type XLR
- Gender female
Electrical
- Capacitance between contacts ≤ 7 pF
- Contact resistance ≤ 3 mohm
- Dielectric strength 1,5 kVDC
- Insulation resistance > 2 Gohm (initial)
- Rated current per contact 7,5 A
- Rated voltage < 50 V
Mechanical
- Cable O.D. 3.5 - 8.0 mm
- Insertion force ≤ 20 N
- Withdrawal force ≤ 20 N
- Lifetime > 1000 mating cycles
- Wiresize max. 1.0 mm2
- Wiresize max. 18 AWG
- Wiring Solder contacts
- Locking device Latch lock
Material
- Boot Polyurethan
- Contact plating 2 µm Ag
- Contacts Brass (CuZn39Pb3)
- Insert Polyamide (PA 6.6 30 % GR)
- Locking element Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
- Shell Zinc diecast (ZnAl4Cu1)
- Shell plating Nickel
- Strain relief Polyacetal (POM)
Environmental
- Flammability UL 94 HB
- Standard compliance IEC 61076-2-103
- Protection class IP 40
- Solderability Complies with IEC 68-2-20
- Temperature range -30 °C to +80 °C
