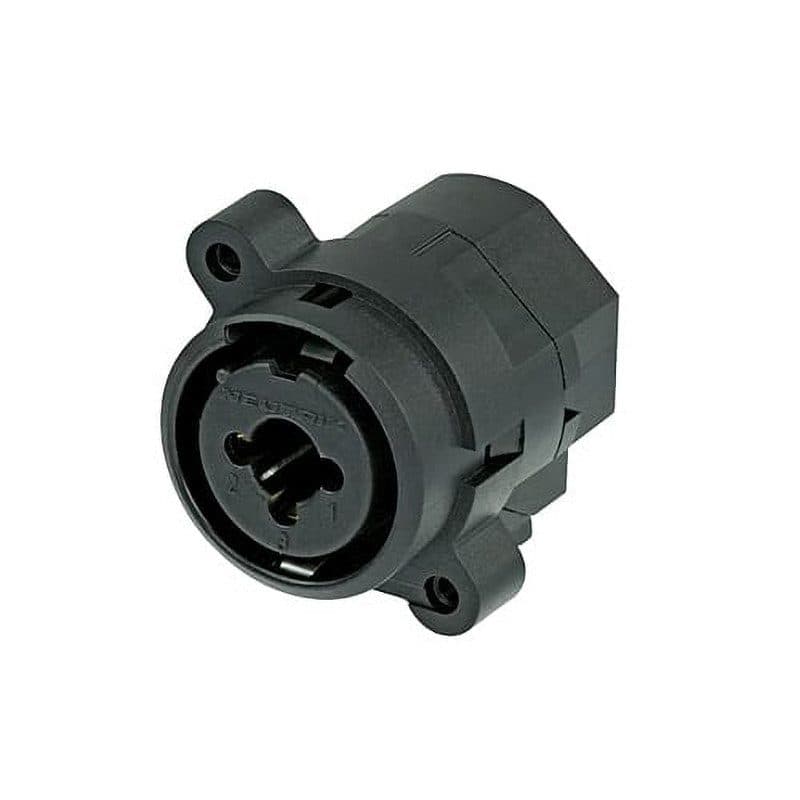

Hybrid panel connector XLR + Jack 1/4", ultra compact, PL mounting - NEUTRIK NEU-NCJ5FI-H-0

Electrical

• Contact resistance < 10 m ohm (XLR)
• Contact resistance < 20 m ohm (jack)
• Dielectric strength 1,5 kV_DC
• Insulation resistance > 2 Gohm (initial)
• Rated current per contact 7,5 A (XLR)
• Rated current per contact 7,5 A (Jack)
• Rated voltage < 50 V

Mechanical

• Insertion force ≤ 25 N
• Withdrawal force ≤ 25 N
• Lifetime > 1000 mating cycles
• Locking force > 20 N separating force
• Panel thickness max. 7 mm 0.27"
• Wiresize
• Mounting direction Rear mounting

Material

• Contact plating 0.2 µm Au hard alloy over 2 µm Ni
• Contacts Bronze (CuSn6)
• Insert PA66
• Locking element Steel Ck67

Environmental

• Flammability UL 94 V-0
• Temperature range -30 °C to +80 °C
