Panel-mount connector opticalCON QUAD 4 pole black IP65 - NEUTRIK NEU-NO4FDW-A

Chassis connector, black chromium plating, front panel mount, IP65 ingress protection in mated condition with SCDP-*. The chassis connector acts as a "feed-through" allowing simplified installations by connecting four conventional LCs on the rear. It is built in the standard D size shell and features an automatic sealing cover for maximum dust and dirt protection and a Push-Pull locking mechanism for safe connection.

Features & Benefits

• Rugged 4-channel Point-to-Point multichannel routing solution
• Laser protected metal shutter seals dust proof with two-component rubber gasket
• IP65 ingress protection in mated condition with SCDP-*

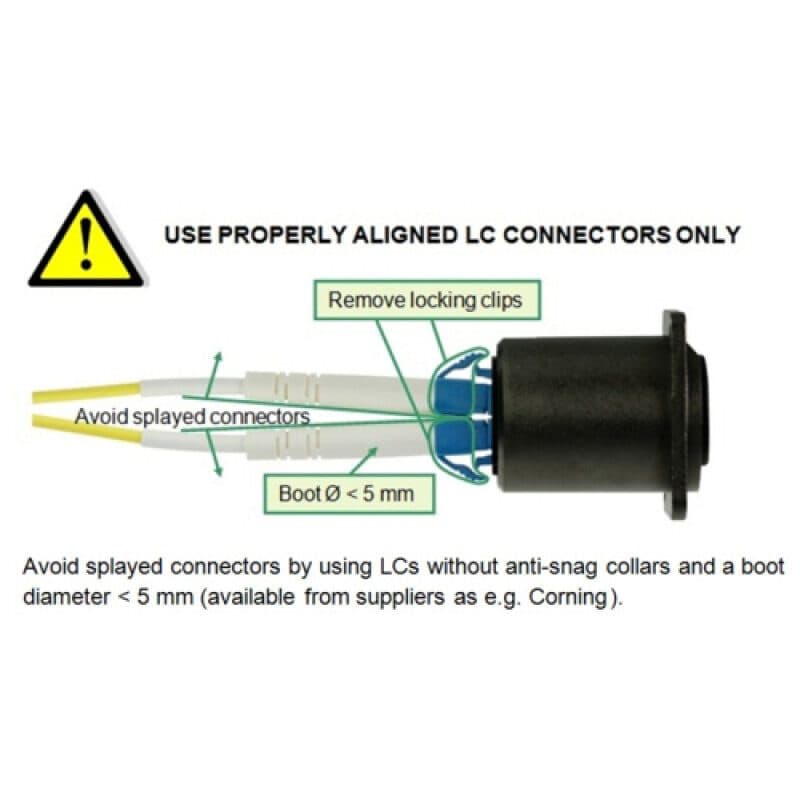

• Accommodates standard LC connectors on the rear for cost effective and simple installations
• Color coding with SCDP-* according to ANSI/TIA-568.3-D Standard: Multi mode – black, Single mode PC – blue, Single mode APC – green

Product

• Title NO4FDW-A
• Gender female

Mechanical

• Insertion force < 45 N
• Withdrawal force < 45 N
• Lifetime > 5000 mating cycles
• Wiresize
• Locking device Push-Pull
• Mounting direction Front mounting
• Chassis shape D

Material

• Insert Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
• Shell Zinc diecast (ZnAl4Cu1)
• Shell plating Black chromium

Environmental

• Flammability UL 94 HB
• Protection class IP 65
• Temperature range -40 °C to +75 °C

Optical

• Insertion loss < 0.5 dB / connection
