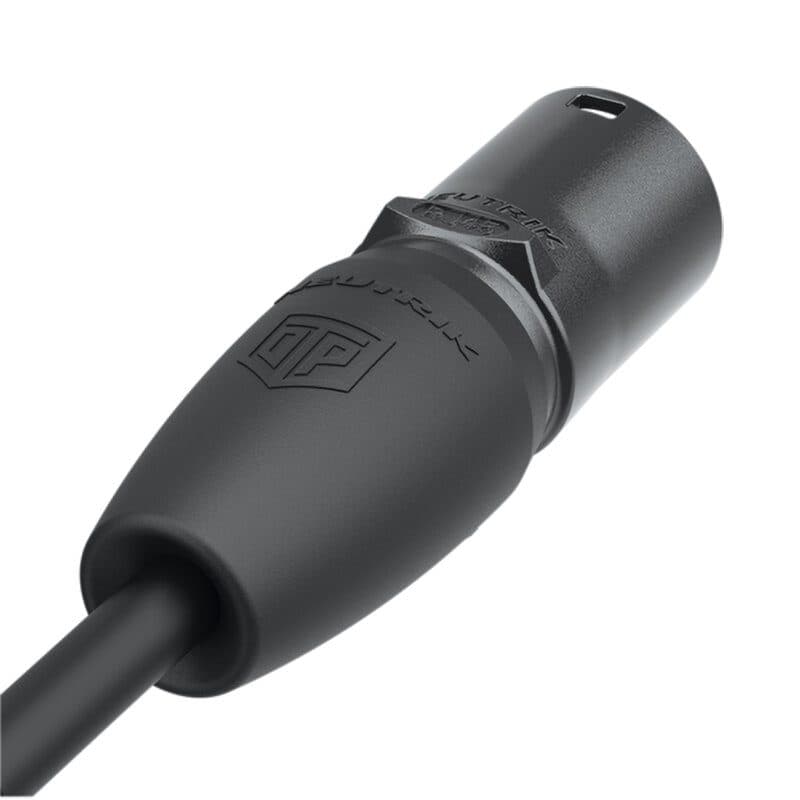

Flying RJ45 connector mount IP65 TOP cable gland 8-10mm - NEUTRIK NEU-NE8MX-B-TOP-14-D

Connector support for cable consisting of a black chromed shell, chuck and boot for non-pre-assembled cables with cable gland with a diameter between 8 and 10 mm. This connector carrier does not include RJ45 plug. IP65 protection rating and TOP approved in consideration to UL50E by mating with related cable or chassis connector of the XLR TOP range. Caution: Does not mate with NE8FDY-C6 and NE8FDY-C6-B chassis CAT6 connectors. Main features RJ45 system for harsh and demanding environments Cable connector carrier accepts the most common RJ45 connectors (list available) IP65 protection rating and TOP approval in consideration of UL50E Rugged diecast shell and unique chuck type strain relief Protects Ethernet connections in a variety of commercial applications and is designed to prevent breakage of the fragile components of standard RJ45 connectors Allows the assembly of non-pre-assembled RJ45 cables

Technical characteristics

Product

• Connection type: etherCON
• Gender: male
• Important: cable connectors do not include RJ45 plug. RJ45 cable assembly must be provided by end user!

Mechanical

• Cable O.D.: 8.0 – 10.0 mm 
• Insertion force:  ≤ 20 N 
• Withdrawal force: ≤ 20 N 
• Lifetime: > 1000 mating cycles 

Material

• Boot: thermoplastic elastomer (TPE)
• Insert: polyamide (PA66)
• Shell: zinc diecast (ZnAl4Cu1)
• Shell coating: black KTL
• Strain relief: polyacetal (POM)

Environmental

• Protection class: IP65 (mated) 
• Temperature range: -30 to 80 °C
