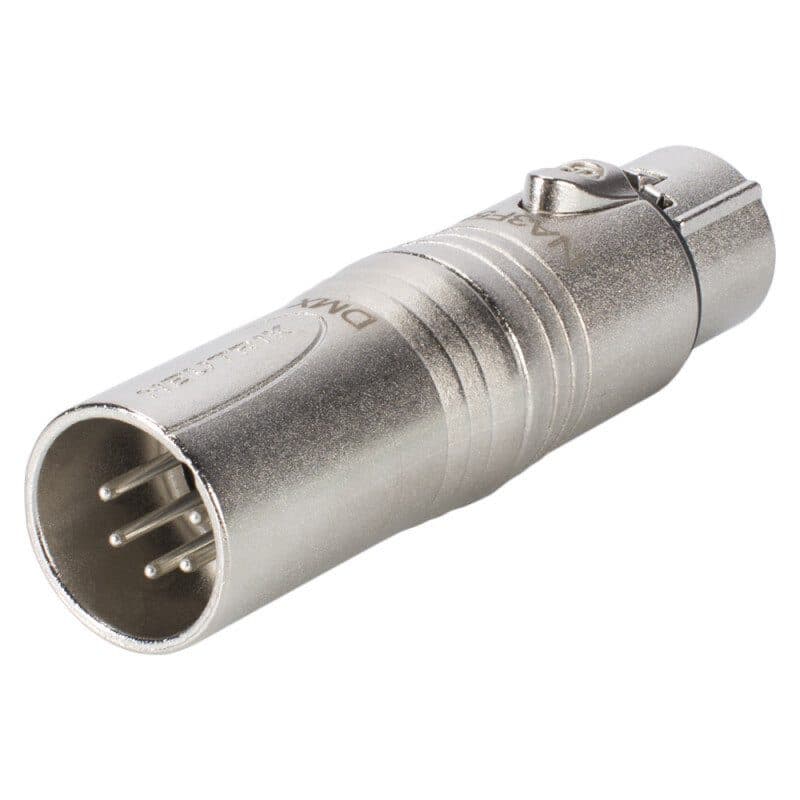

XLR 3-pin female / XLR 5-pin male DMX adapter - Neutrik NEU-NA3F5M

The Neutrik NA3F5M is a circular adapter from 3-pole female XLR to 5-pole male XLR for lighting and DMX use. It is pre-wired and ready to use, and helps bridge older 3-pole and newer 5-pole DMX interconnections. The layout stays compact thanks to XX Series design cues, while a rugged diecast shell supports dependable operation.

Specifications:

• Product title: NA3F5M
• Connection type: adapter
• Contact resistance: ≤ 3 mohm
• Dielectric strength: 1.5 kV DC
• Insulation resistance: > 2 Gohm
• Rated current per contact: 3 A
• Insertion force: < 20 N
• Withdrawal force: < 20 N
• Lifetime: > 1000 mating cycles
• Locking device: latch lock
• Contact plating: 2 µm Ag
• Contacts: bronze (CuSn6) (female)
• Insert: polyamide (PA 6.6 30 % GR)
• Shell: zinc diecast (ZnAl4Cu1)
• Shell plating: nickel
• Temperature range: -30 °C to +80 °C
