Adapter XLR 3-pin male / XLR 5-pin female DMX - Neutrik NEU-NA3M5F

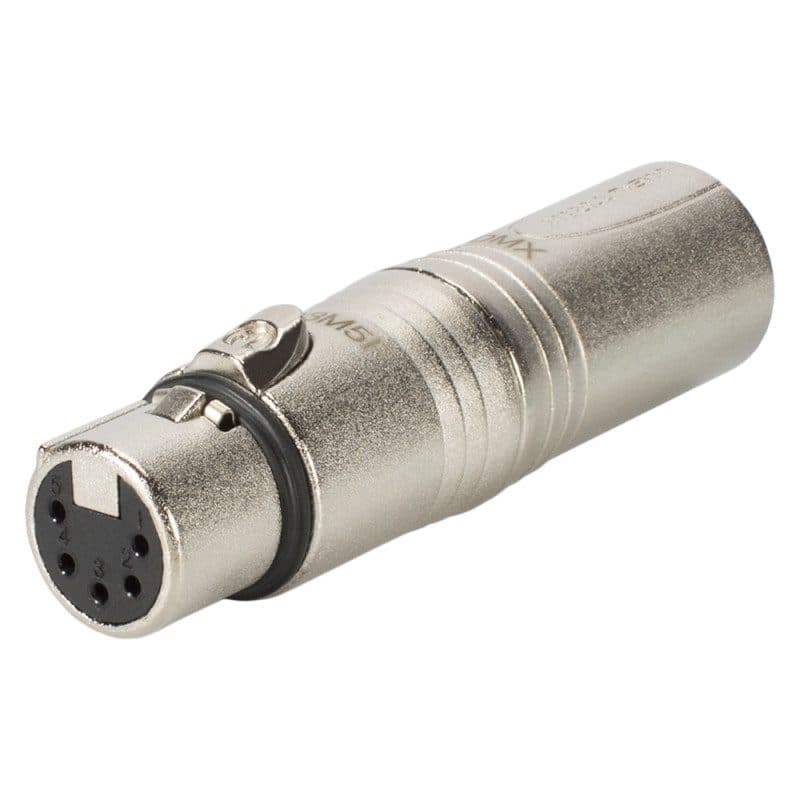

The Neutrik NA3M5F is a compact Circular Series adapter joining a 3-pole XLR male to a 5-pole XLR female, for lighting (DMX) applications. It solves interconnection problems between the old 3-pole and the new 5-pole DMX standard. It is versatile, pre-wired and ready to use, with a professional look and a compact, space-saving design based on the XX Series. The rugged diecast shell ensures the best reliability, and the locking device is a latch lock.

Electrically, contact resistance is below 3 mΩ, dielectric strength is 1.5 kV DC, insulation resistance exceeds 2 GΩ and the rated current per contact is 7.5 A. Mechanically, insertion and withdrawal forces are below 20 N and lifetime exceeds 1000 mating cycles.

Specifications:

• Product title: NA3M5F
• Connection type: adapter
• Application: lighting (DMX)
• Contact resistance: < 3 mΩ
• Dielectric strength: 1.5 kV DC
• Insulation resistance: > 2 GΩ
• Rated current per contact: 7.5 A
• Insertion force: < 20 N
• Withdrawal force: < 20 N
• Lifetime: > 1000 mating cycles
• Locking device: latch lock
• Contact plating: 2 µm Ag
• Contacts: brass (CuZn39Pb3)
• Insert: polyamide (PA 6.6 30 % GR)
• Shell: zinc diecast (ZnAl4Cu1)
• Shell plating: nickel
• Temperature range: -30 °C to +80 °C
