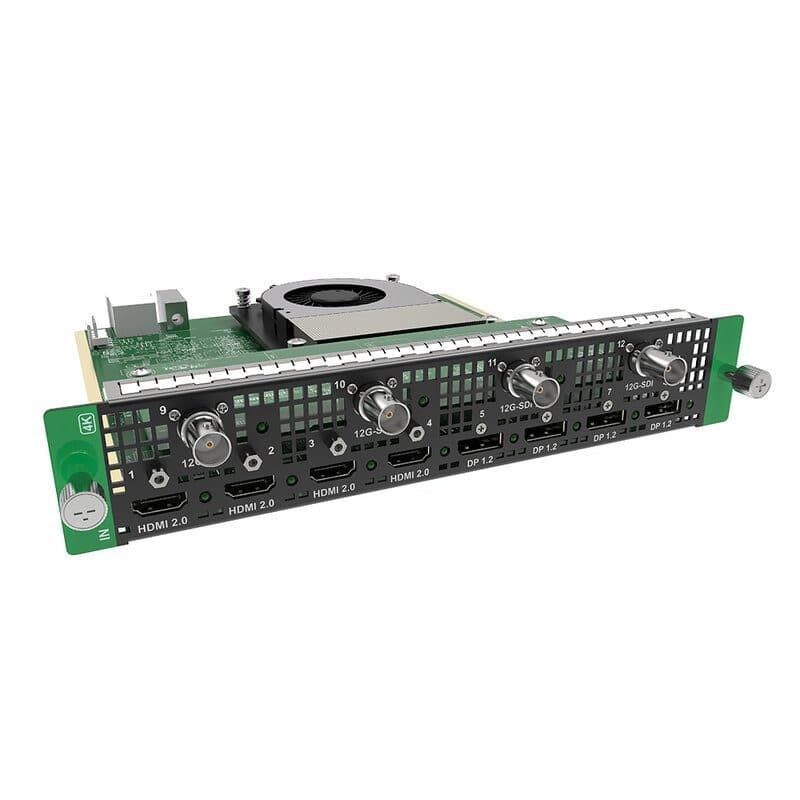

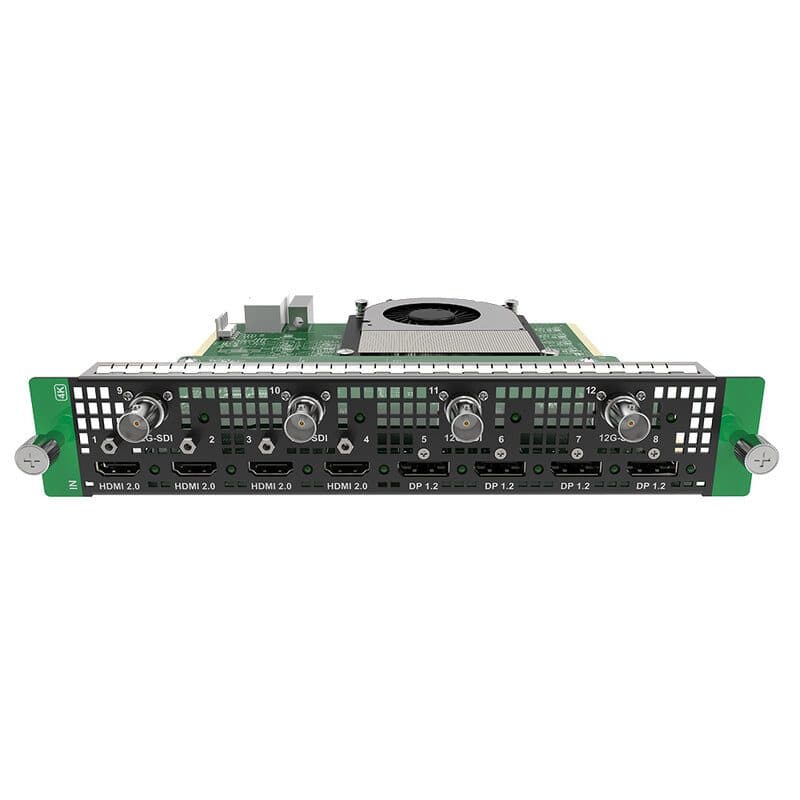

Input card Q8 HDMI 2.0, DP 1.2 and 12G-SDI - Pixelhue PIX-M04030126

This input card provides 4 x HDMI 2.0, 4 x DP 1.2 and 4 x 12G-SDI (8 x 4K x 2K concurrent inputs per input card).

Technical characteristics

• HDMI 2.0

• • up to 4K x 2K @ 60 Hz 10 bit 4:2:2 or 4K x 2K @ 60 Hz 8 bit 4:4:4
  • support for processing of 8-bit, 10-bit, 12-bit inputs
  • support for 4:2:0 and 4:4:4 inputs
  • support for processing of Full and Limited range videos
  • support for HDR video inputs
  • HDCP 1.4 and 2.2 compliant
  • support for deinterlacing processing
  • custom resolutions
  • max. width: 8192 pixels
  • max. width: 8192 pixels

• DP 1.2

• • up to 4K x 2K @ 60 Hz 10 bit 4:4:4 or 4K x 2K @ 60 Hz 8 bit 4:4:4
  • support for processing of 8-bit, 10-bit, 12-bit inputs
  • support for 4:2:2 and 4:4:4 inputs
  • support for processing of Full and Limited range videos
  • support for HDR video inputs
  • HDCP 1.4 and 2.2 compliant
  • support for deinterlacing processing
  • custom resolutions
  • max. width: 8192 pixels
  • max. width: 8192 pixels

• 12G-SDI
  • support for ST-2082 (12G), ST-2081 (6G), ST-424 (3G), ST-292 (HD)
  • compatible with SD-SDI, HD-SDI, 3G-SDI and 6G-SDI
  • support for interlaced signal outputs
  • No support for EDID management or bit depth settings
