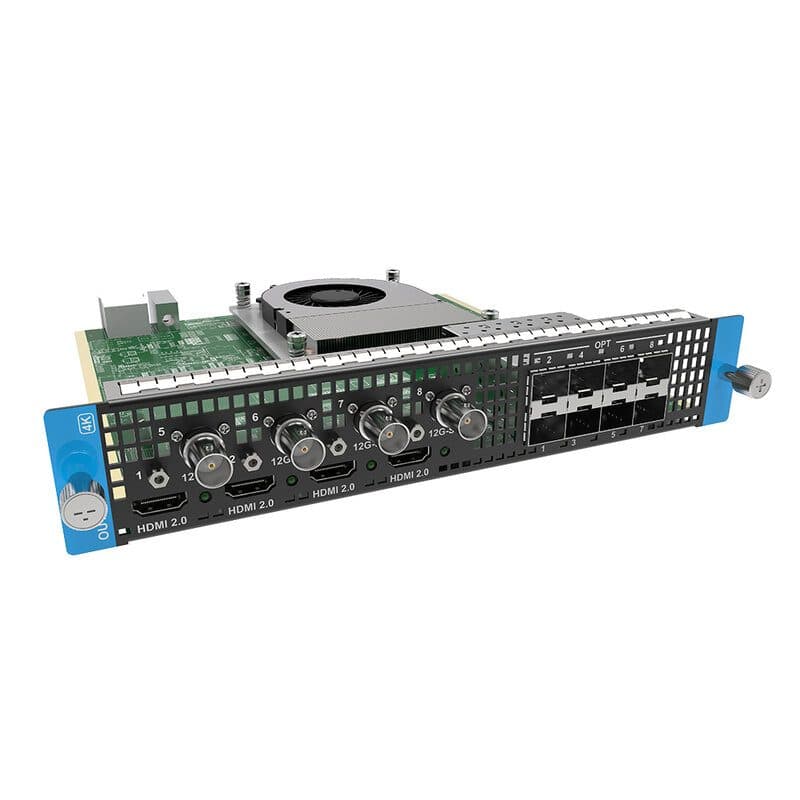

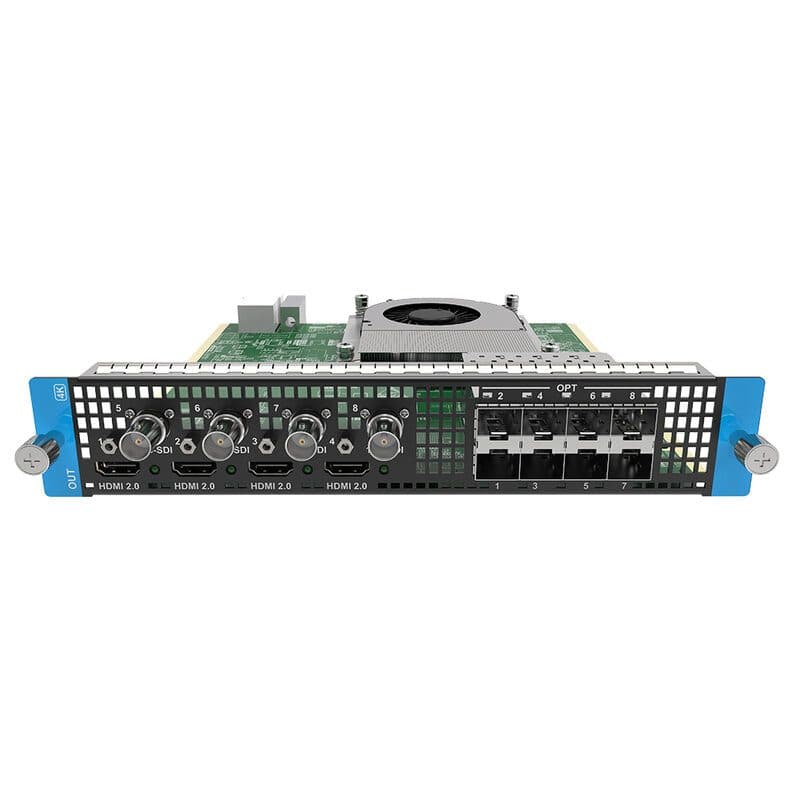

Output card Q8 HDMI 2.0 + 12G-SDI + 10G fibre - PIXELHUE PIX-M04030124

This output card provides 4 x HDMI 2.0, 4 x 12G-SDI, 8 x 10G optical. 4 HDMI 2.0 connectors and 4 12G-SDI connectors are divided into 4 groups. Each group includes 1 HDMI 2.0 connector and 1 12G-SDI connector. In each group, only 1 connector can be used for output at a time.

Technical characteristics

• Connector 1 (HDMI 2.0) and connector 5 (12G-SDI) are in a group
• Connector 2 (HDMI 2.0) and connector 6 (12G-SDI) are in a group
• Connector 3 (HDMI 2.0) and connector 7 (12G-SDI) are in a group
• Connector 4 (HDMI 2.0) and connector 8 (12G-SDI) are in a group
• 4 x HDMI 2.0

• • up to 4K x 2K @ 60 Hz 8 bit 4:4:4 output
  • support for 8-bit and 10-bit output settings
  • support for 4:2:2 and 4:4:4 output settings
  • support for YCbCr and RGB color space settings
  • no support for interlaced signal outputs
  • custom resolutions
  • max. width: 8192 pixels
  • max. width: 8192 pixels
• 4 x 12G-SDI
  • compatible with SD-SDI, HD-SDI, 3G-SDI and 6G-SDI
  • support for interlaced signal outputs
• 8 x 10G OPT
  • support for single-mode and multi-mode optical outputs
  • transmission distance up to 10 km in single mode
  • OPT ports copy outputs on video connectors
  • OPT 1 and OPT 2 copy the output on connector 1 or 5
  • OPT 3 and OPT 4 copy the output on connector 2 or 6
  • OPT 5 and OPT 6 copy the output on connector 3 or 7
  • OPT 7 and OPT 8 copy the output on connector 4 or 8
