Extender DVI-D over optical fibre 300m kit Tx/Rx WDM - PIXELHUE PIX-W01010008

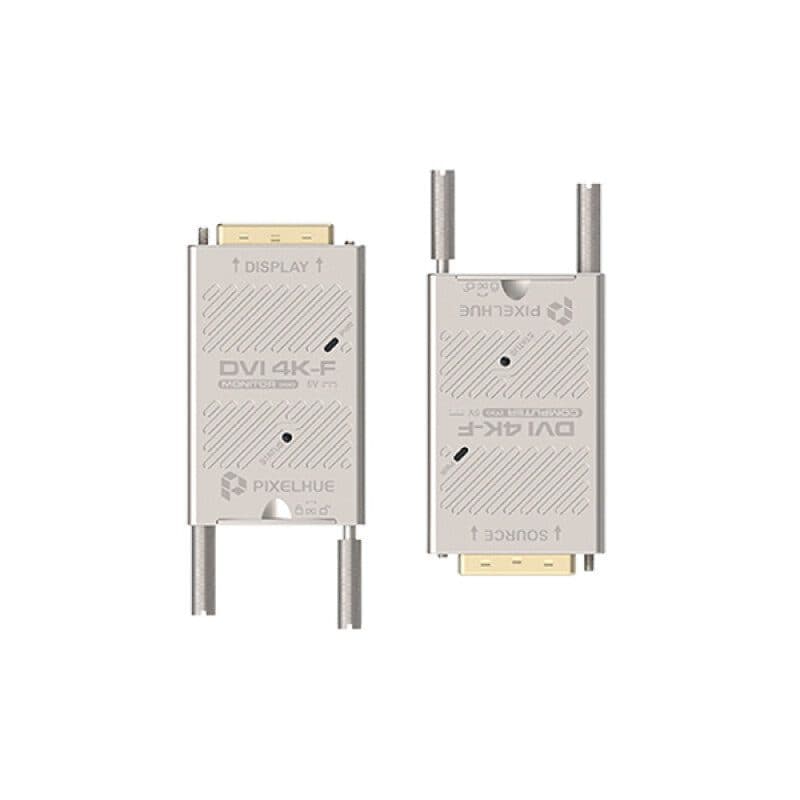

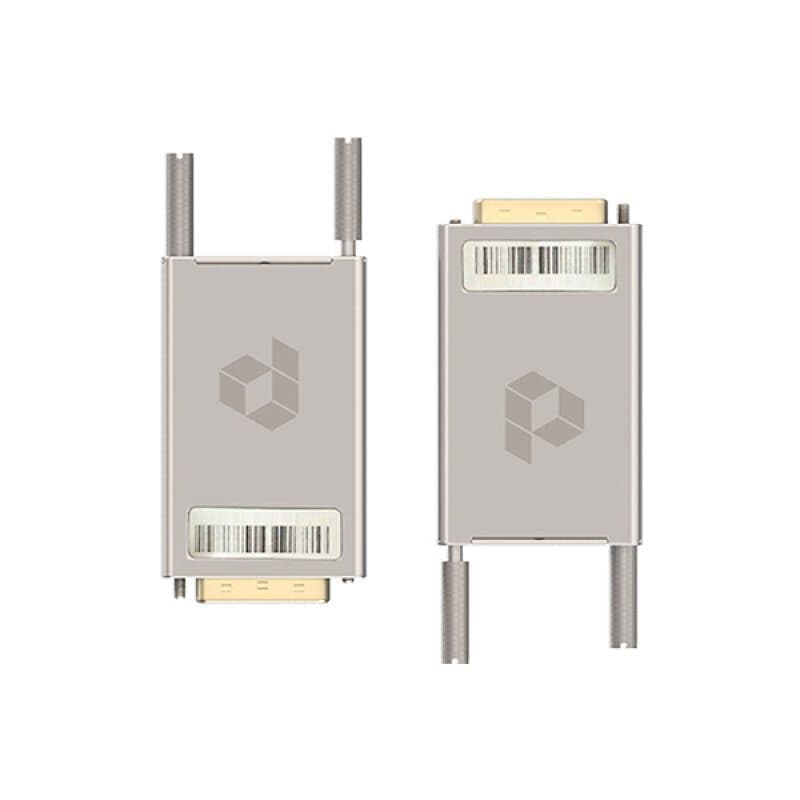

DVI4K-F fiber optic extender that includes a DVI4K-F transmitter (computer Tx, source) and a DVI4K-F receiver (monitor Rx, display). DVI-D (18+1) multimedia interface, 300 m high-speed extended 10G uncompressed video transmission (ITU-T. G652 / G.655 SMF single-mode, OM1 / 2 / 3 / 50 µm / 125 µm multi-mode).  The optical path adopts single-fiber bidirectional WDM optical wavelength division multiplexing technology to ensure the electrical isolation of the differential source and display terminal equipment, avoid the impact of noise with the grounding circuit, and no video signal frame delay.   User benefits No attenuation Strong interference rejection High stability Hot swap protection Long transmission distance No signal loss

Technical characteristics

Transmitter

Input signal:

• Interface type: DVI-D (18+1), DVI 1.0
• Signal type: DVI 1.0, HDMI 1.4a, up to 4096 x 2160 @ 30 Hz

Output signal:

• Interface type: LC
• Signal type: G.652 / G.655 / G.657 SMF and 50 µm / 125 µm, 62.5 µm / 125 µm OM multi-mode

Receiver

Input signal:

• Interface type: LC
• Signal type: G.652 / G.655 / G.657 SMF and 50 µm / 125 µm, 62.5 µm / 125 µm OM multi-mode

Output signal:

• Interface type: DVI-D (18+1), DVI 1.0
• Signal type: DVI 1.0, HDMI 1.4a, up to 4096 x 2160 @ 30 Hz

General features

• Transmission distance: 300 m
• Data rate: max. 3.4 Gbps
• Graphic data: 340 MB/s
• Optical rate: 11.5 GB/s
• Power supply: 5 V_DC 2 A
• Dimensions: 90 x 40 x 15 mm
