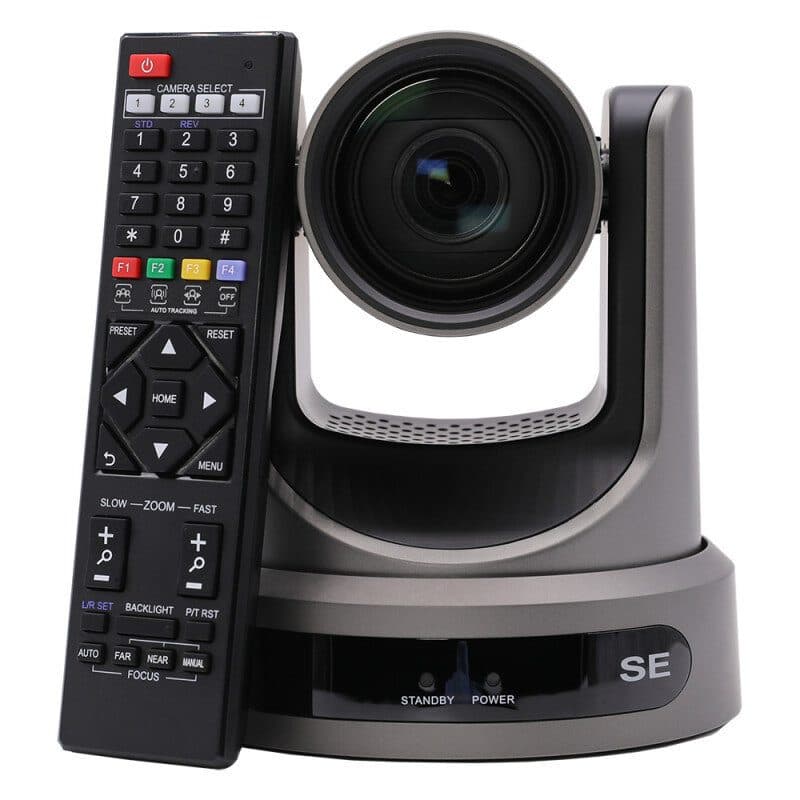

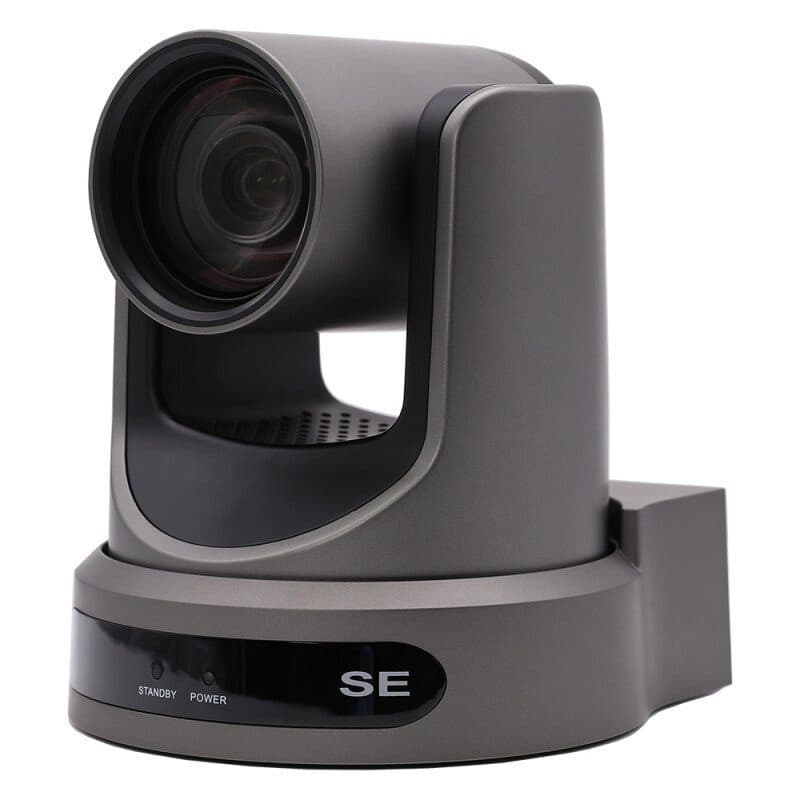

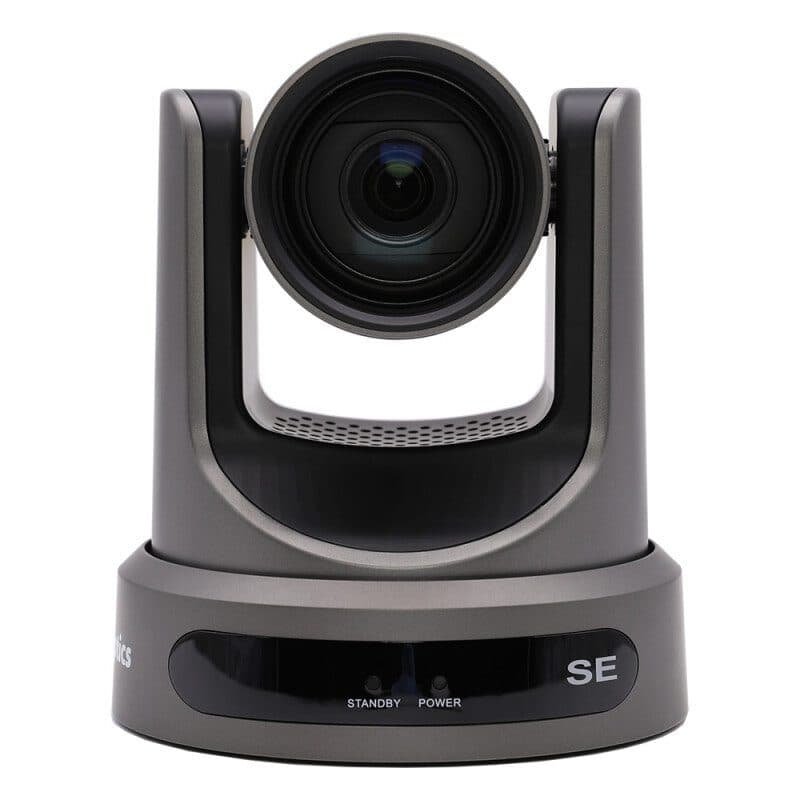

PTZ camera Move SE 12x full HD auto tracking grey - PTZOPTICS POP-PT12X-SE-GY-G3

PTZ camera equipped with a 1/2.8" CMOS sensor with a resolution of 2.07 Mpixel that can capture video up to 1080p at 60 fps. Its Sony CMOS sensor allows high performance in low light scenarios thanks also to the system of 3D noise reduction, while the bright 12x F1.8 - F2.6 optical zoom offers a horizontal field of view of 72.5°. There is also digital zoom up to 16x with image cropped to 128 x 72 pixels. A very important feature of PTZOptics Move SE 12X is the auto tracking functionality, which allows you to automatically follow the framed subject without the need for a camera operator. The exclusive Presenter Lock technology allows the camera to lock onto a specific person up to 60 m away, even if others are in the frame at the same time. Additionally, this built-in auto-tracking feature allows users to easily switch between presenters on stage with the click of a button.The updated PTZOptics Web UI provides everything you need in a simple menu system, including of course auto tracking management. Several output options, common to all Move SE models, including SDI, HDMI, USB and IP. The camera now includes NDI | Native HX3 that enables the distribution of broadcast video content through a low latency and stable frame rate IP infrastructure up to 4K resolution, for unprecedented performance and versatility. The update can be obtained by purchasing a specific license. The RJ45 interface supports PoE+. Users can control the Move SE PTZs using video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive or Tricaster, or by using a hardware joystick controller from the same brand.In addition, they can be controlled remotely from anywhere in the world using a variety of tools, including NDI Bridge and cloud-based software such as Zoom. Users can also live stream directly to CDNs (content delivery networks) such as Facebook and Youtube. It can also be remote controlled both via the remote controller supplied and the appropriate App. Several mounting options available and, last but not least, a 5-year warranty provided by the manufacturer.

Technical characteristics

Image sensor & lens

• Video sensor: 1/2.8", UHD Sony CMOS sensor, effective pixels 2.07 Mpixel
• Lens: f = 4.1 - 49.2 mm, F1.8 - F2.68
• Resolution and frame rate: 1080p-60/50/30/25/59.94/29.97, 720p-60/50
• Digital zoom: off (1920x1080), 2x (960x540), 3x (640x360), 4x, (480x270), 8x (240x135), 16x (128x72)
• Field of view: horizontal: 6.9° (tele) - 72.5° (wide), vertical: 3.9° (tele) - 44.8° (wide)
• Min. lux: 0.5 lx @ (F1.8, AGC ON)
• Shutter: 1/30 s - 1/10,000 s

Pan / Tilt movement

• Pan movement: ±170°
• Pan speed: 1.7° - 100°/s
• Tilt movement: +90° to -30°
• Tilt speed: 1.7° - 69.9°
• Presets: 255
• Video tracking supported
• Image flip, mirror and freeze supported

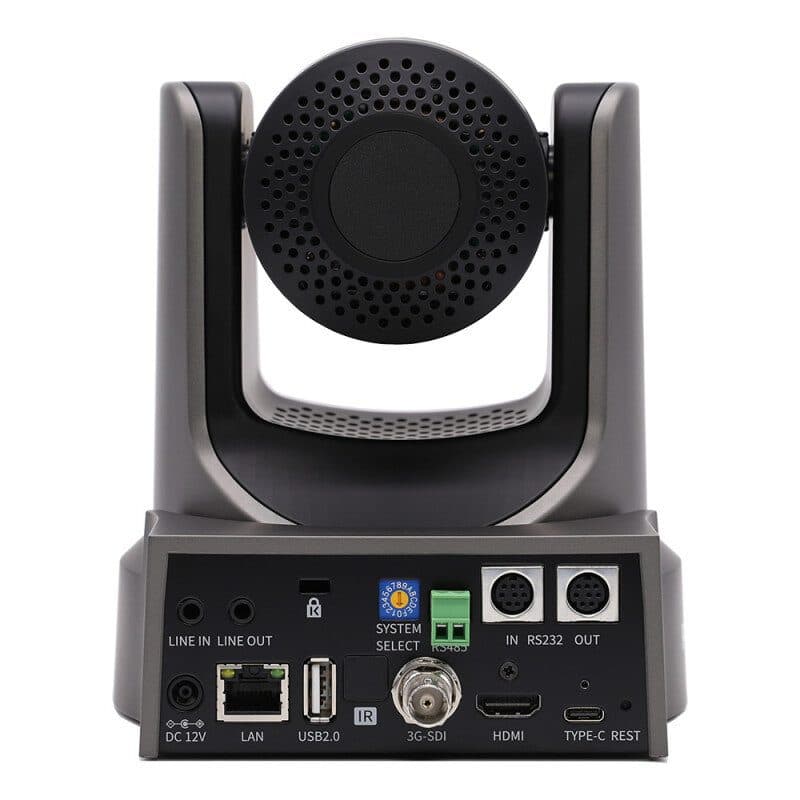

Rear board connectors

• HD video output:
  • 1 x RJ45: 10/100/1000M adaptive Ethernet port424M standard
  • 1 x HDMI version 1.3
  • 1 x USB 3.0 Type C
  • 1 x 3G-SDI: BNC type, 800 mV_p-p, 75 ohm, along to SMPTE 424M standard
• Audio interface: 1 x 3.5 mm line level input
• Communication interface:
  • 1 x 8 pin mini-DIN RS232 input, max. distance 30 m, protocol: VISCA / Pelco-D / Pelco-P
  • 1 x 8 pin mini-DIN RS232 output, max. distance 30 m, protocol: VISCA / Pelco-D / Pelco-P
  • 1 x 2 pin Phoenix port, RS485 input / output, max. distance 1200 m, protocol: VISCA / Pelco-D / Pelco-P
• Network interface RJ45: 10/100/1000M adaptive Ethernet port, supports PoE+ (802.3at)
• Power jack JEITA type (DC input 12 V)

Power options

• Power supply: 12 V_DC / PoE+ (802.3at)
• Input power: 2 A max.

Physical specifications

• Material: aluminum, plastic
• Color: grey
• Working environment: indoor
• Operating temperature: -10 to 40 °C
• Storage temperature: -40 to 60 °C
• Dimensions: 142 x 169 x 164 mm (W x D x H)
• Weight: 1.445 kg
