PTZ Move 4K camera 20x auto tracking white - PTZOPTICS POP-PT20X-4K-WH-G3

The white PTZOptics Move 4K 20X is a high-end PTZ camera with a 1/1.8" CMOS sensor rated at 8.42 Mpixel, capturing video up to 4K UHD at 60 fps or 1080p at 60 fps over SDI. Its Sony CMOS sensor supports strong low-light performance together with 3D noise reduction, while the bright 20x optical zoom (F1.58 ~ F3.95) delivers a 60.7° horizontal field of view. Digital zoom runs up to 16x with the image cropped to 256 x 144 pixels.

Auto tracking is a core Move 4K 20X feature, following the framed subject without a camera operator. Presenter Lock locks onto one person up to 76 m away even when others appear in frame; built-in auto tracking also lets users switch between on-stage presenters with a button click. The updated PTZOptics Web UI collects settings in a menu structure, including auto tracking management.

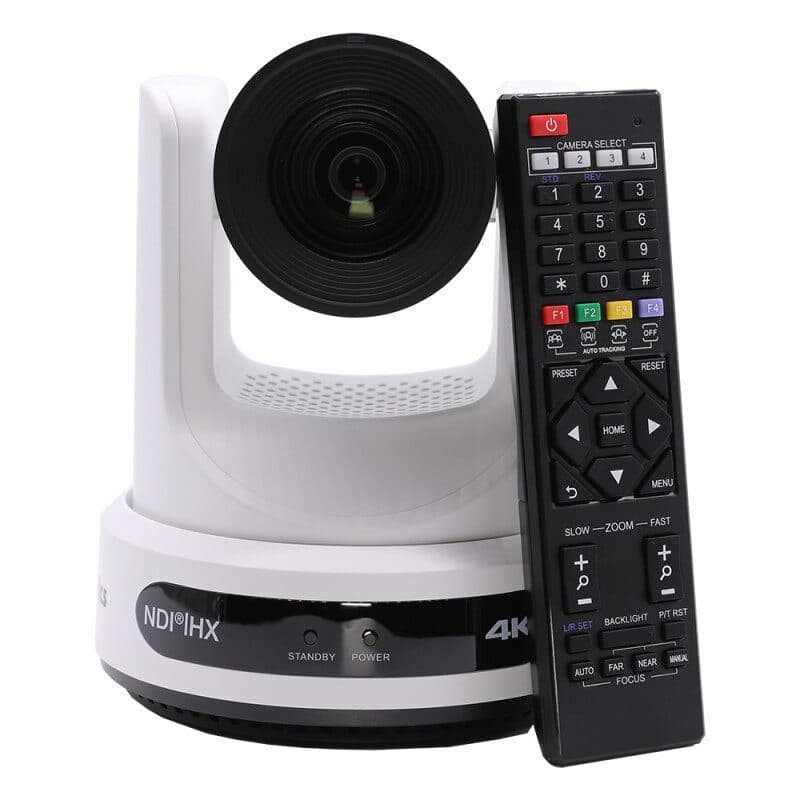

Output options—SDI, HDMI, USB, and IP—match other Move 4K models. Native NDI | HX3 distributes broadcast video over low-latency IP with stable frame rates up to 4K resolution. The RJ45 interface supports PoE+. Move 4K PTZs are controlled via OBS, Livestream Studio, Wirecast, vMix, mimoLive, Tricaster, or a PTZOptics hardware joystick controller, with seamless integration to Blackmagic switchers. Remote control from anywhere uses NDI, Zoom, and other cloud-based tools; live streaming direct to CDNs such as Facebook and Youtube is supported. Operation is also available through the supplied remote controller and the dedicated App. A Tally light is included. Voice-Tracking, currently in beta testing, uses beamforming algorithms to detect and follow the speaker’s voice, automatically panning, tilting, and zooming on the subject regardless of room position. Several mounting options are available.

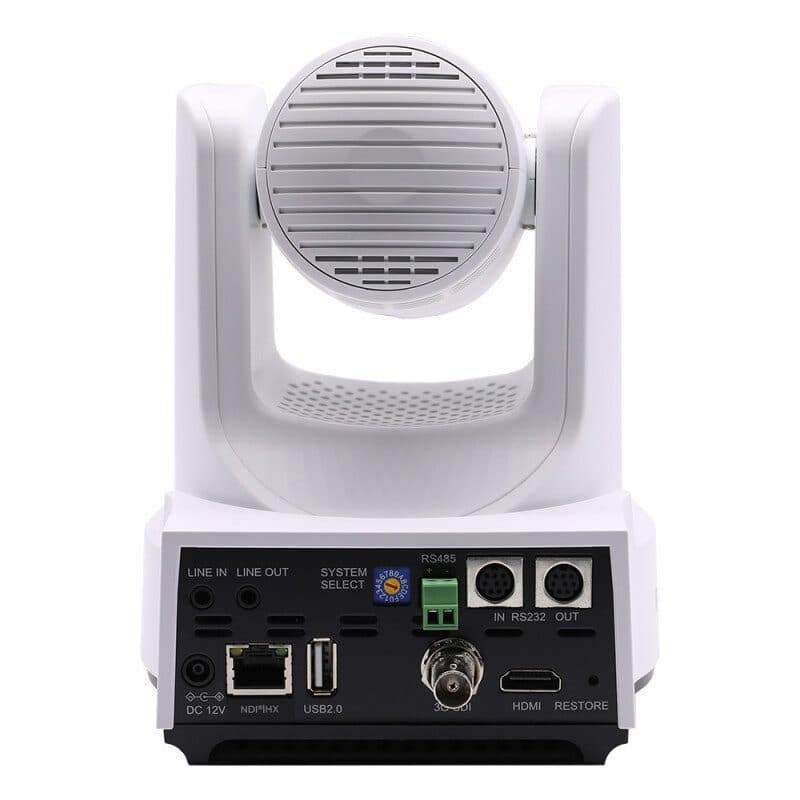

The rear board covers image sensor and lens functions, pan/tilt movement, supported video tracking, and image flip, mirror, and freeze: 1 x HDMI version 2.0, 1 x USB 2.0 type A, 1 x 2 pin Phoenix port for RS485 input/output (max. distance 1200 m, protocols VISCA / Pelco-D / Pelco-P), JEITA-type power jack (DC input 12 V), plus the power options and physical data listed below.
