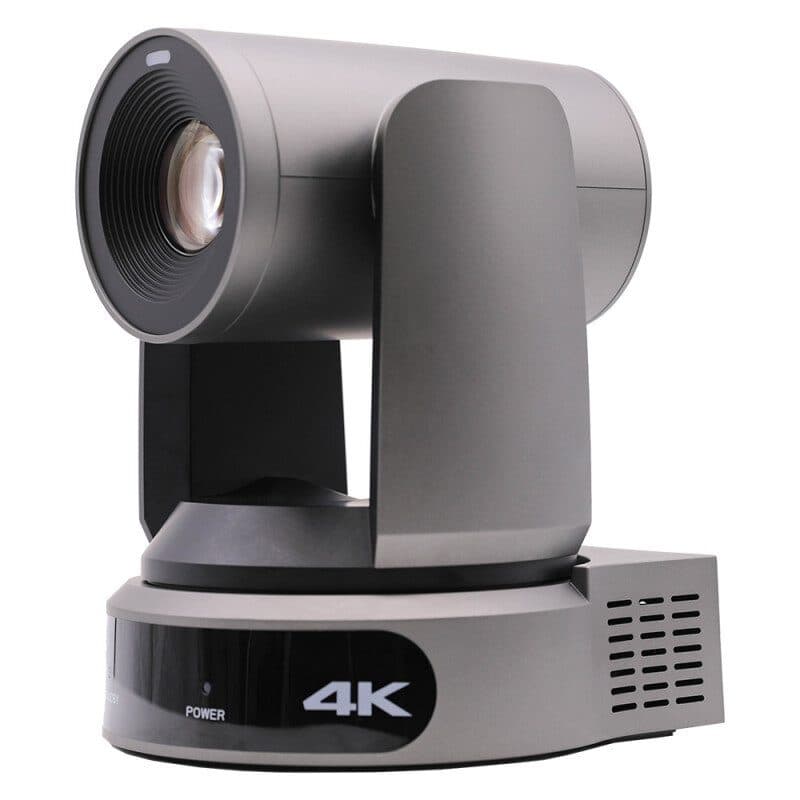

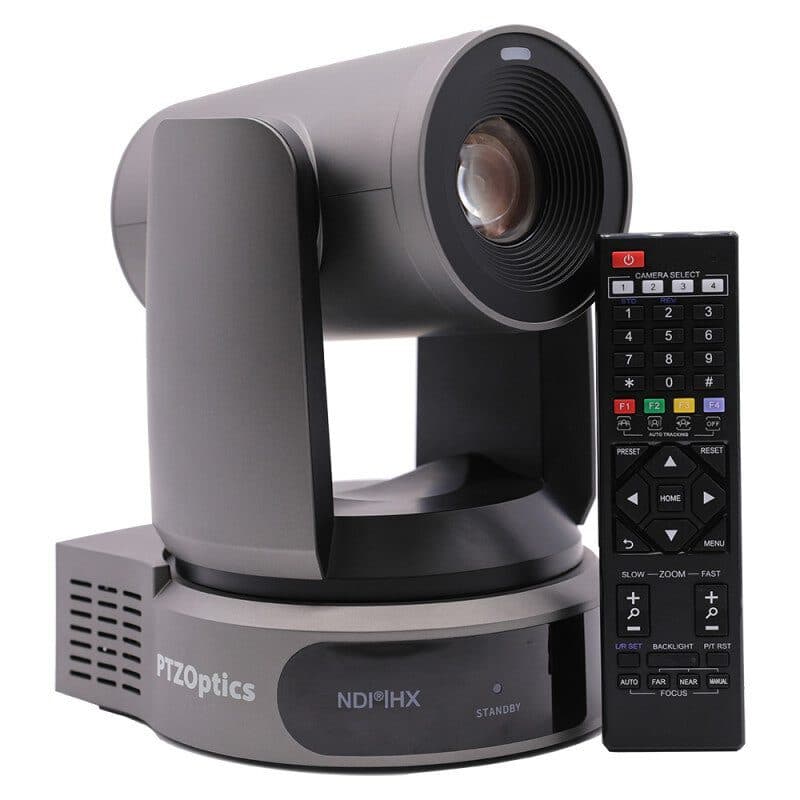

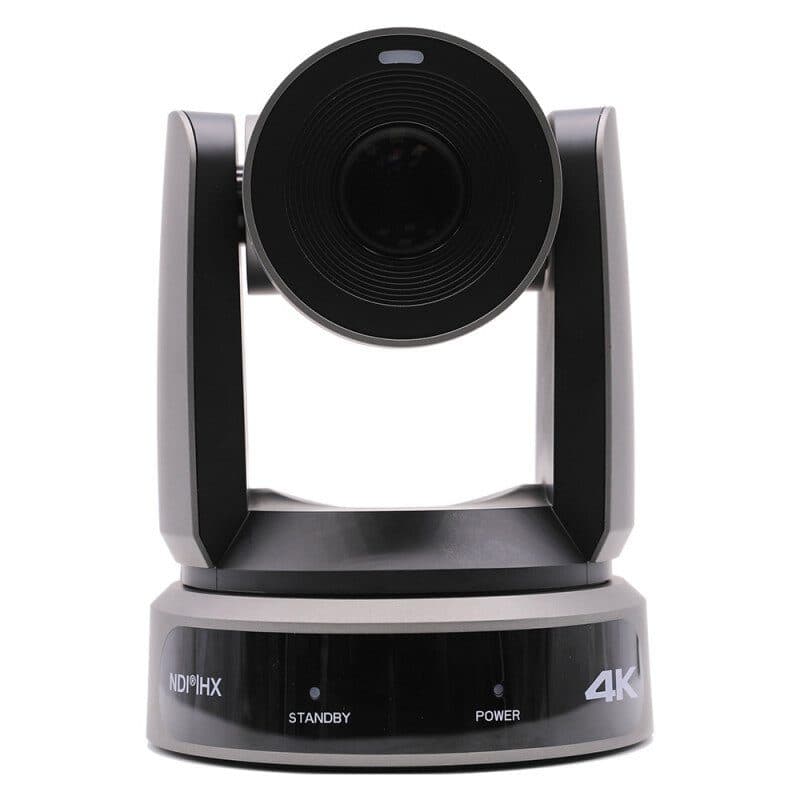

PTZ Move 4K 30x auto tracking camera grey - PTZOPTICS POP-PT30X-4K-GY-G3

High quality PTZ camera equipped with a 1/1,8" CMOS sensor with a resolution of 8.42 Mpixel that can capture video up to 4K UHD at 60 fps or 1080p at 60 fps over SDI. Its Sony CMOS sensor enables high performance in low-light scenarios thanks also to the 3D noise reduction system, while the bright 30× F1.61 - F5.19 optical zoom offers a horizontal field of view of 59.2°. Also digital zoom up to 16x is present, with image cropped to 256 × 144 pixels. A very important feature of PTZOptics Move 4K 30X is the auto tracking functionality, which allows you to automatically follow the framed subject without the need for an operator. The unique Presenter Lock technology allows the camera to lock onto a specific person up to 91 m away, even if others are in the frame at the same time. Additionally, this built-in auto-tracking feature allows users to easily switch between presenters to another on stage with the click of a button.The updated PTZOptics Web UI provides everything you need in a simple menu system, including of course auto tracking management. Several output options, common to all Move 4K models, including SDI, HDMI, USB and IP. The camera is also equipped with NDI | Native HX3 that allows the distribution of broadcast video content through a low latency IP infrastructure and stable frame rate up to 4K resolution, for unprecedented performance and versatility. The RJ45 interface supports PoE+. Users can control Move 4K PTZs using video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive or Tricaster, or by using a hardware joystick controller from the same brand. There is also seamless integration with Blackmagic switchers.In addition, they can be controlled remotely from anywhere in the world using a variety of tools, including NDI and cloud-based software such as Zoom. Users can also live stream directly to CDNs (content delivery networks) such as Facebook and Youtube. It can also be remote controlled both via the remote controller supplied and the dedicate App. The Tally light is also present. Available the Voice-Tracking function, now in beta testing, that uses beamforming algorithms to detect and follow the speaker's voice, automatically panning, tilting, and zooming around the subject regardless of their position in the room. Several mounting options available and, last but not least, a 5-year warranty provided by the manufacturer.

Technical characteristics

Image sensor & lens

• Video sensor: 1/1.8", Sony CMOS sensor, effective pixels: 8.42 M
• Lens: f = 7.1 - 210 mm, F1.61 - F5.19 (32 - 825 mm, 35 mm equivalent)
• Resolution and frame rate:
  • HDMI: 3840 × 2160p 60/59.94/50/30/29.97/25, 1920 × 1080p 60/59.94/50/30/29.97/25, 1920 × 1080i 60/59.94/50, 1280 × 720p 60/59.94
  • SDI: 1920 ×1080p 60/59.94/50/30/29.97/25,1920 × 1080i 60/59.94/50, 1280 × 720p 60/59.94
• Digital zoom: off (3840 × 2160), 2× (1920 × 1080), 3× (1280 × 720), 4× (960 × 540), 8× (480 × 270), 16× (256 × 144)
• Field of view: horizontal: 2.5° (tele) - 59.2° (wide), vertical: 1.4° (tele) - 34.6° (wide)
• Min. lux: 0.5 lx @ (F1.8, AGC ON)
• Shutter: 1/30 s - 1/10,000 s

Pan/Tilt movement

• Pan movement: ±170°
• Pan speed: 1.7° - 100°/s
• Tilt movement: +90° to -30°
• Tilt speed: 1.7° - 69.9°
• Presets: 255
• Video tracking supported
• Image flip, mirror and freeze supported

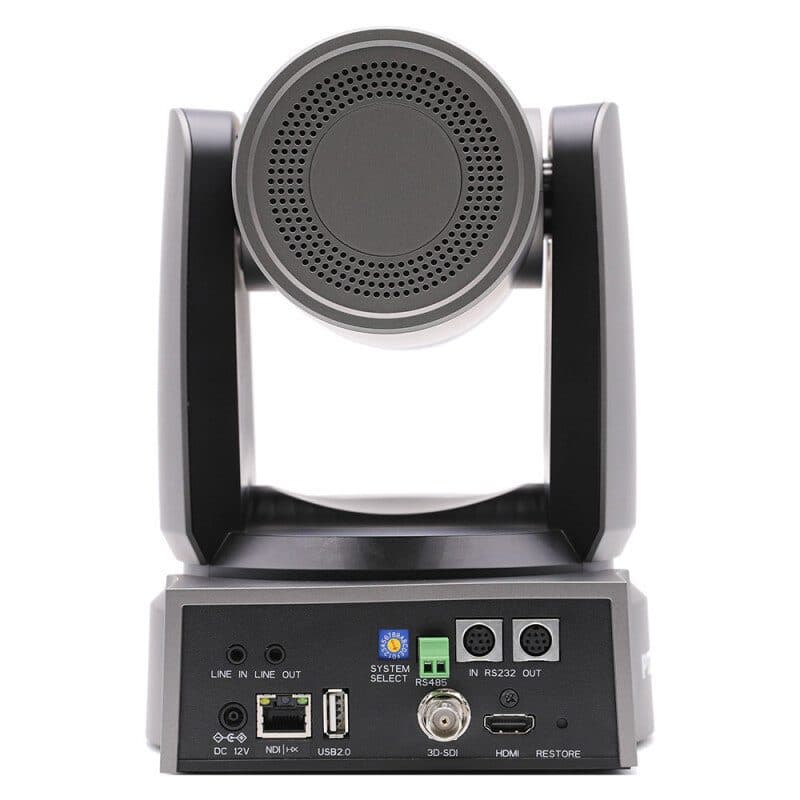

Rear board connectors

• HD video output:
  • 1 × RJ45: 10/100/1000M adaptive Ethernet port424M standard
  • 1 × HDMI version 2.0
  • 1 × USB 2.0 type A
  • 1 × 3G-SDI: BNC type, 800 mV_p-p, 75 ohm, along to SMPTE 424M standard
• Audio interface: 1 × 3.5 mm line level input
• Communication interface:
  • 1 × 8 pin mini-DIN RS232 input, max. distance 30 m, protocol: VISCA / Pelco-D / Pelco-P
  • 1 × 8 pin mini-DIN RS232 output, max. distance 30 m, protocol: VISCA / Pelco-D / Pelco-P
  • 1 × 2 pin Phoenix port, RS485 input / output, max. distance 1200 m, protocol: VISCA / Pelco-D / Pelco-P
• Network interface RJ45: 10/100/1000M adaptive Ethernet port, supports PoE+ (802.3at)
• Power jack JEITA type (DC input 12 V)

Power options

• Power supply: 12 V_DC / PoE+ (802.3at)
• Input power: 18 W (max.)

Physical specifications

• Material: aluminum, plastic
• Working environment: indoor
• Operating temperature: -10 °C to 40 °C
• Storage temperature: -40 °C to 60 °C
• Color: grey
• Dimensions (W × D × H): 17 × 18.1 × 22.8 mm
• Weight: 2 kg
