4 handheld UHF wireless microphone system, 4ch receiver 500-700MHz - RONDSON RON-02593

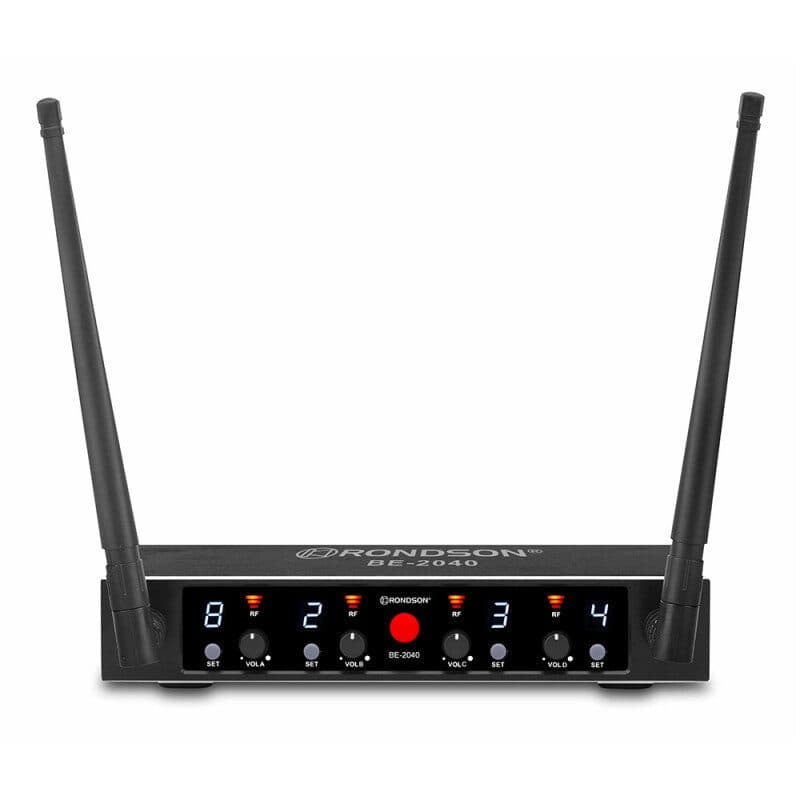

UHF wireless microphone system with 4 handheld transmitters and a four-channel UHF receiver. Selectable frequency from 500 to 700 MHz. Automatic reception and anti-interference system for simultaneous operation of several devices. With a power of 10 mW, the transmitters allow a range of about 50 m. The UHF receiver features selectable PLL frequency synthesis receiver modules and infrared "sync" function to transmit the frequency to the transmitters. The display of the functions for all devices takes place on the LCD screen. The 4 outputs are male XLR and female 6.35 mm jack. A jack cable for mix output is supplied. Ideal for professional audio or speech applications, speeches, animations.

Technical characteristics

• Reception method: 4 channels
• System: synthesized PLL
• Frequency stability: ±10 ppm
• Image interferes rate: > 50 dB
• S/N ratio: > 90 dB
• Sensitivity: - 80 dBuV
• Harmonic distortion: < 0.5%
• Frequency response: 50 – 15,000 Hz
• Output impedance: 600 ohm
• Audio output level: 400 mV, balanced / unbalanced
• Display: LCD
• Audio output jack: 2 XLR balanced, 1 jack unbalanced
• Antenna sockets: 2 x BNC in front panel
• Power supply: 12 V_DC - 1000 mA
• Dimensions (W x D x H): 21 x 15 x 4 cm (not rackable)
• Weight: 3.5 kg
• Consumption: < 10 W
• Handheld microphone: BE-2040MIC
• Batteries: 2 x AA / 1.5 V (delivered)
