UHF 8-channel wireless microphone system 8 handheld 19" rack - RONDSON RON-02830

This Rondson BE-1080 wireless microphone system is a professional UHF solution designed for vocal applications, stage performances and other professional audio uses. It consists of 8 handheld transmitters and an 8-channel receiver with automatic PLL frequency synthesis reception system, which guarantees optimal reception and frequency stability of less than ±10 ppm, and an infrared synchronization function between transmitters and receiver. The system includes a double LCD display on the receiver for viewing all information and an anti-interference system that allows the simultaneous use of multiple sets, with a maximum range of 50 meters. FM modulation ensures a deviation of 22 kHz, while the transmission power is less than 10 mW. Each microphone is powered by two AA batteries, offering an autonomy of approximately 5 hours of continuous use.  The receiver is in standard 19" rack format and has 8 balanced XLR outputs + an unbalanced jack for the mixed signal. There are also 4 BNC connectors for connecting as many antennas.

Technical characteristics

BE-1080 receiver

• Frequency range: 607.1 to 687.1 MHz
• Synthesized PLL
• Frequency stability: < +10 ppm
• Image interference rate: > 50 dB
• SNR: > 70 dB
• Sensitivity: - 80 dBuV
• Total harmonic distortion: < 0.5%
• Bandwidth: 80 Hz – 15 kHz (± 3 dB)

Output

• Impedance: 600 ohm
• Audio output level: 400 mV, balanced / unbalanced
• Display: LCD

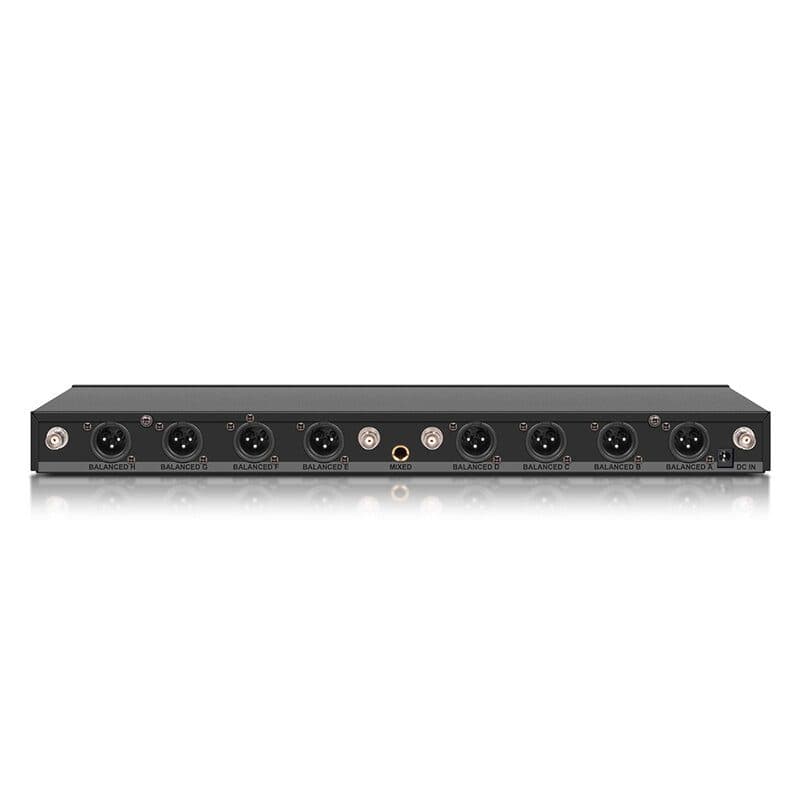

• Audio output: 8 balanced XLR, 1 unbalanced jack
• Antenna socket: 4 x BNC

Power

• Power supply: 12 V_DC - 1000 mA
• Consumption: < 5 W

Dimensions and weight

• Dimensions (W x H x D): 48 x 4.6 x 18.5 cm
• Rack-mountable: brackets Included
• Total weight (receiver + handheld microphones): 2.75 kg

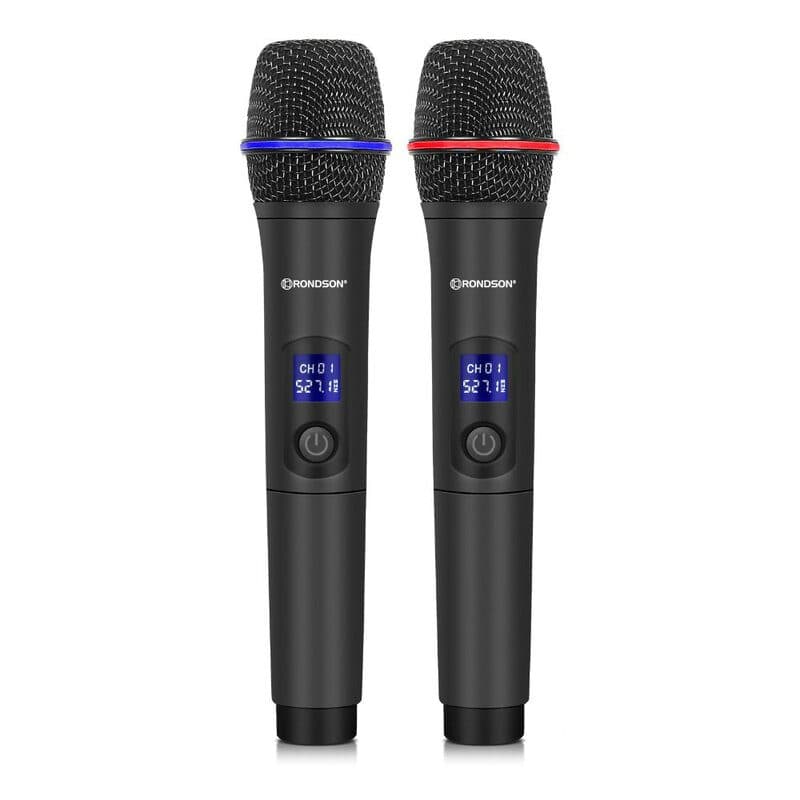

BE-1080MIC handheld microphone

• Integrated LCD display
• Batteries: 2 x AA / 1.5 V (included)
