4-zone 120W DSP 70/100V mixer amplifier - RONDSON RON-02369

The RONDSON RON-02369 combines mixing and amplification across four zones, with DSP processing and 120 W output. It feeds 70 V and 100 V constant-voltage runs as well as low-impedance loads at 6 or 8 ohm. Mains operation covers 115 - 230 VAC 50 Hz, or the unit can run on 24 VDC.

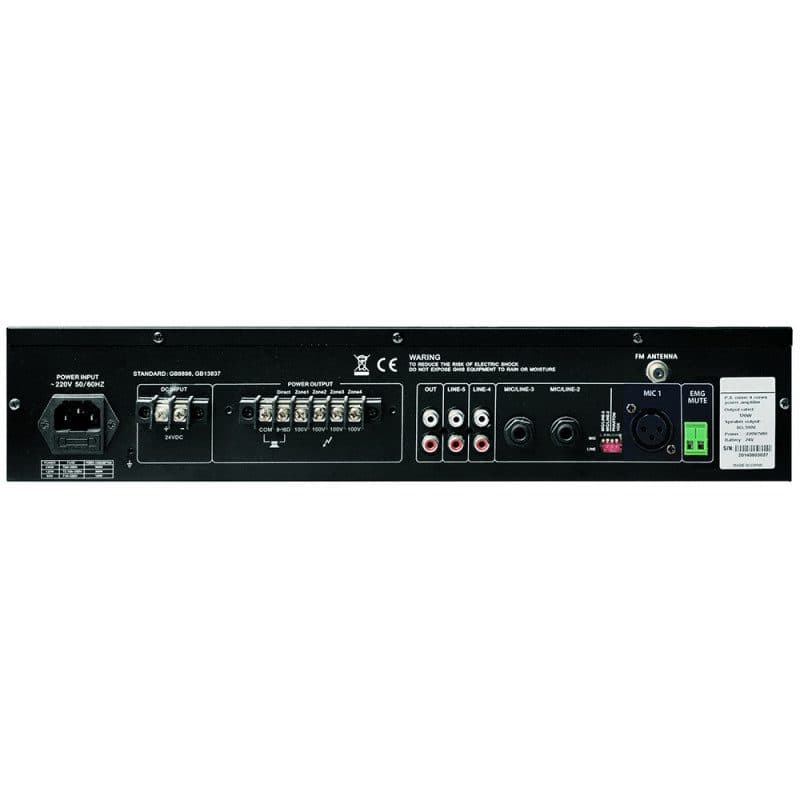

Connectivity includes one XLR microphone input with switchable phantom power, two 6.35 mm jacks that switch between microphone and line level, two RCA aux inputs, and MIC 1 priority with Talk Over. Zone-oriented REC OUT outputs are provided; integrated sources are an FM tuner module and a CD player supporting MP3, USB, and SD card media. Zones one through four can be used alone or via ALL selection, each with an output level indicator and master volume control. Music-cut mutes the entire audio system. Overload, short circuit, and thermal protection are built in, and mounting brackets are included.
