Matrix amplifier 6x240W multi-zone MP3 USB Bluetooth - RONDSON AMX-6240 RON-02428

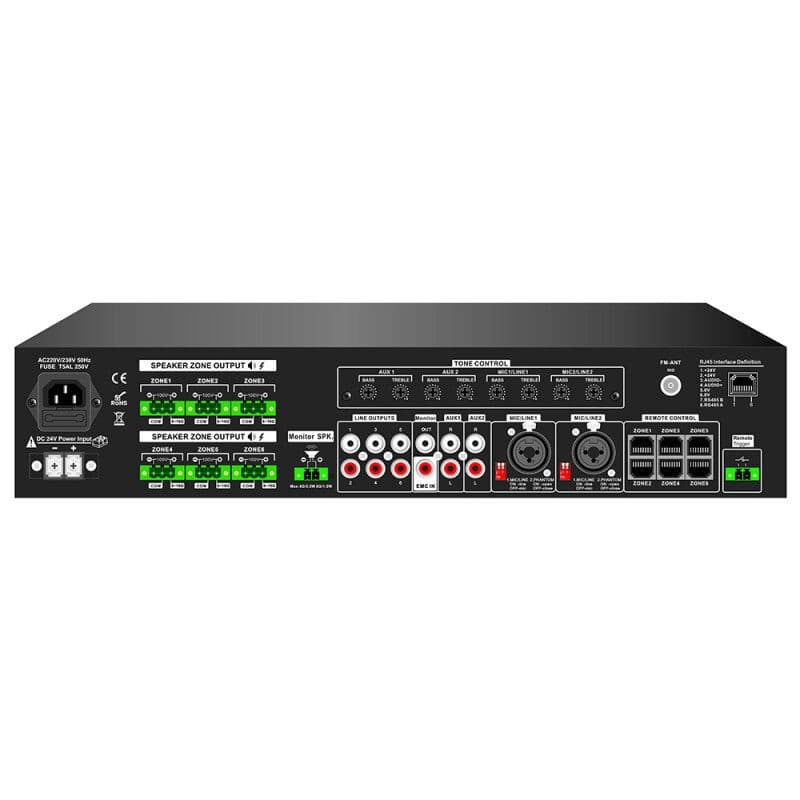

6 x 240 W amplifier / matrix for multi-zone announcements and systems with selection from multiple sources. Integrates MP3 / USB / SD / FM / Bluetooth player. Power supply at 230 VDC 50/60 Hz or continuous at 24 V. Main features 2 balanced XLR or jack inputs (CH 1-2) 2 RCA inputs (AUX 1-2) 1 RCA input (EMC IN) 1 Euroblock terminal block (remote activation) RJ45 for AMX-6B control and zone select control from AMX-6A microphone station Input for 24 VDC power supply 1 RCA monitor output Line output on RCA / zone Individual volume control for each input and per zone Controls: Front panel: 2 MIC / line volume controls (Line 1-2) with tone controls and zone selectors 2 volume controls (AUX 1-2) with zone selectors Back panel: 4 gain settings for each input Monitor Out to Euroblock 8 - 16 ohm, 2 - 5 W Dry contact Thermal, overload and short circuit protection

Technical characteristics

• 6 zone amplifier / mixer 6 x 240 W
• Integrated sources: tuner FM, USB, SD card, Bluetooth
• Frequency response: 80 - 16,000 Hz
• Distortion: < 0.1%
• S/N ratio: >70 dB
• Sensitivity: MIC -60 - 16 dB / 20 kohm, Line: -20 - 0 dB / 20 kohm, RJ45 0 dBv / 600 ohm
• Output: 100 V, 8 / 16 ohm
• Protection: fan, thermal, overload, short circuit
• Power supply: 230 V_AC 50/60 Hz or 24 V_DC
• Consumption: 1600 W
• Dimensions: 484 x 320 x 88 mm
• Weight: 17.5 kg
