Power amplifier 4 channel 4x500W Class-D 100V rack 1U - RONDSON PA-4500 RON-02581

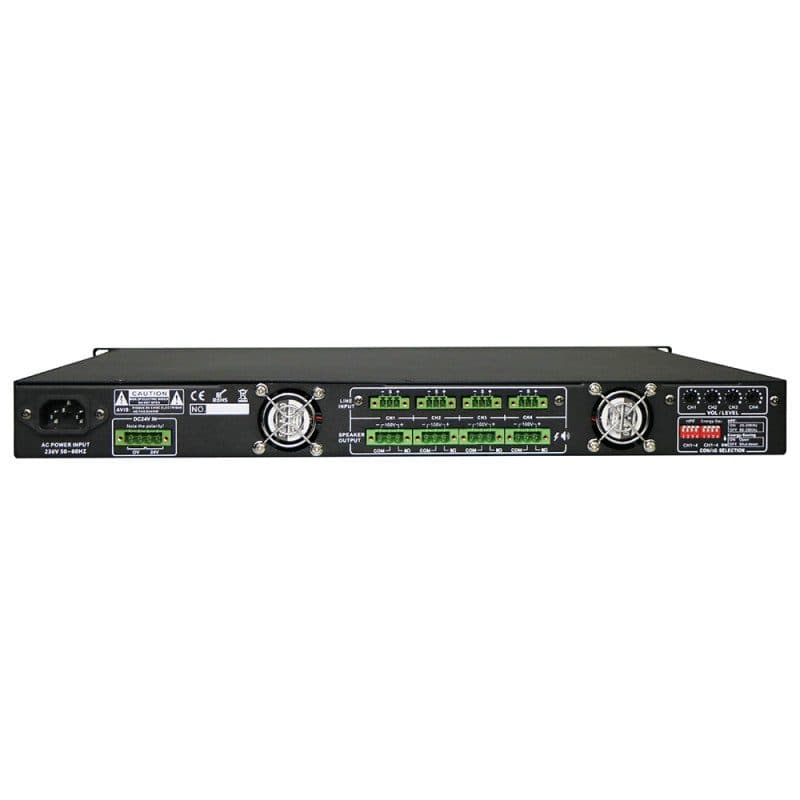

The RONDSON PA-4500 is a four-channel Class-D power amplifier rated at 4 × 500 W for PA installation and line-distribution setups. Line outputs operate at 100 V or low impedance (8 ohm). All four inputs and four outputs use Euroblock terminal blocks.

Volume can be adjusted individually per input and per zone. HPF switches insert an 80 Hz high-pass filter on each input signal, depending on loudspeaker type or the installation environment. The unit includes thermal, overload, and short-circuit protection, fan cooling, and bass/treble tone controls. It mounts in a 19″ rack at 1U height.

Specifications:

• Type: 4-channel Class-D power amplifier
• Power supply: 230 V AC 50/60 Hz
• Power supply: 220 - 240 V AC 50/60 Hz
• Output power: 4 × 480 W
• Speaker outputs: 100 V
• Inputs / sensitivity Input: 0 dB / 10 kohm balanced
• Inputs / sensitivity LINK: 0 dB / 10 kohm balanced
• Crosstalk: > 70 dB
• Frequency response: 50 - 15,000 Hz (±3 dB)
• Total harmonic distortion: < 0.1%
• S/N ratio: > 90 dB
• Tone settings bass: ±10 dB at 100 Hz
• Tone settings treble: ±10 dB at 10 kHz
• Protection: fan, thermal protection, overload and short-circuit
• Dimensions (W x D x H): 483 x 380 x 88 mm
• Weight: 7.90 kg
