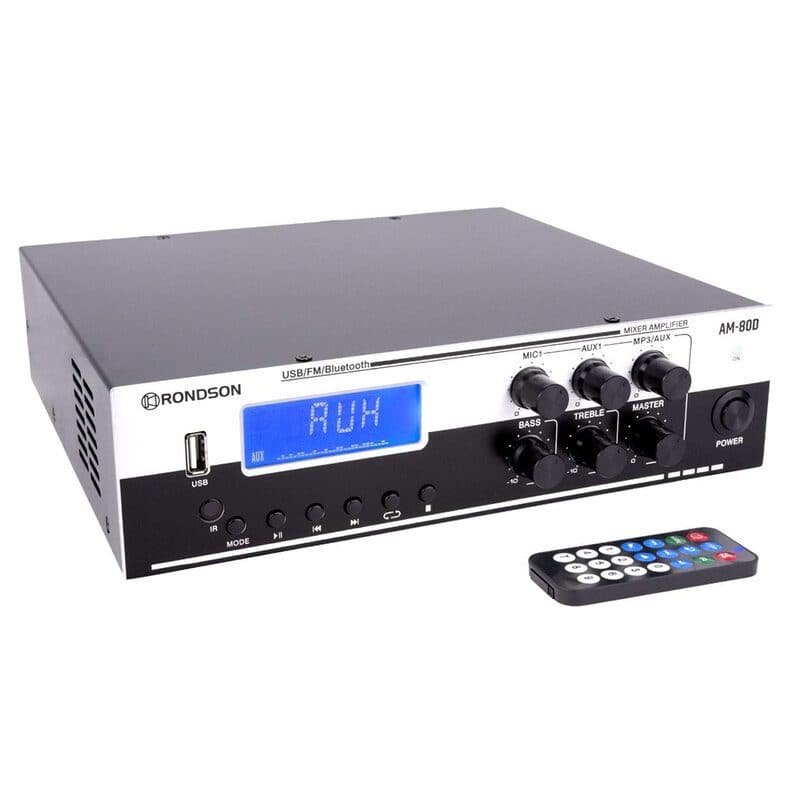

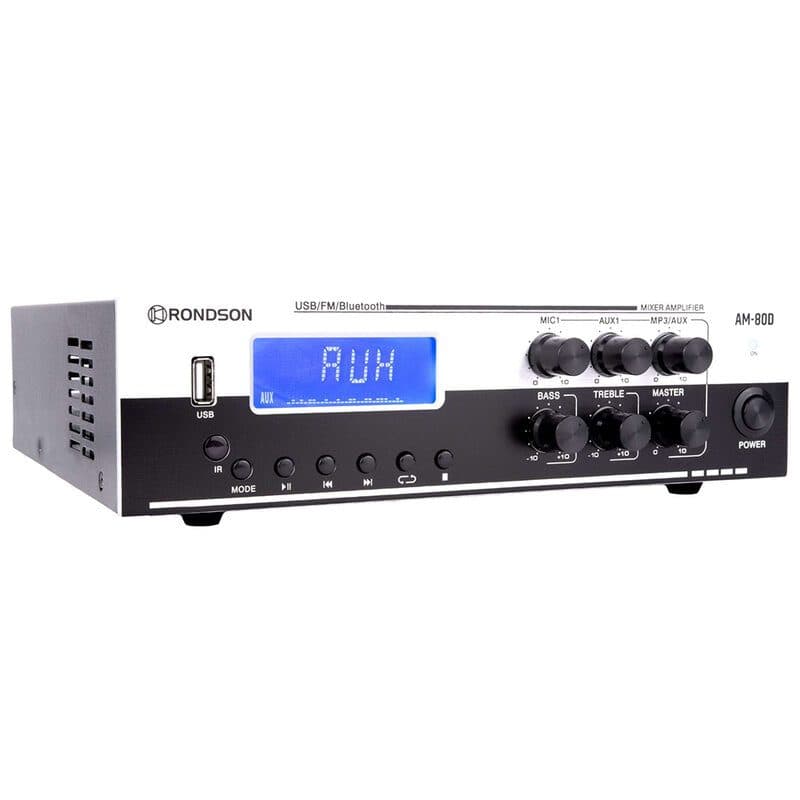

Multimedia mixer amplifier 80W Bluetooth USB FM - RONDSON RON-02788

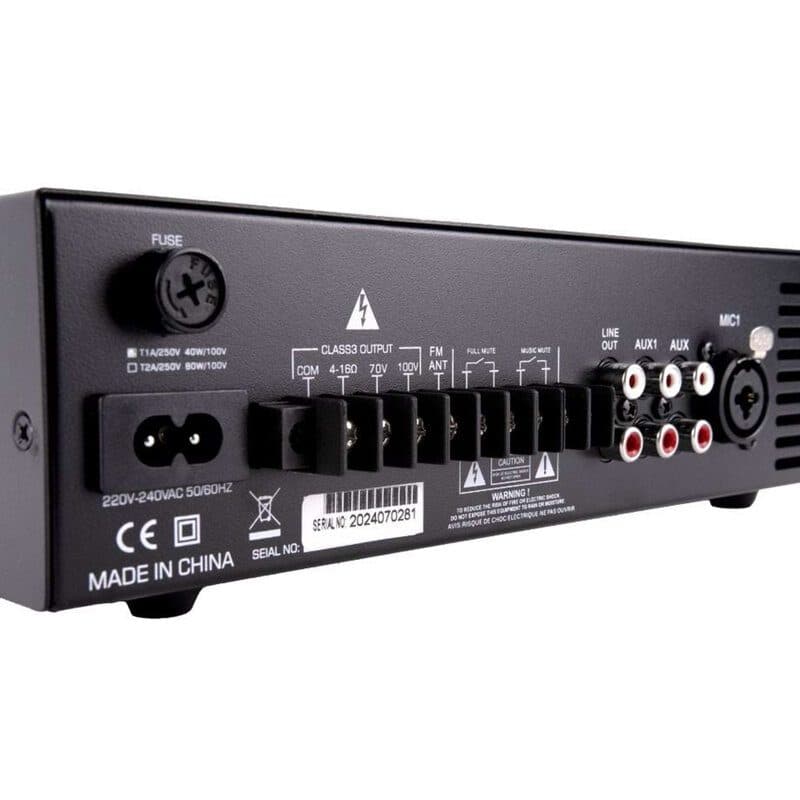

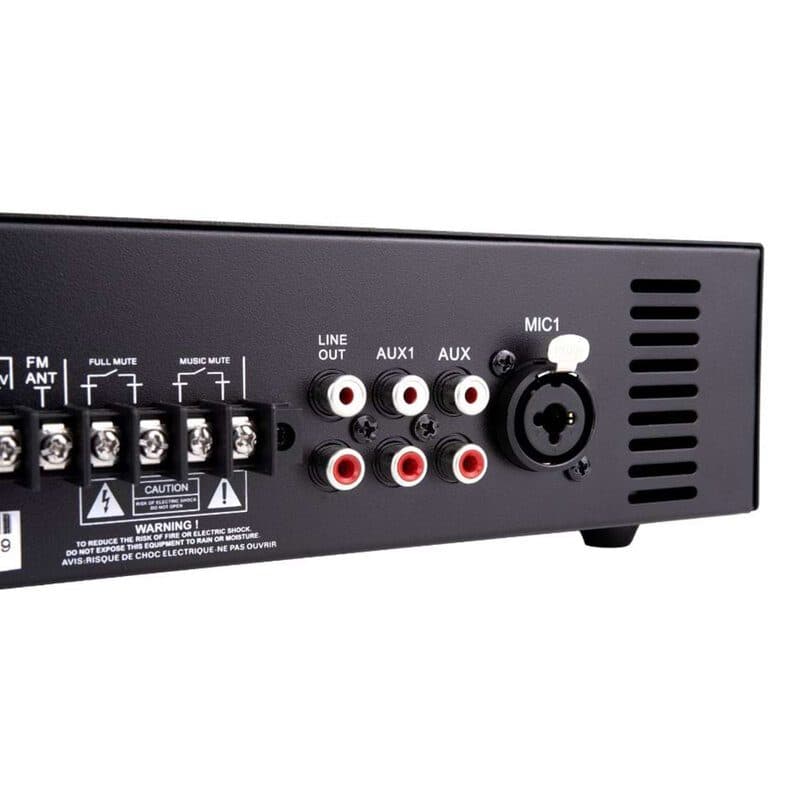

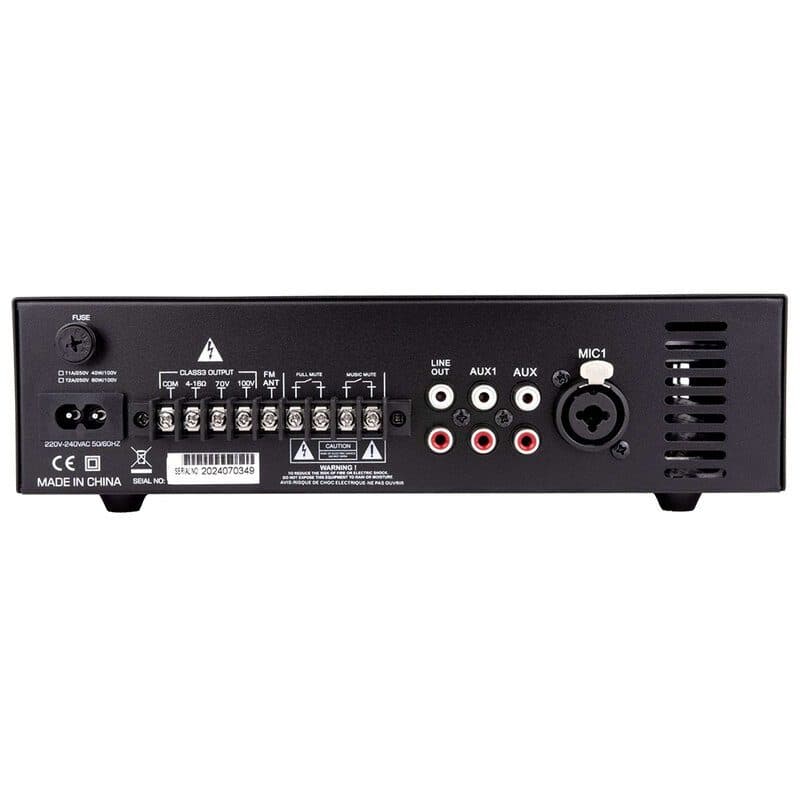

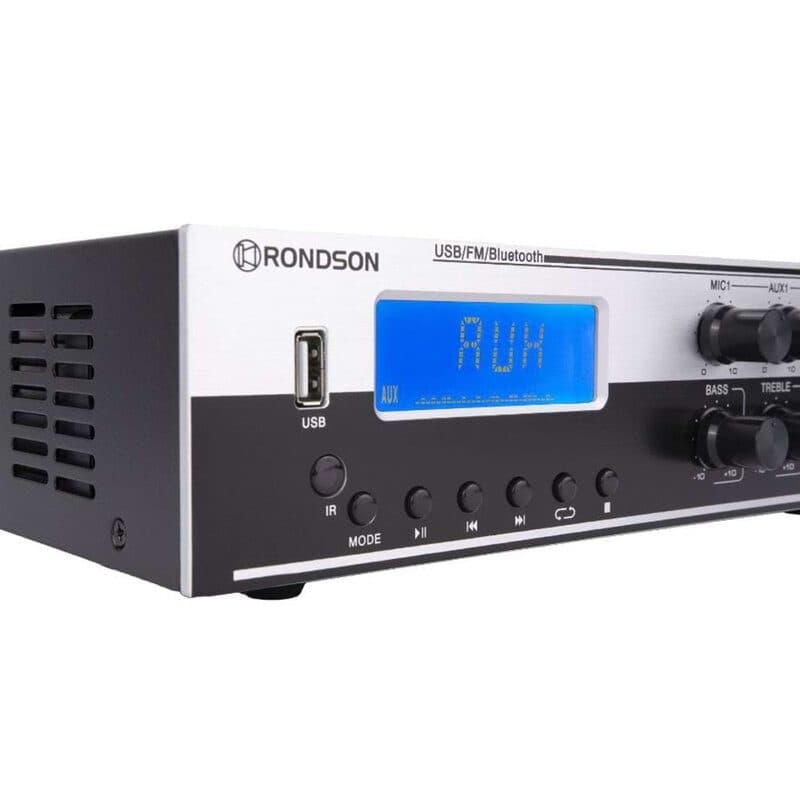

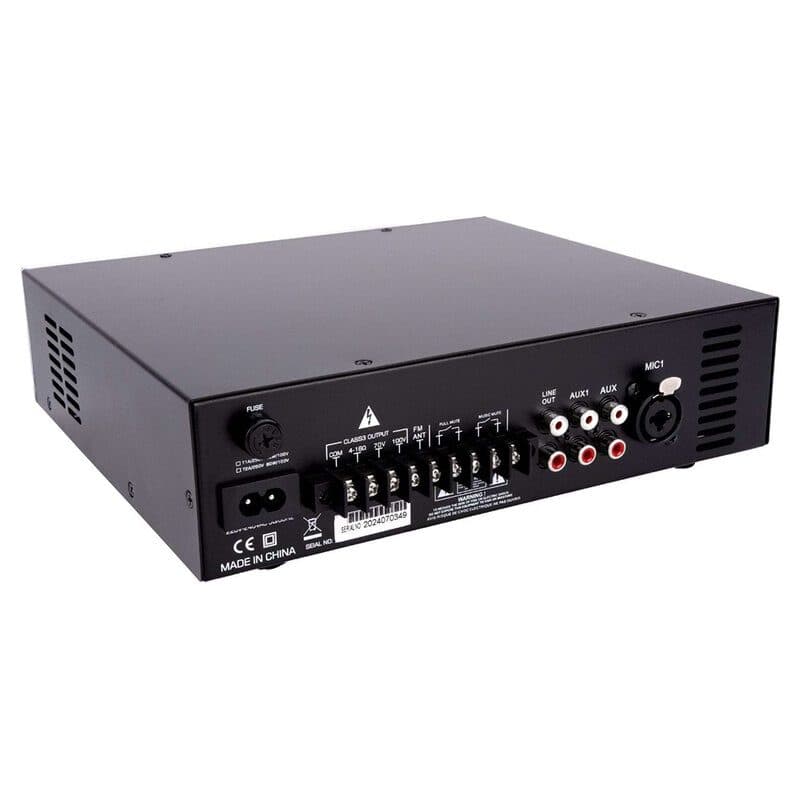

The RONDSON AM-80D is an 80 W RMS multimedia amplifier/mixer for commercial audio systems. Its built-in media player includes an LCD display and USB port, while the Bluetooth interface provides fast pairing and the integrated tuner receives FM broadcasts. Microphone connection is provided through a Combo XLR/6.35 mm jack input; two RCA AUX L/R inputs and a line output on stereo RCA connectors are also available. Loudspeaker outputs support 4 - 16 ohm low-impedance loads as well as 70 / 100 V line systems.

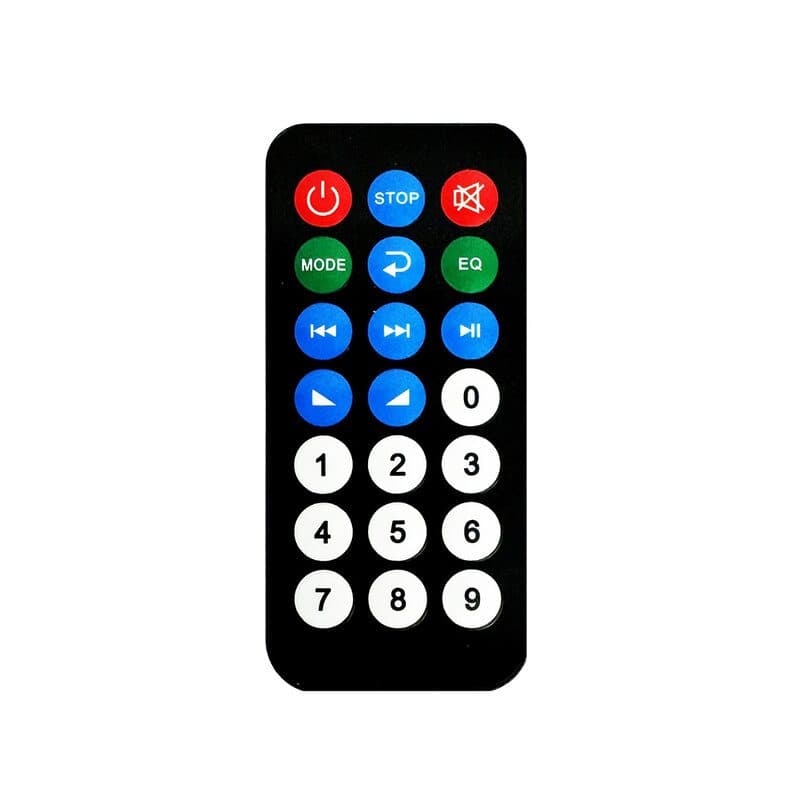

Controls cover bass, treble and master volume, with separate level adjustment for MIC1, AUX1 and MP3/AUX. Protection is included against overheating, overload and short circuits. The supplied remote control operates all main functions from a distance. Support for several audio sources suits locations requiring background music, and independent source volume control allows different signals to be adjusted separately. The amplifier can drive 70 / 100 V or low-impedance loudspeakers, is immediate to operate and has a compact format for installation in restricted spaces. Typical areas of use include shops, showrooms, supermarkets, schools, libraries, museums, gyms and hotels.

Output/sensitivity is 0 dBV / 600 ohm. Input sensitivity is MIC 1: 4 mV, AUX 1: 400 mV and AUX 2: 550 mV. Bass adjustment is ±10 dB at 100 Hz, while treble adjustment is ±10 dB at 10 kHz. Frequency response is 80 Hz - 20 kHz (± 3 dB), SNR is ≥ 75 dB and THD is < 0.5%. The power supply is 240 V AC 50 Hz. Dimensions (W x D x H) are 22 x 23 x 8.8 cm, corresponding to 2U, and weight is 5 kg.
