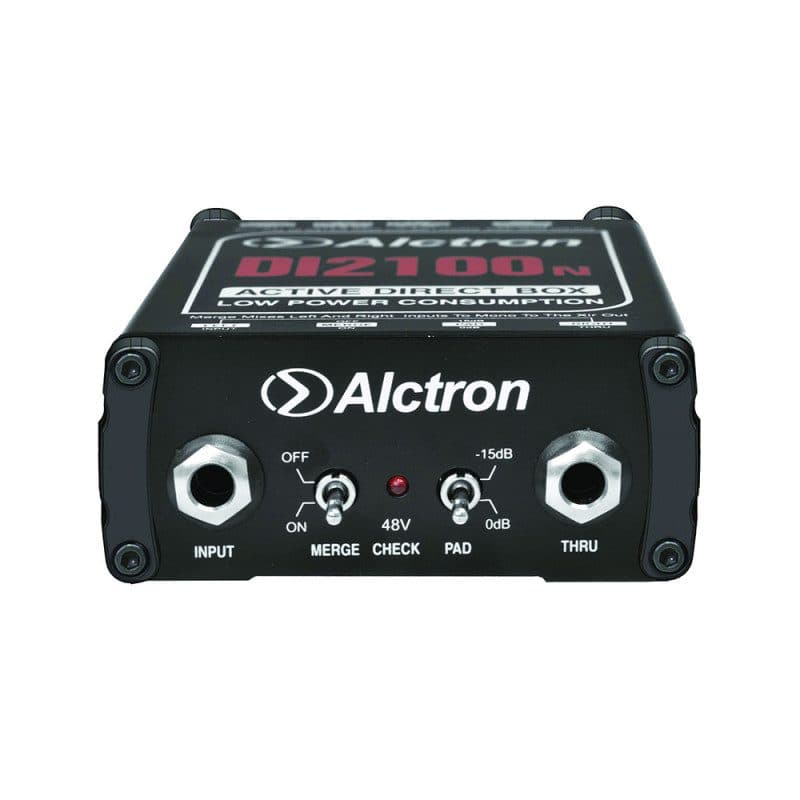

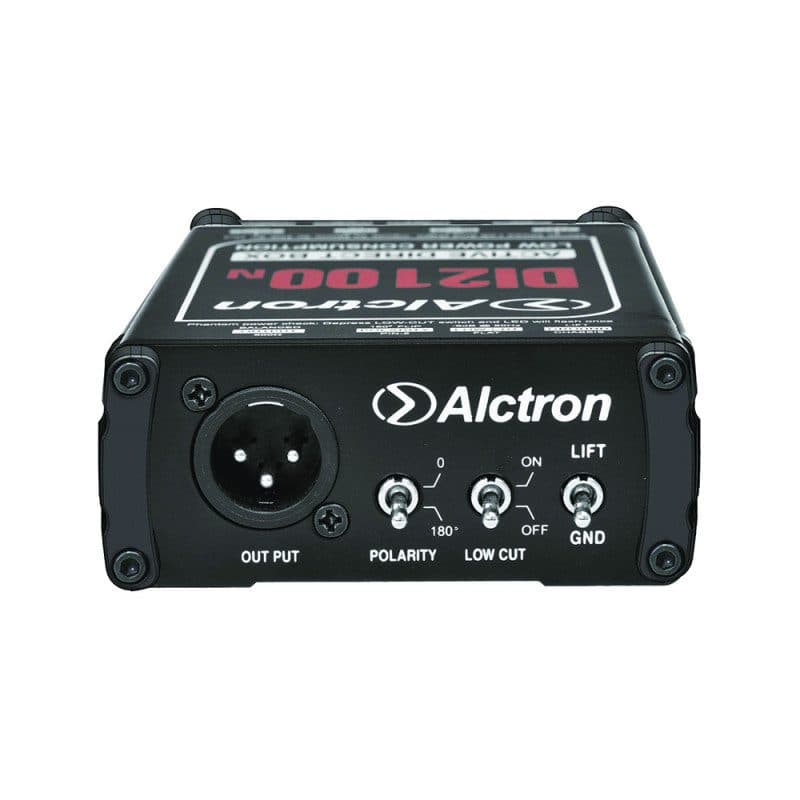

Active dual-input jack DI box 6.35 mm - ALCTRON SOG-2700_DI_2100_N

The DI 2100 N is an active direct box, especially designed for the stage or the studio.It will also be very practical in a home studio and for mobile use. Its careful and robust construction positions it as a professional tool with remarkable audio qualities. To enable greater connection flexibility, it has a double 6.35 mm jack input. Input transformers provide perfect isolation to eliminate noise and interference caused by ground loops.It can be used on all occasions requiring 48V Phantom power and will be compatible with guitars and bass guitars

Technical specification :



• Frequency response: 20 Hz - 20 kHz
• Input impedance: 600ohm
• Dynamic: 100 dB
• Signal-to-noise ratio: 100 dB
• Distortion: THD+N @ 1 kHz / 0 dB: < 0.005%
• Input: unbalanced 6.35 mm jack
• Output: balanced XLR
• Ground switch
• -15 dB pad
• Pad Merge (Mix of the 2 jacks )
• 0 to 180° polarity pad
• Low-pass pad
• 48 V⎓ LED indicator
• Operation on 48 V⎓ pedal power supply
• Aluminum case
• Color: black
• Dimensions: 180 x 150 x 70 mm
• Weight: 0.50 kg
