Compact in-ear headphone amplifier with clip - ALCTRON HA-8P

Name: Compact in-ear headphone amplifier with clip - ALCTRON HA-8P
Brand: ALCTRON
SKU: SOG-2700_HA-8P
Price: 50.48 EUR
Availability: InStock

In stock: 1New

SKU SOG-2700_HA-8PEAN 6956443031511

Price for 1 unit

50,48 €

41,38 € + IVA

Ultra-compact battery powered headphone amplifier

Description

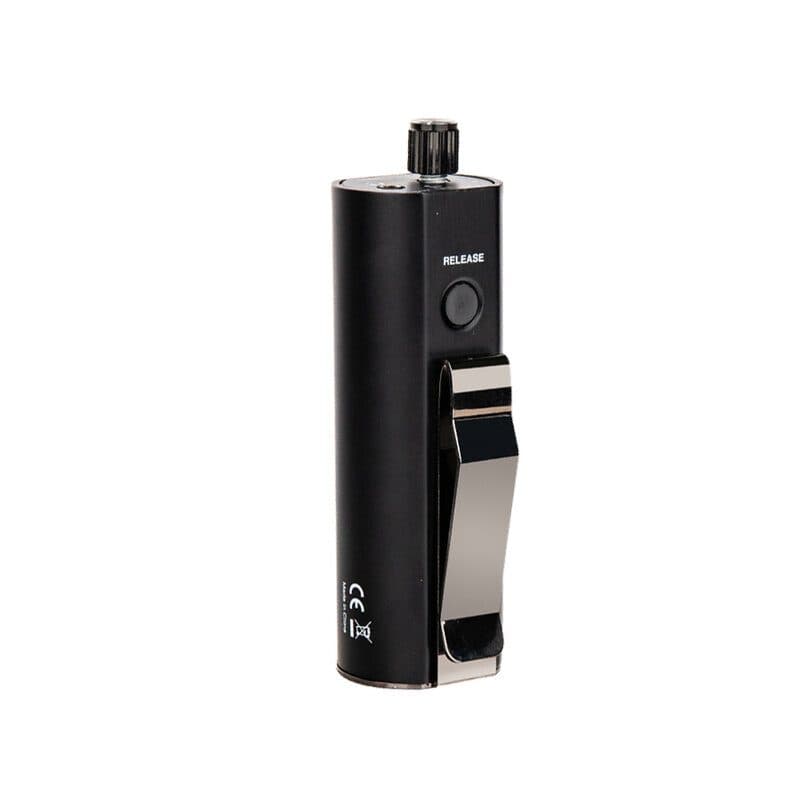

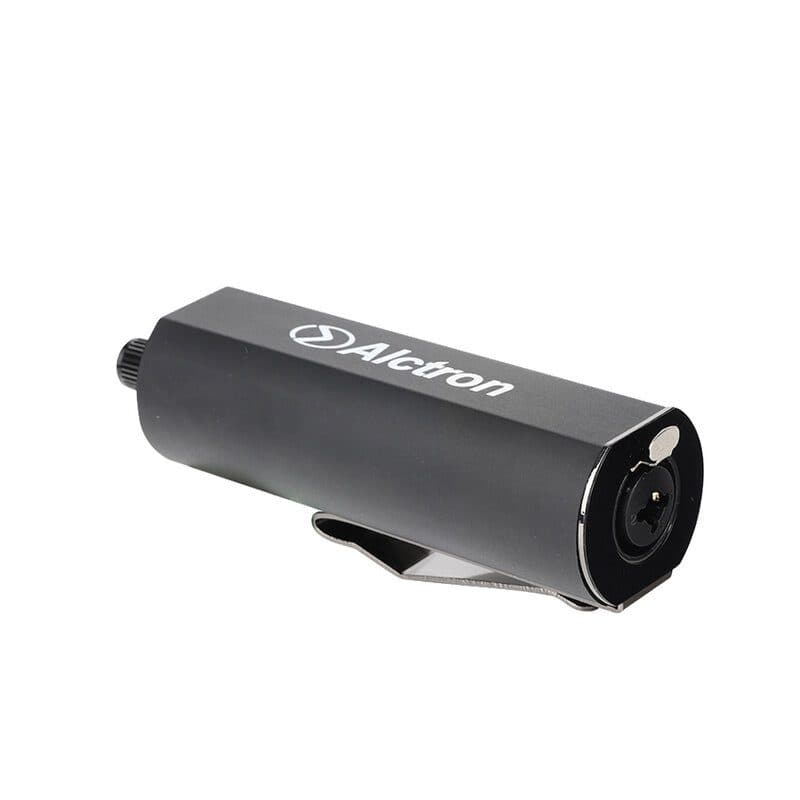

The HA-8P is an ultra-compact headphone amplifier for in-ear monitoring featuring a belt clip system and volume control with switch. It runs on two 1.5 V batteries. Combo XLR / jack type input connector, 3.5 mm mini-jack output connector.

Technical characteristics

Stereo / mono source switch
Input: 1 XLR / jack Combo
Output: 1 x 3.5 mm miini-jack
Frequency response: 20 -20,000 Hz
Input impedance: XLR 20 kohm / TRS 10 kohm
Output power: @ 16 ohm 1.2 V 90 mW x 2 | @ 32 ohm 1.4V 61 mW x 2 | @ 62 ohm 1.7 V 43 mW x 2 | @ 100 ohm 1.8 V 32 mW x 2
Output impedance: 10 ohms
Max gain: 14 dB
Distortion: ≤ 1%
Noise: ≥ -70 dB
Practical clip for belt attachment
Batteries: 2 x 1.5 V
Battery indicator
Color: black
Dimensions (W x D x H): 40 x 40 x 120 mm
Weight: 0.200 kg

Specifications

Batteries	2 x 1.5 V
Color	black
Dimensions (W x D x H)	40 x 40 x 120 mm
Distortion	≤ 1%
Frequency response	20 -20,000 Hz
Input	1 XLR / jack Combo
Input impedance	XLR 20 kohm / TRS 10 kohm
Noise	≥ -70 dB
Output	1 x 3.5 mm miini-jack
Output impedance	10 ohms
Output power	@ 16 ohm 1.2 V 90 mW x 2 \| @ 32 ohm 1.4V 61 mW x 2 \| @ 62 ohm 1.7 V 43 mW x 2 \| @ 100 ohm 1.8 V 32 mW x 2
Weight	0.200 kg
