LED display P1.25 Mnano II COB indoor 600x337,5mm IP54 - YES TECH YES-P1.25MNI337

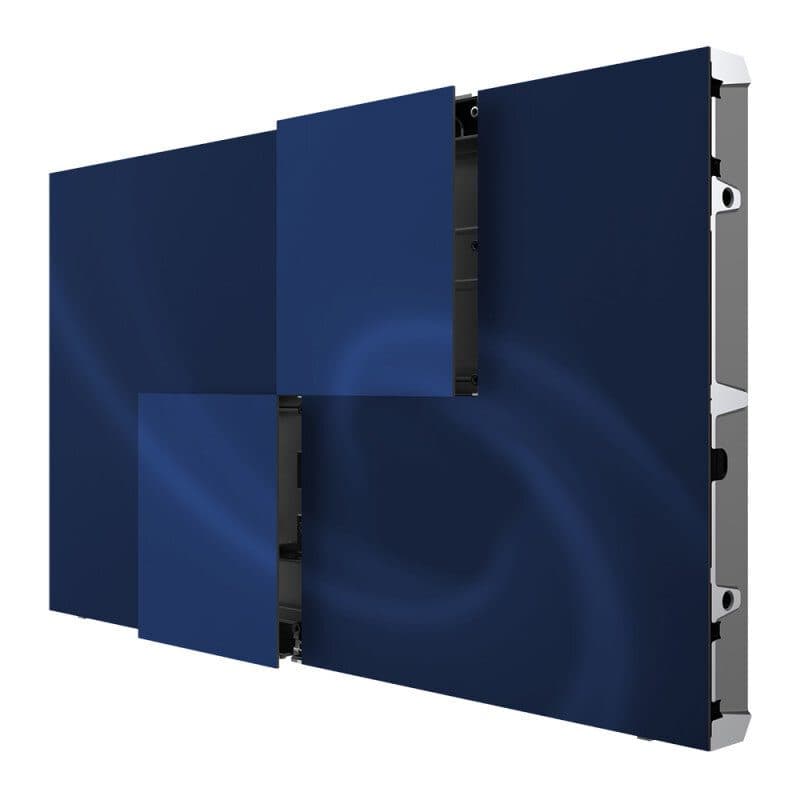

Mnano II is the new Yes Tech LED display featuring an ultra-small pixel pitch of 1.25 mm that allows a 8K resolution for an ultra-high definition visual experience. Thanks to the advanced fourth generation COB (Chip On Board) technology, it is able to offer unmatched image clarity, wide color uniformity and a contrast ratio up to 10,000:1. The viewing angle, both horizontally and vertically, is 160°. COB technology ensures color consistency over time, offers high anti-collision capability and low power consumption. In addition to the nano-optical black composite coating and matte surface, it also helps minimize batch-to-batch differences for excellent long-term uniformity. This compact LED display, based on a module of only 150 x 168.75 mm and a 600 x 337.5 mm cabinet for a total of 8 modules, amazes for the quality of the images it is able to show: for example, it supports DCI color gamut management with color uniformity greater than 97%, with 22-bit processing. The cabinet, made with the utmost precision to ensure high flatness of the LED wall surface and seamless junctions, is IP65 certified for front and humidity, dust, fingerprints proof, as well as being anti-static, anti-collision and anti-oxidation! Better heat dissipation and low power consumption allow for a “cool” screen and long component life. Mnano II is suitable for use in studios, conference rooms and other types of indoor installations, but also for rental and education applications. User benefits Ultra high definition visual experience (P 1.25 mm) Over 97% color uniformity Energy efficiency High anti-collision capability Excellent long-term uniformity More cabinet options Areas of use TV studios Conference rooms Retail stores Education centers Indoor exhibition spaces

Technical characteristics

Items	Mnano indoor P1.25
LED encapsulation	Flip chip COB
Pixel pitch（mm）	1.25 mm
Module resolution（W×H）	120 x 135
Module size（mm）	150 x 168.75
Cabinet
Module quantity per cabinet	4 x 2
Cabinet resolution（W×H）	480 x 270
Cabinet size	600 x 337.5 x 39.5 mm
Weight	4 kg/cabinet
Pixel density	640,000 dot/m2
IP grade (front)	IP65
White balance brightness	600 nit
Horizontal viewing angle	160°
Vertical viewing angle	160°
Electrical parameters
Power consumption	130/65 W/cabinet
Working voltage	100 - 264 VAC 50/60 Hz
Processing performances
Driving method	constant drive
Frame frequency	50 & 60 Hz
Refresh frequency	≥ 3840 Hz
Control system	Nova Star
Usage parameter
Life span	80,000 h
Working  temperature	-20 to 50 °C
Working humidity	10 - 90% RH
Communication mode	CAT5
Certification	TUV, CE, CCC, ISO, ETL
