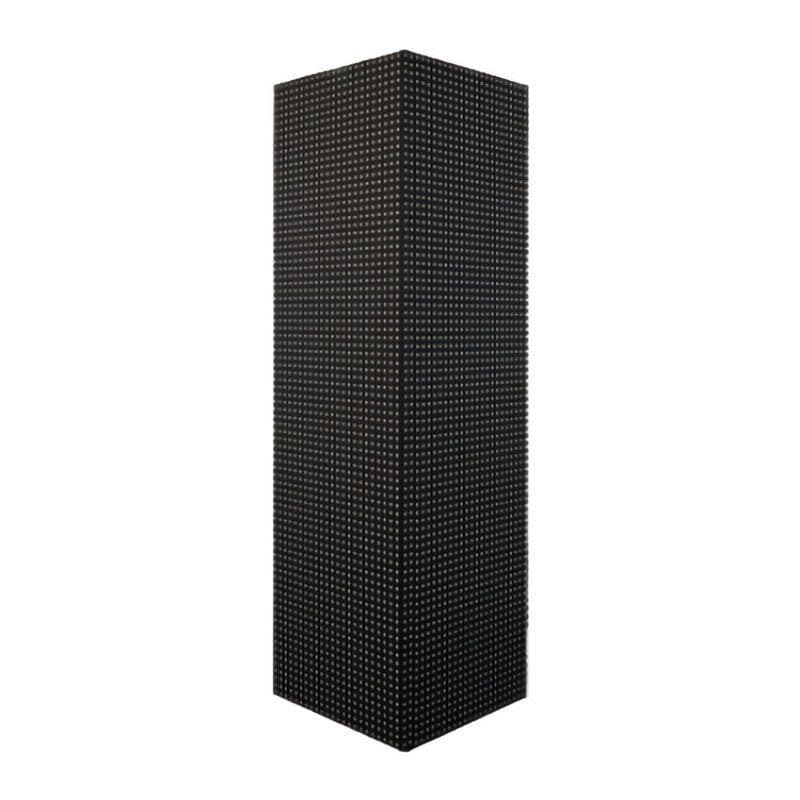

P2.6 indoor right-angle LED display 125x500 mm SMD1515 - YES TECH YES-P2.6MG11I20

Right-angle LED display (P2.6 MG11), 125 x 500 mm, SMD1515, for indoor use (800 - 1000 nits).  It is part of the MG Creative Extension series which includes right angle, triangle and sector circular displays to make "Magic Stage" more creative. This newly updated series will allow you to think and design the stage more creatively, not only with the arc layout and presentation, but also polygon, sector etc. Combining the Magic Stage LED wall modules with the MG Creative Extension which includes right angle (MG11), triangle (MG12), sector circular (MG13) etc. LED displays, you can realize a variety of creative displays with the desired shape, such as numbers, letters, columns, Christmas tree, diamond, windmill, flower, heart etc. User benefits Allows you to create LED walls of different shapes by combining the cabinets of the Magic Stage series Areas of use All those in which the Yes Tech LED displays of the Rental & Staging series are used

Technical characteristics

Cabinet
Size	125 x 500 x 56 mm
Weight	1.8 kg
Screen
Pixel pitch	2.6 mm
Pixel density	65,536 dot/m2
Max. power consumption	480 W/m2
Average power consumption	160 W/m2
Brightness	800 - 1000 cd/m2
Driving method	1/16 scan
Viewing angle	n.d.
Cabinet resolution	26 x 104 dot
LED	SMD1515
Other parameters
Supply voltage	100 - 240 VAC 50/60 Hz
Refresh frequency	≤ 3840 Hz
Operating environmental temperature	-20 to 50 °C
Operating environmental humidity	10 - 90% HR
Pixel center distance deviation	< 3%
Brightness uniformity	< 97%
Color uniformity	within ±0.003 Cx, Cy
IP grade	IP50
Single LED brightness / chroma calibration	yes / yes
Connector	Neutrik
Display content	text, graphics, logo, animation, live video, movie, etc.
Communication distance	UTP transmission distance 100 m, maximum 130 m, (multi-mode fiber 500 m, single-mode fiber 150 km optional)
Connection method	synchronized with computer; if TV, DVD/VCD player, VCR, etc, a video processor is needed
Communication mode	CAT5
Certifications	CE, CCC, ISO, TUV, ETL
