LED screen right triangle P3.9 indoor full black SMD2020 - YES TECH YES-P3.9MG14I21

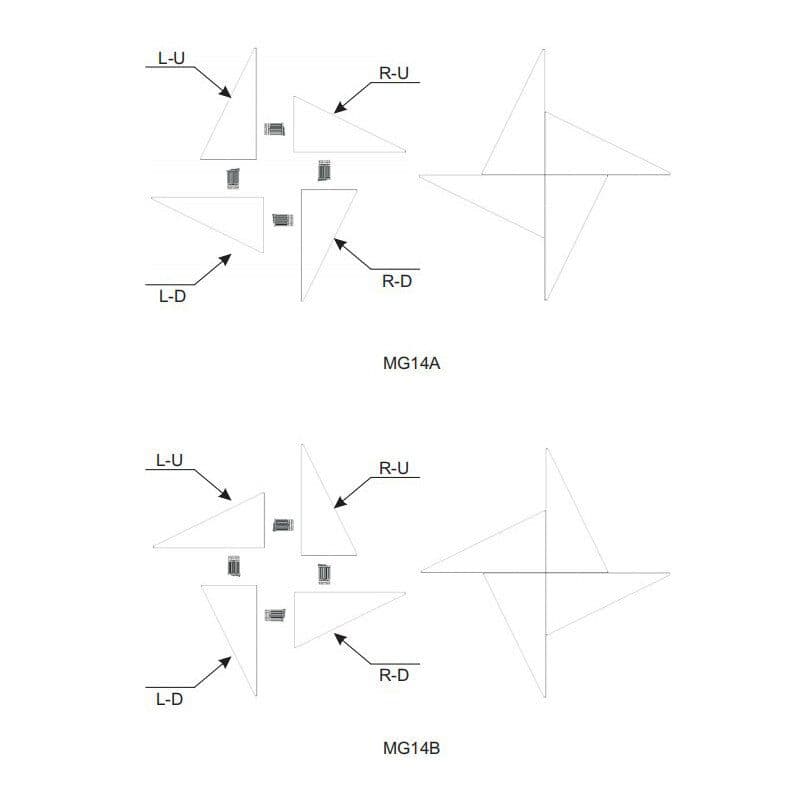

Yes Tech P3.9 MG14 Indoor is a right-triangle LED display with a 3.9 mm pixel pitch, full-black SMD2020 LEDs and ICN2153, designed for indoor use with 800 - 1000 nit brightness. It belongs to the MG Creative Extension series, which also includes triangular, rectangular and circular-sector displays. This updated range expands creative stage design beyond arc layouts, supporting polygon, sector and other geometric configurations.

Magic Stage LED wall modules can be combined with MG Creative Extension displays such as the right-angle MG11, triangle MG12 and circular-sector MG13 to create screens in the required shape: numbers, letters, columns, Christmas trees, diamonds, windmills, flowers and hearts. The system therefore allows LED walls with different forms by combining cabinets from the Magic Stage series. Areas of use include all applications where Yes Tech LED displays from the Rental & Staging series are used.

Specifications:

• Module LED encapsulation: 2020
• Pixel pitch: 3.9 mm
• Cabinet size: 250 x 500 x 73 mm
• Cabinet area: 0.0625 m 2
• Weight: 2.5 kg/cabinet
• Pixel density: 65,536 dot/m 2
• IP grade: IP50
• White-balance brightness before calibration: 800 - 1000 nit
• Colour temperature: 6500 - 10,000 K, adjustable
• Horizontal viewing angle: 160°
• Vertical viewing angle: 120°
• Power consumption: 420 / 140 W/m 2
• Working voltage: 100 - 264 V AC, 50/60 Hz
• Driving method: constant drive
• Scanning method: 1/16 s
• Driving IC: ICN2153
• Refresh frequency: ≤ 3840 Hz
• Control system: Nova Star
• Life span: 80,000 h
• Working / storage temperature: -20 to 45 / -30 to 60 ℃
• Working / storage humidity: 10 - 90 / 10 - 90% RH (no condensation)
• Communication mode: CAT5
• Certification: CE, FCC, ETL
