CVT10-M - Novastar 101655
Codice 101655
Prezzo per 1 unità
1149,06 € (IVA inclusa)
941,85 € + IVA
Quantità

SKU BEE-M1-USB321
Prezzo per 1 unità
878,94 €
720,45 € + IVA

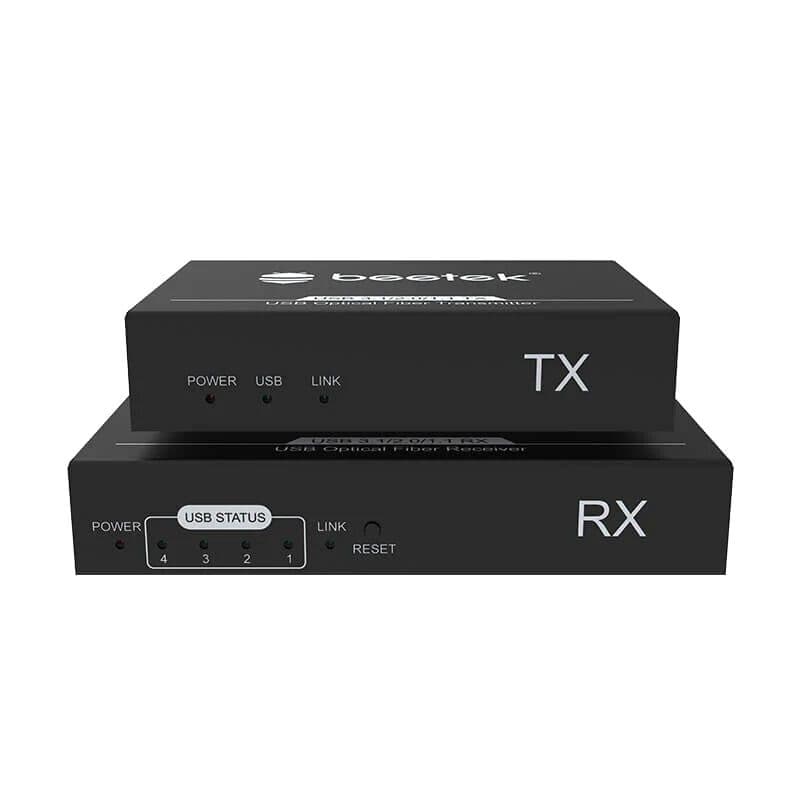

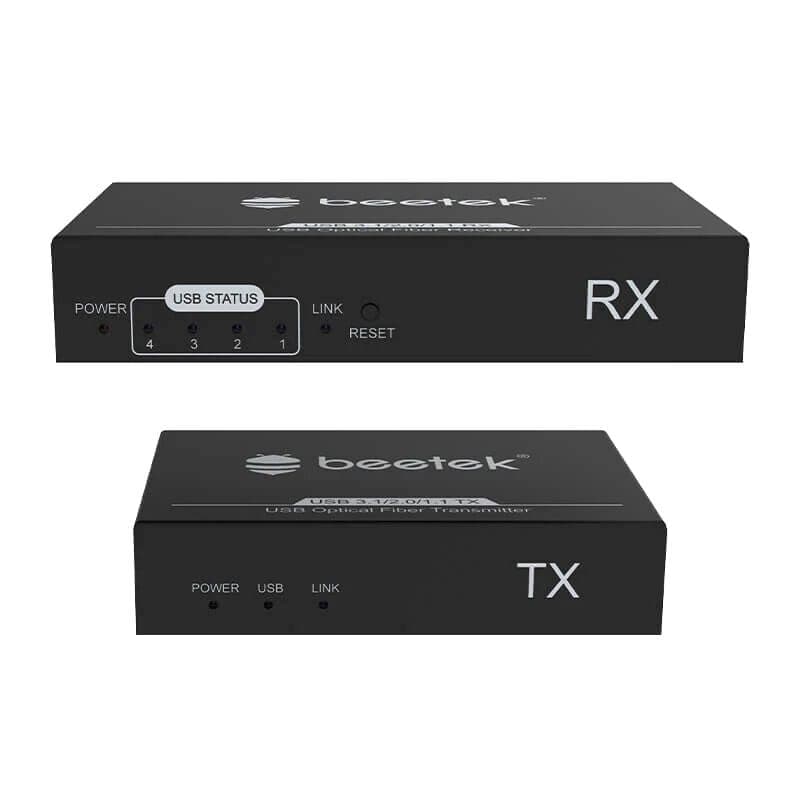

Kit TX/RX USB 3.0 fino a 5 Gbps su fibra LC fino a 200 m, retrocompatibile con USB 2.0 e 1.1. Ricevitore con hub a 4 porte, plug & play senza driver, adatto a eventi live, noleggio e allestimenti.
L'extender in fibra ottica Beetek M1-USB321 gestisce segnali USB 3.0 con una velocità di trasmissione dati fino a 5 Gbps. È retrocompatibile con USB 2.0 e USB 1.1, che trasferiscono dati rispettivamente a 480 Mbps e 12 Mbps. Il kit è un extender USB 3.1 gen1 in fibra, compatibile con USB 2.0 e 1.1.

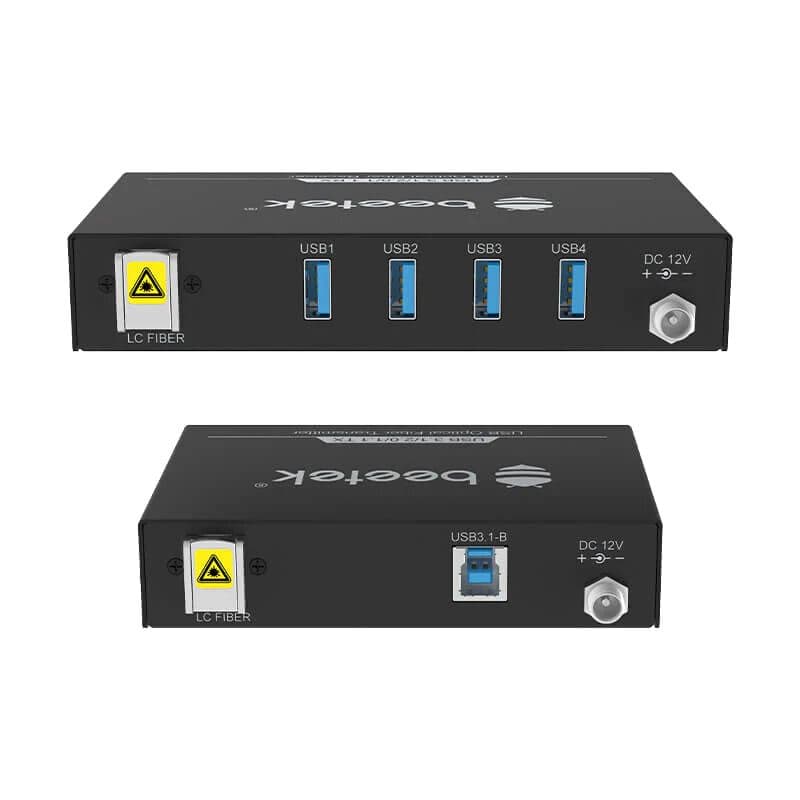

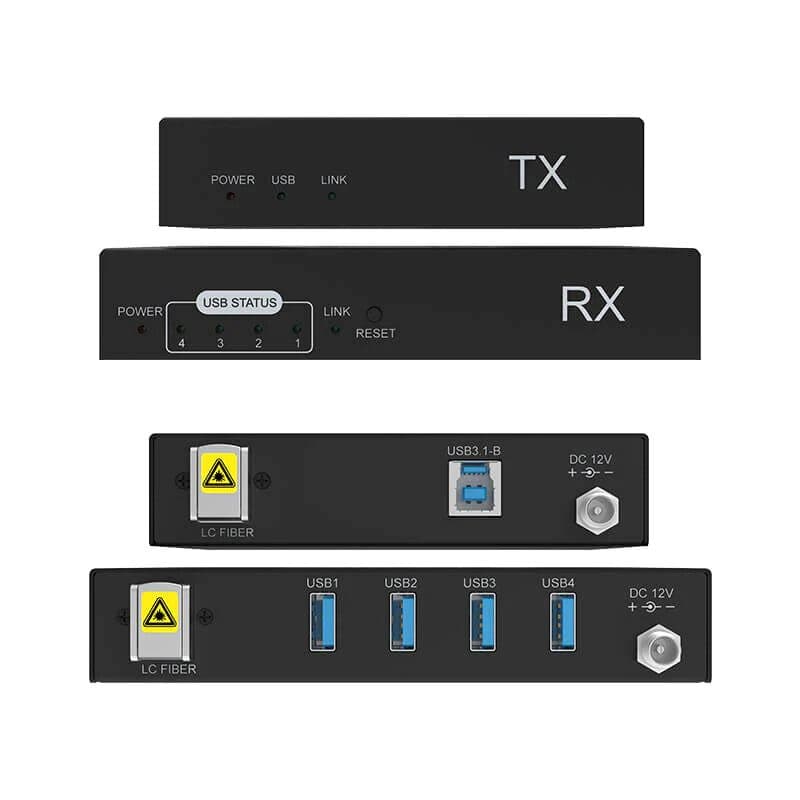

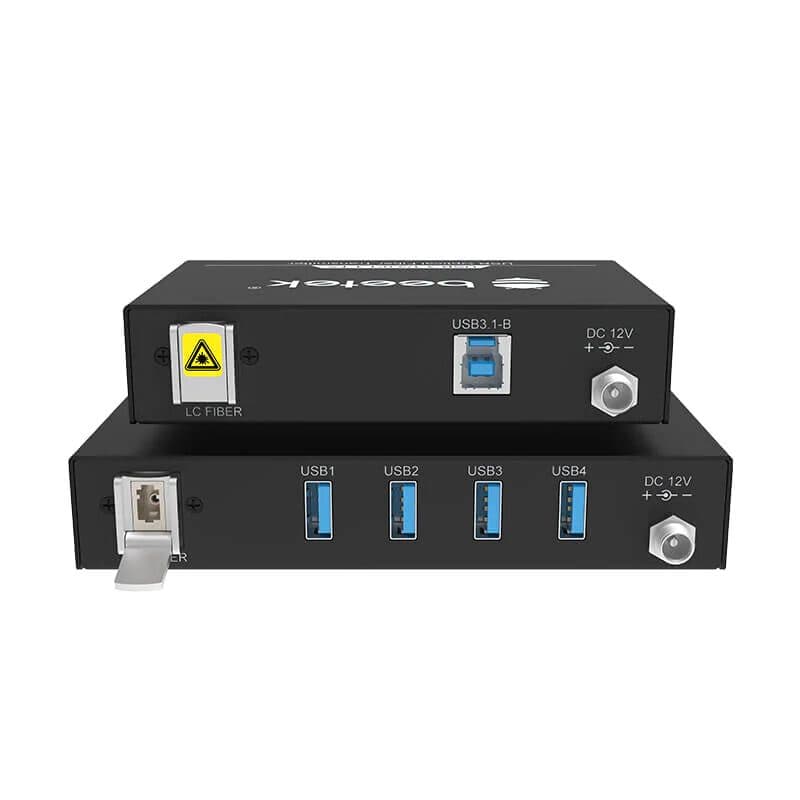

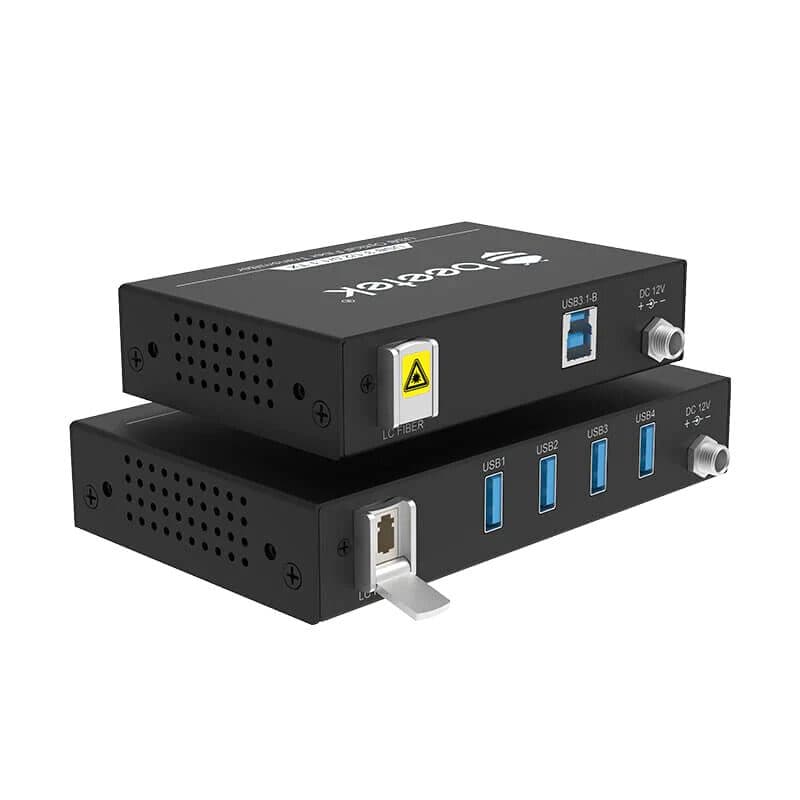

Sia il trasmettitore sia il ricevitore funzionano con fibra ottica multimodale o monomodale e portano il collegamento fino a 200 m su un unico cavo LC. Il ricevitore integra un hub a 4 porte USB Type A femmina, a cui si collegano più periferiche, per esempio una fotocamera USB, un DSP, una tastiera o un mouse. Il trasmettitore ha un design compatto e, essendo un extender Plug & Play, non richiede l'installazione di alcun driver. La trasmissione in fibra conferisce ai dispositivi una forte immunità alle interferenze.
Il kit TX / RX M1-USB321 è adatto a eventi live, noleggio e allestimenti, e può essere impiegato in ambito corporate, residenziale e in qualsiasi applicazione di estensione del segnale USB.
| Ambient temp. | -20 to 70 °C |
|---|---|
| Balancing chip | automatic equalization |
| Clock bandwidth | 600 MHz x 3 / 540 MHz x 4 |
| Compatibility | USB 3.1, USB 2.0, USB 1.1 |
| Compression | none |
| Delay | zero-frame |
| Dimensions | TX 115 x 75 x 26 mm, RX 140 x 85 x 26 mm |
| ESD protection | yes |
| Fiber interface dust prevention | yes |
| Fiber type | single-mode G657.A1 |
| Hot plug | yes |
| Indicator LED | signal, power, status |
| Input connectors | UBS Type B female |
| Locking power connector | yes |
| Material | metal mold |
| Optical module | 2 x 10 G 2-channel single-mode optical module |
| Optical module life | 100,000 hours |
| Output connector | TX: single-core LC |
| Package dimensions | 226 x 160 x 121 mm |
| Package weight | 1.25 kg |
| Power supply | 12 V DC 2 A |
| RX | single-core LC |
| Signal | USB 3.1 gen1 (backwards compatible) |
| Technical characteristics | 2-wave CWDM technology |
| Transmission distance | single-mode 200 m |
| Transmission speed | 5 Gbps |
| Weight | TX 0.35 kg, RX 0.45 kg |
