Extender HDMI 1.4 in fibra mono-modale con TX/RX 4K, 10,2 Gbps, Ethernet, RS232 bidirezionale e IR pass-through. Fino a 300 m, Audio ARC, 3D, HDCP 2.2 ed EDID pass-through trasparente.

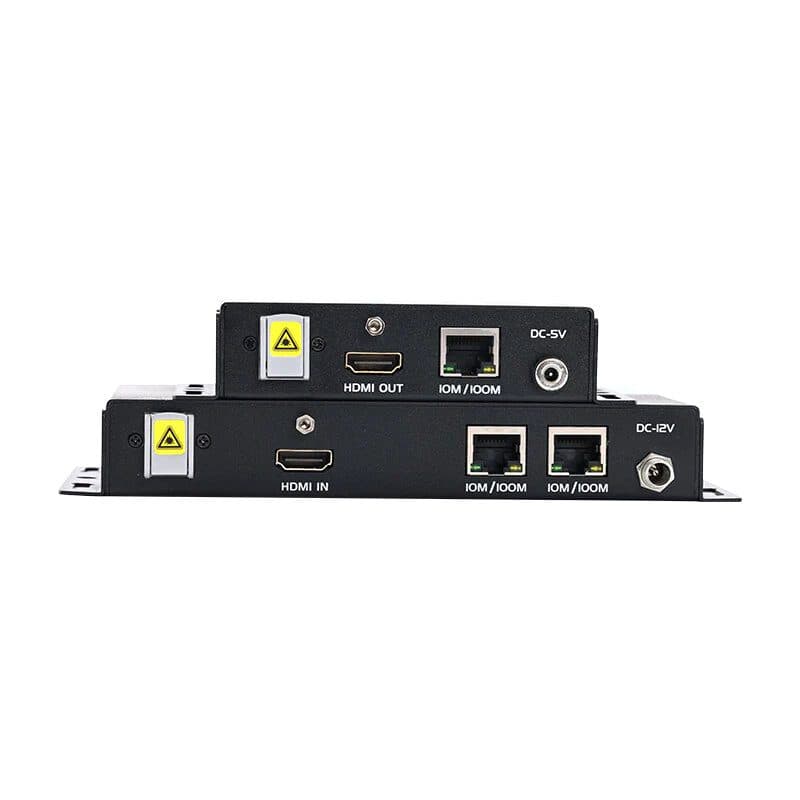

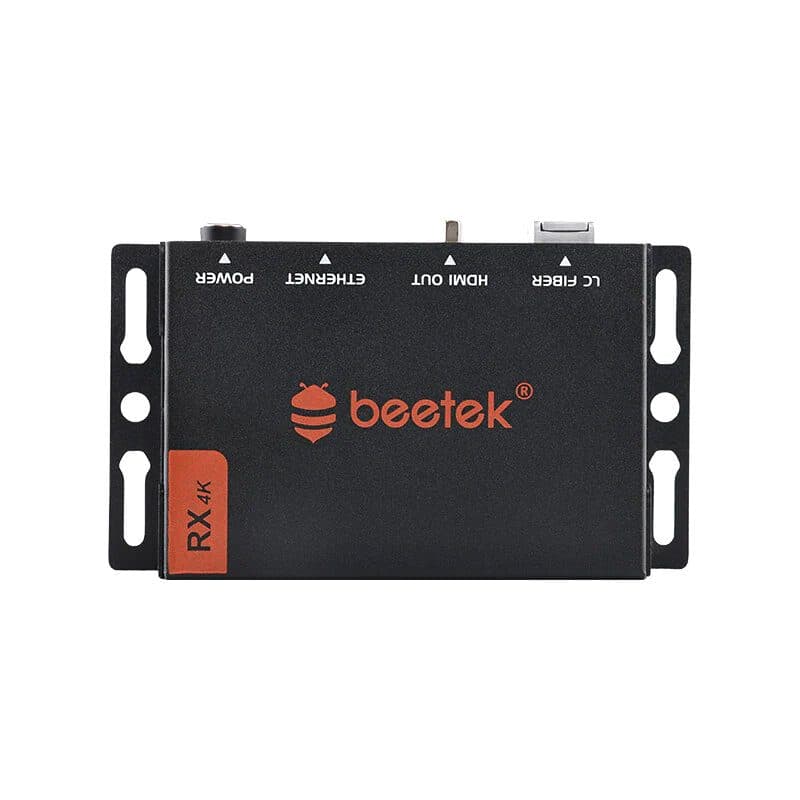

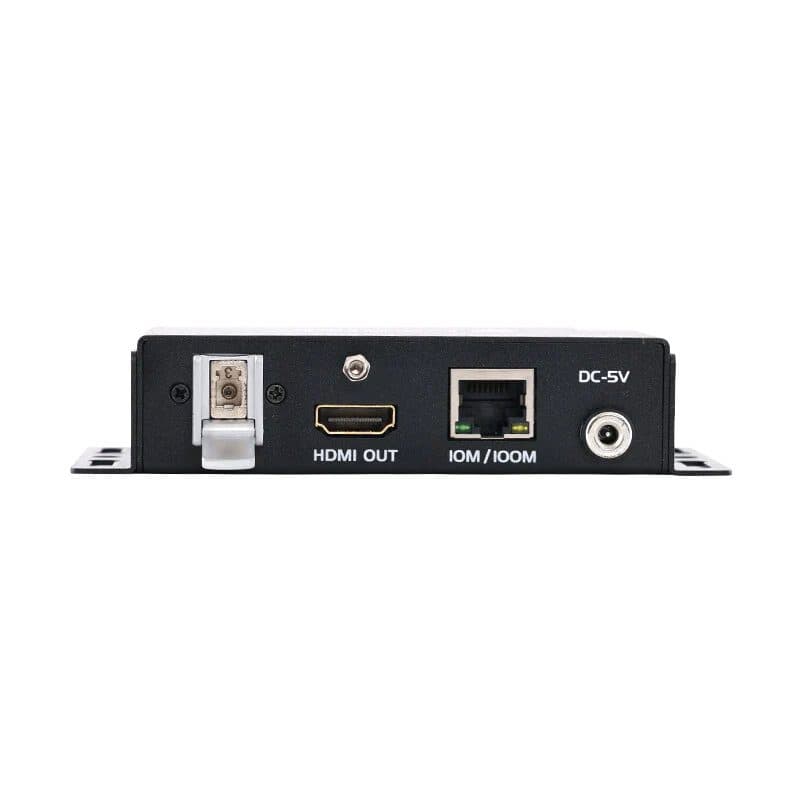

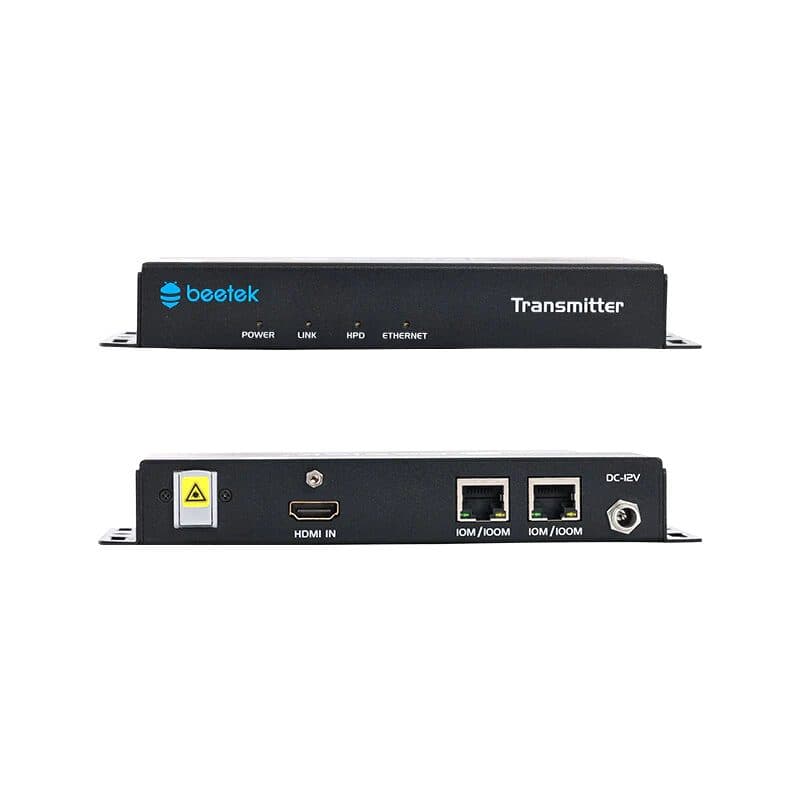

Beetek M1-HDMI1.4 è un extender in fibra ottica per HDMI 1.4 fino a 4K @ 60 4:2:0 a 10,2 Gbps, con Ethernet, RS232 bidirezionale e pass-through IR; il kit include trasmettitore TX 4K e ricevitore RX 4K. I moduli gestiscono Audio ARC, 3D ed Ethernet ad alta velocità per la maggior parte delle applicazioni residenziali e integrano protezione ESD migliorata. Adatto a noleggio, eventi live, corporate, residenziale e sorveglianza.
Risoluzione fino a 4K @ 60 4:2:0, fibra mono-modale, HDCP 2.2 ed EDID pass-through trasparente; fino a 300 m con un singolo cavo LC.
| 3D | yes |
|---|---|
| Ambient temp. | -20 to 70 °C |
| ARC | yes |
| Balancing chip | automatic equalization |
| CEC | yes |
| Clock bandwidth | 3 x 340 MHz |
| Compression | none |
| DDC | yes |
| Delay | zero-frame |
| Dimensions | TX 185 x 95 x 26 mm, RX 125 x 70 x 26 mm |
| ESD protection | yes |
| Fiber interface dust prevention | yes |
| Fiber type | single-mode G657.A1 |
| HDCP | yes |
| HDMI audio | yes |
| Hot plug | yes |
| Indicator LED | signal, power, network port and hot-plug 4 way indicator |
| Input connectors | TX: female HDMI Type A, 2 x RJ45 |
| Locking power connector | yes |
| Material | metal mold |
| Optical module | 1 x 12 G, 2 x 2.5 G 3-channel single-mode optical module |
| Output connector | TX: single-core LC |
| Package dimensions | 270 x 157 x 136 mm |
| Package weight | 1.3 kg |

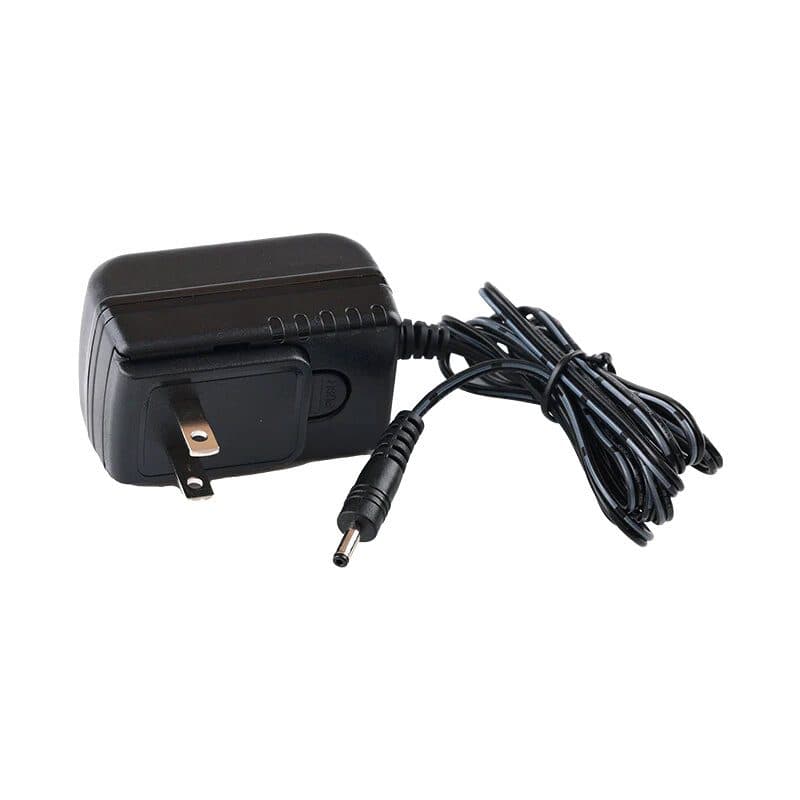

| Power supply | TX 12 V DC 2 A, RX 5 V DC |
| Reclocking | yes |
| Resolution | 3840 x 2160 @ 30 Hz |
| RX | single-core LC |
| Sampling rate | bandwidth range 8 - 16 bit |
| Sampling ratio | RGB 4:4:4 , YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 |
| Signal | HDMI 1.4 |
| Technical characteristics | circuit-multiplexing SerDes technology, 3-wave CWDM technology |
Codice 101655
Prezzo per 1 unità
1149,06 € (IVA inclusa)
941,85 € + IVA
Quantità
| Transmission distance | single-mode 300 m |
|---|
| Transmission speed | 10.2 Gbps |
|---|
| Weight | TX 0.53 kg, RX 0.35 kg |
|---|
