1000015534 - Celexon CEL-1000015534
Codice CEL-1000015534
Prezzo per 1 unità
107,66 € (IVA inclusa)
88,25 € + IVA
Quantità

SKU BEE-SH802-2M
Prezzo per 1 unità
27,95 €
22,91 € + IVA

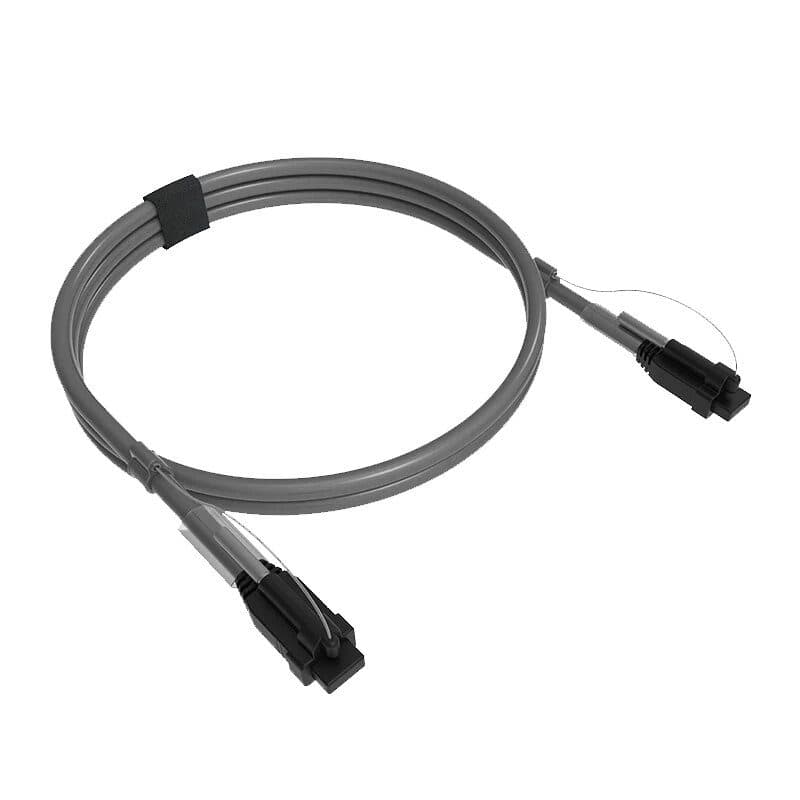

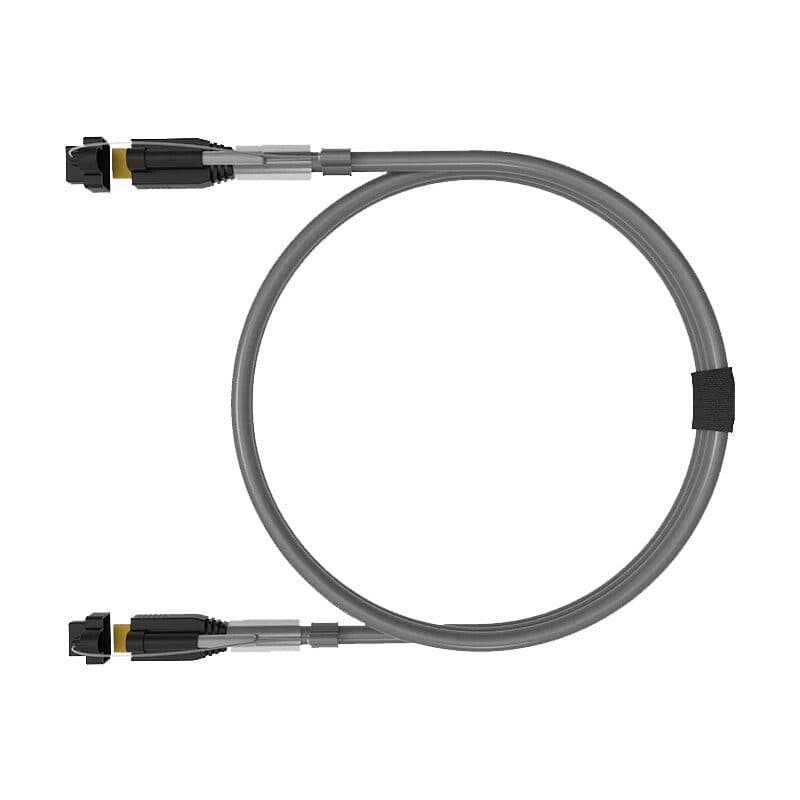

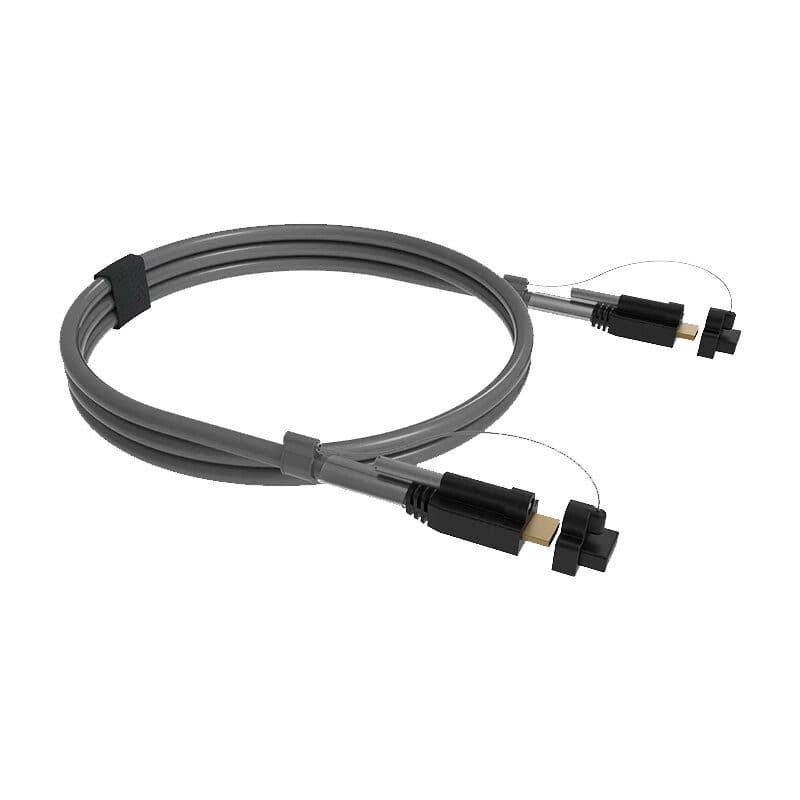

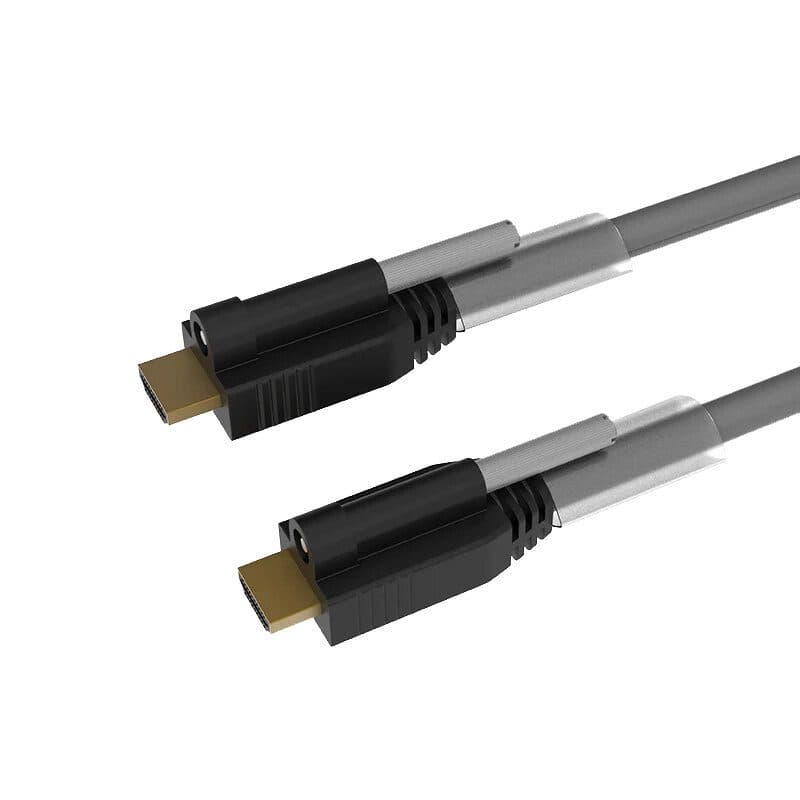

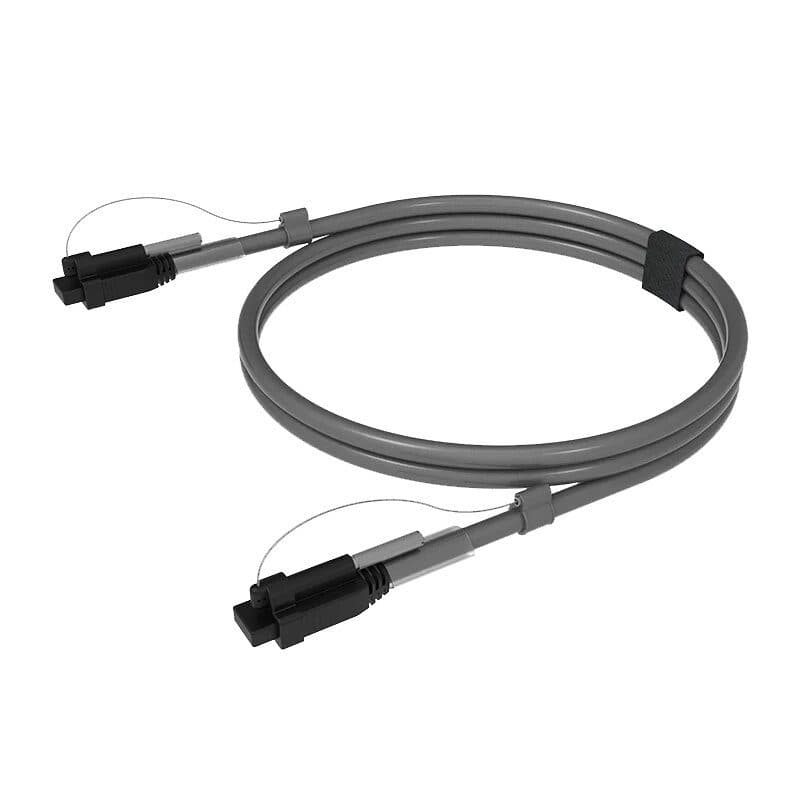

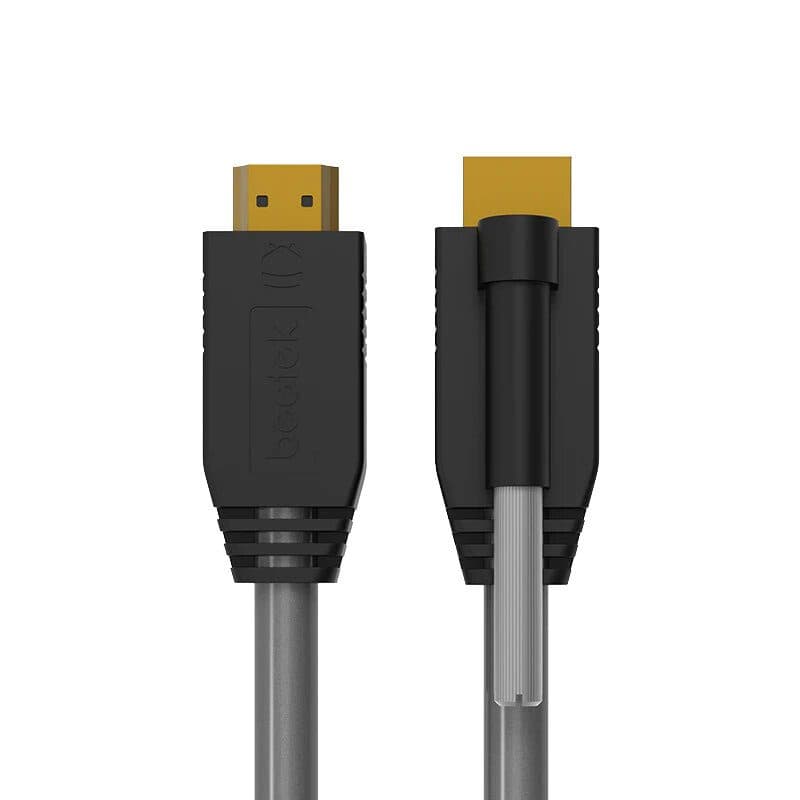

Cavo adattatore HDMI 2.0 a DVI da 2 m con velocità fino a 18 Gbps. Conduttore in rame stagnato multifilo 28 AWG con tripla schermatura, guaina in silicone liquido e connettori con pin placcati in oro da 15 μm e blocco a vite.
| 3D | yes |
|---|---|
| ARC | yes |
| Braid material | 16 x 10 braided copper wire |
| Cable color | fluorescent gray |
| Cable diameter | 8.5 mm |
| Cable meter marking | waterproof yellow text |
| CEC | yes |
| Clock bandwidth | 600 MHz x 3 |
| Color sampling rate | RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 |
| Components | conductor + copper foil + Mylar + braid + jacket |
| Compression | none |
| Conductor diameter | 28AWG |
| Conductor material | stranded tinned copper |
| Connector dimensions | 54 x 20.8 x 20.6 mm |
| Connector gold plating | shell: 3 μm; pins: 15 μm |
| Connector structure | plug plate + inner mold + tinplate + copper foil+ shell + screw + protective cap |
| Connector type | HDMI Type A Male - HDMI Type A Male |
| Copper foil | double-sided conductive copper foil |
| Custom label | heat-shrink transparent tubing on both ends for custom labels |
| DDC | yes |
| Deep color | yes |
| Delay | zero |
| EDID | yes |
| Environmental info | RoHS 2.0 compliant |
| HDCP | yes |
| HDMI audio | yes |
| HDR | yes |
| Internal mold | transparent PE material |
| Jacket material | 90P PVC (UL, RoHS) |
| Lockable screw | stainless steel locking screw |
| Plug & Play |
Codice CEL-1000015534
Prezzo per 1 unità
107,66 € (IVA inclusa)
88,25 € + IVA
Quantità
| yes |
| Protective cap | detachable cap with cord leash |
|---|
| Shell | 45P PVC injection molded shell (UL, RoHS) |
|---|
| Shielding rate | 7 mesh, 85% shielding rate |
|---|
| Signal type | HDMI 2.0 |
|---|
| Supported resolutions | 3840 x 2160 @ 60 Hz |
|---|
| Tinplate | upper and lower assembled tinplate |
|---|
| Transmission rate | 18 Gbps |
|---|
| Velcro | P-shaped Velcro Strap: 20 x 200 mm |
|---|
| XvYCC color space | yes |
|---|
