1000015534 - Celexon CEL-1000015534
Codice CEL-1000015534
Prezzo per 1 unità
107,66 € (IVA inclusa)
88,25 € + IVA
Quantità

SKU BEE-STH905-2.5M
Prezzo per 1 unità
60,02 €
49,19 € + IVA

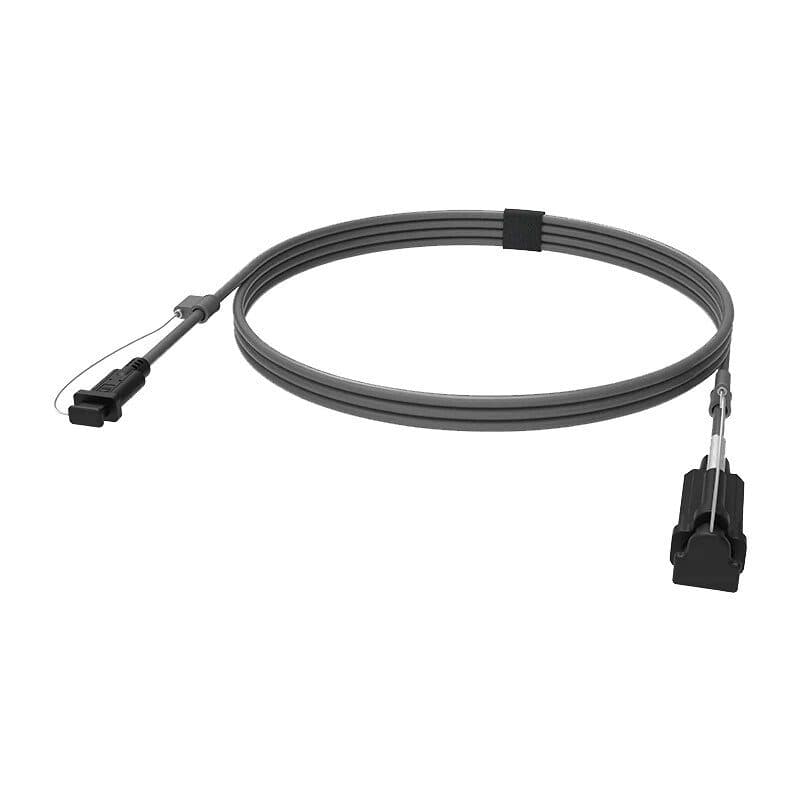

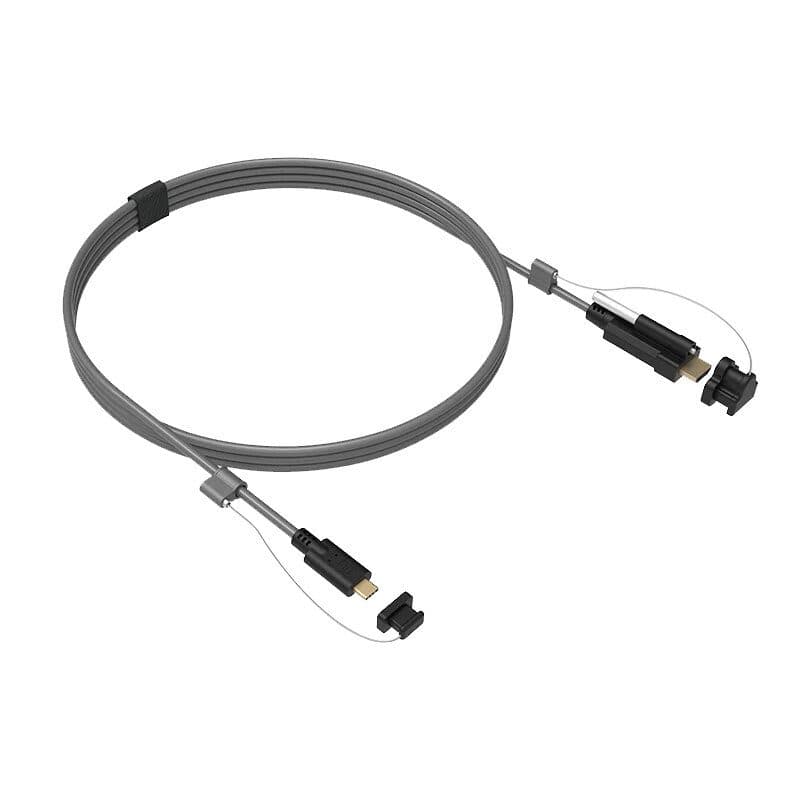

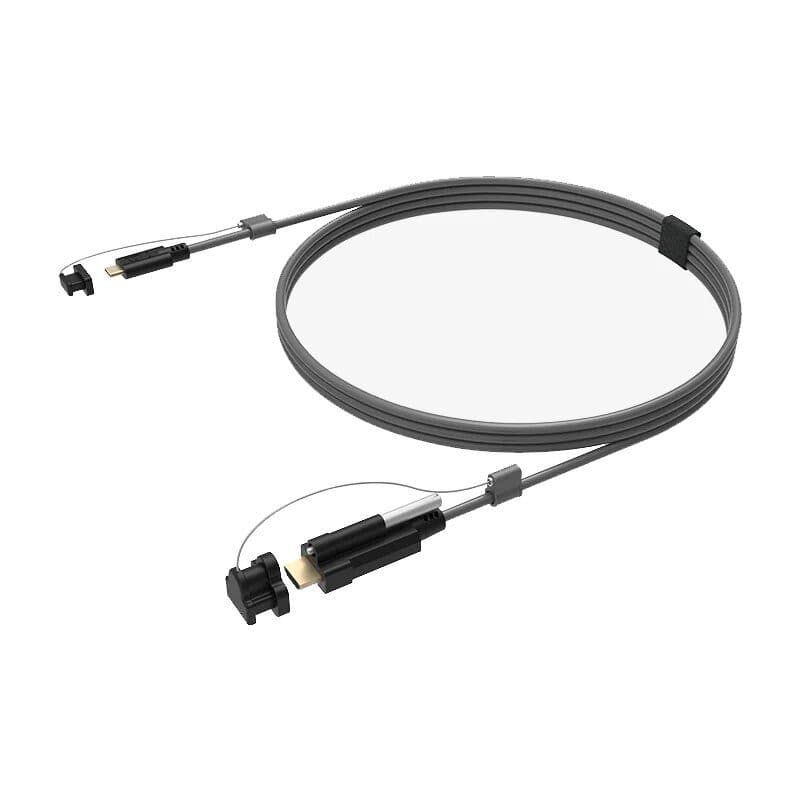

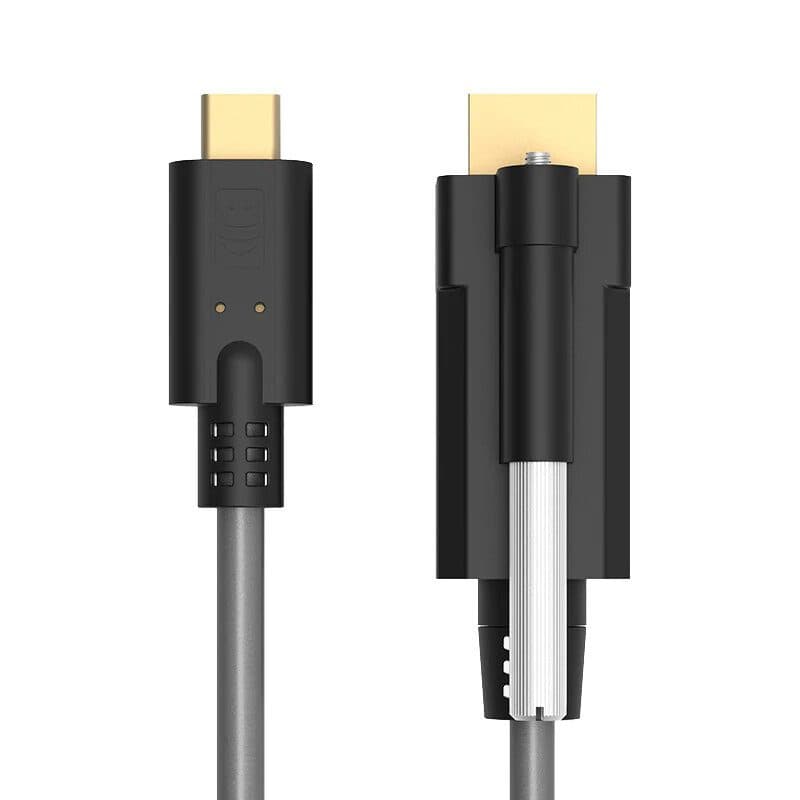

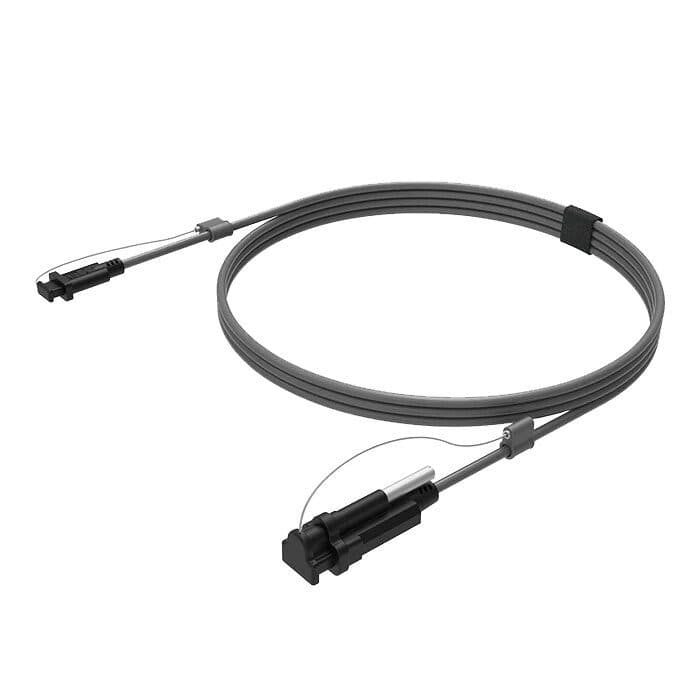

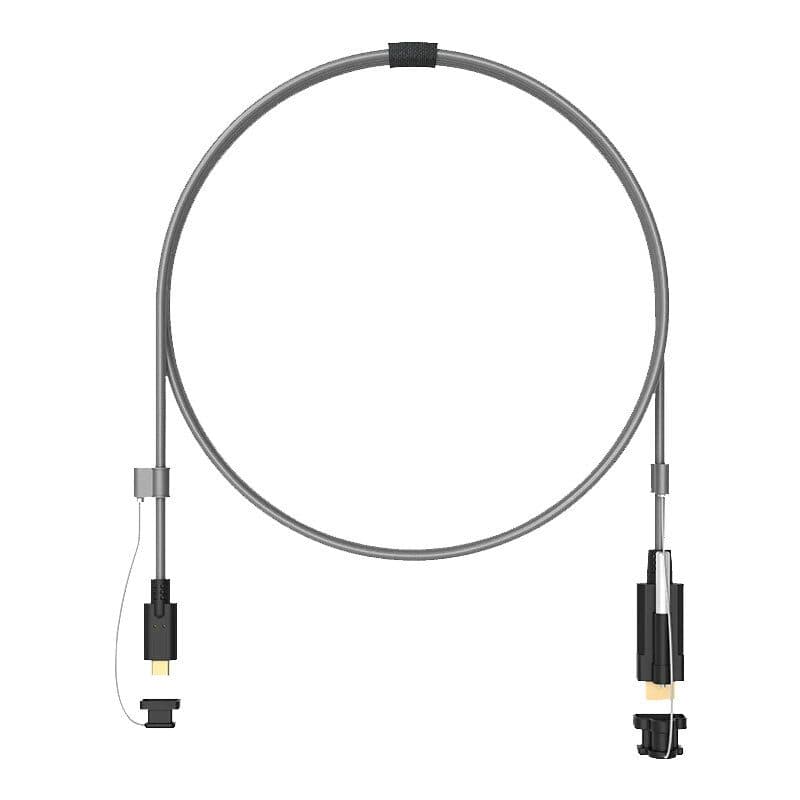

Cavo adattatore USB Type-C a HDMI 2.0 da 2,5 m con velocità fino a 18 Gbps e risoluzioni fino a 3840 x 2160 @ 60 Hz 4:4:4. Progettato secondo USB 3.1 con conversione attiva e chip anti-statico da 15 kV integrato.
| 3D | yes |
|---|---|
| ARC | yes |
| Braid material | 16 x 10 braided copper wire |
| Cable color | black |
| Cable diameter | 5.0 mm |
| Cable meter marking | waterproof text |
| CEC | yes |
| Clock bandwidth | 600 MHz x 3 |
| Color sampling rate | RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 |
| Components | conductor + copper foil + Mylar + braid + jacket |
| Compression | none |
| Conductor diameter | 30AWG |
| Conductor material | stranded tinned copper |
| Connector dimensions | HDMI: 67.4 x 20.8 x 20.3 mm; Type-C: 39.7 x 13.5 x 7 mm |
| Connector gold plating | shell 3 μm; pins 15 μm |
| Connector structure (HDMI) | active PCB board + SR outer mold + shell + screw + protective cap |
| Conversion method | active |
| DDC | yes |
| Deep color | yes |
| Delay | zero |
| EDID | yes |
| Environmental info | RoHS 2.0 compliant |
| ESD | yes |
| HDCP | yes |
| HDMI | zinc alloy upper and lower assembled shell |
| HDMI audio | yes |
| HDR | yes |
| Input connector type | USB Type-C |
| Jacket material | silicone |
| Locking connector (HDMI) | stainless steel screw |
| Output connector type | HDMI Type A |
Codice CEL-1000015534
Prezzo per 1 unità
107,66 € (IVA inclusa)
88,25 € + IVA
Quantità
| Plug & Play |
|---|
| yes |
| Protective cap | detachable cap with cord leash |
|---|
| Shell | Type-C: injection-molded shell (UL, RoHS) |
|---|
| Shielding rate | 7 mesh, 85% shielding rate |
|---|
| Signal type | USB 3.1 to HDMI 2.0 |
|---|
| SR outer mold (HDMI) | black injection mold |
|---|
| Supported resolutions | 3840 x 2160 @ 60 Hz |
|---|
| Transmission rate | 18 Gbps |
|---|
| XvYCC color space | yes |
|---|
