SKU BEE-BHH-10M
Prezzo per 1 unità
32,06 €
26,28 € + IVA
Cavo HDMI 2.0 in rame da 10 m, supporta 4K @ 60 4:4:4 a 18 Gbps, HDCP 2.2, ARC, HDR, CEC, EDID trasparente, Ethernet ad alta velocità e 3D. Guaina a doppio strato con schermatura intrecciata al 95% e connettori placcati in oro.

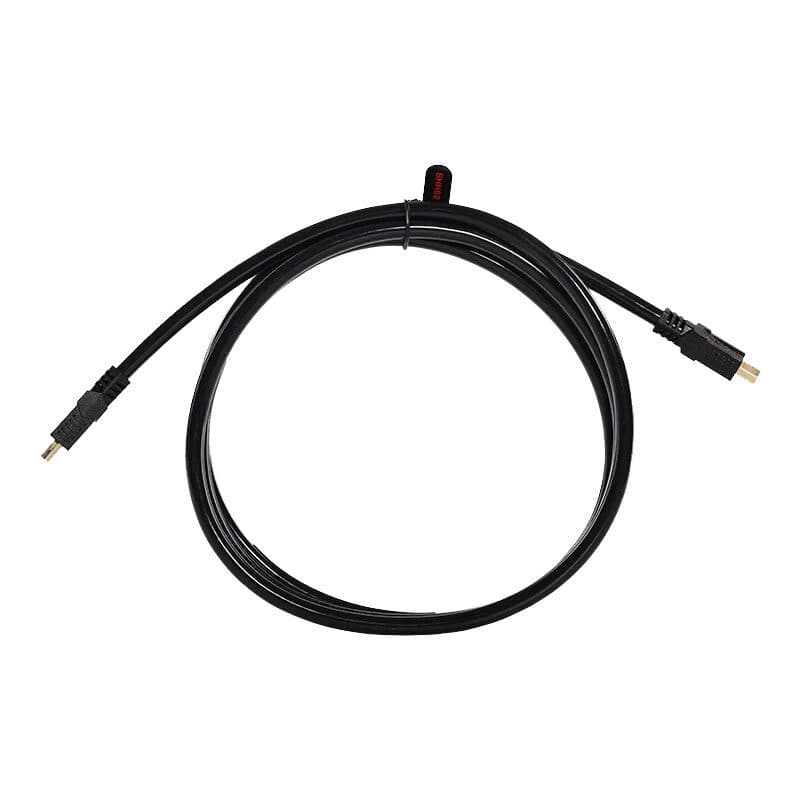

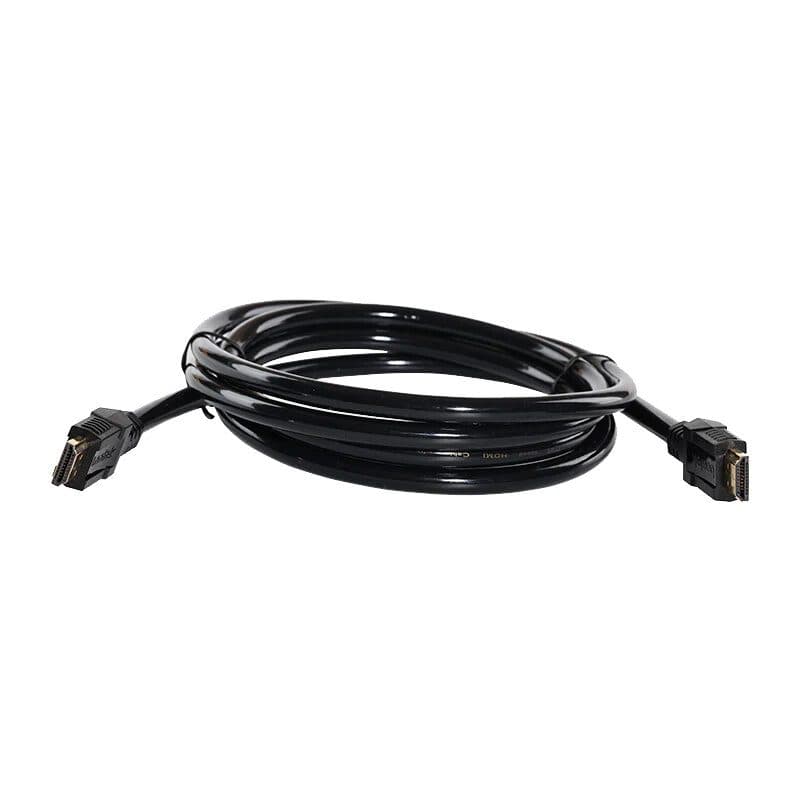

Il cavo HDMI 2.0 in rame Beetek BEE-BHH-10M supporta la risoluzione 4K @ 60 4:4:4 con banda di trasmissione a 18 Gbps, trasmissione EDID trasparente, Ethernet ad alta velocità, ARC-CEC e 3D. La lunghezza è di 10 m. È indicato per applicazioni rental, eventi dal vivo, ambienti residenziali e sistemi di sorveglianza.

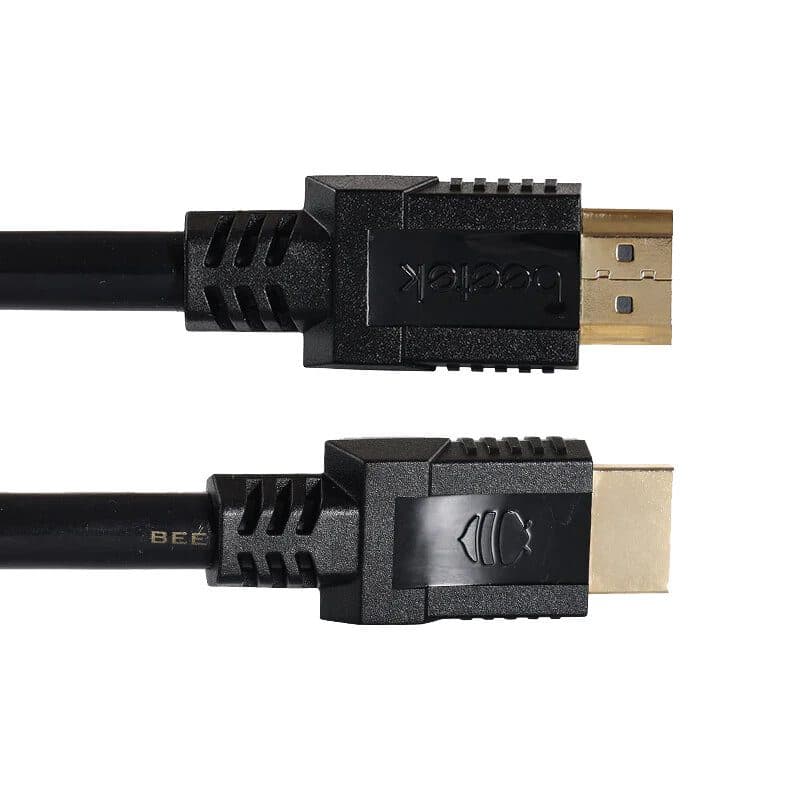

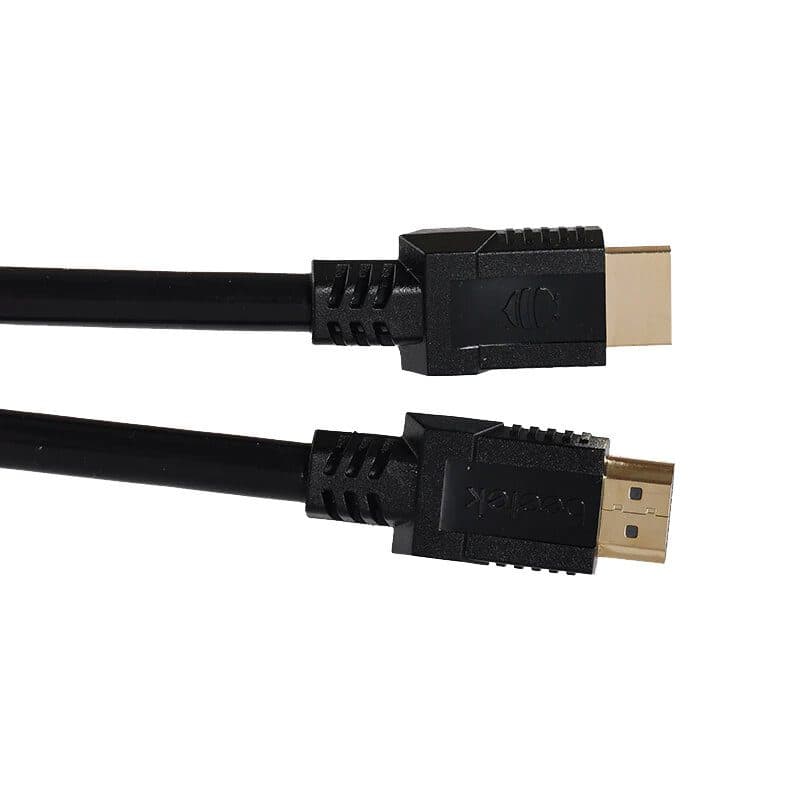

I connettori in rame placcati in oro favoriscono una connessione stabile e duratura. La guaina esterna a doppio strato integra una schermatura intrecciata al 95%. Il cavo supporta risoluzioni fino a 4K @ 60 4:4:4, HDCP 2.2, ARC, HDR e CEC.
| 3D | yes |
|---|---|
| ARC | yes |
| Braid material | 144 aluminum-magnesium braids |
| Cable color | gloss black |
| Cable diameter | 8.5 mm |
| Cable meter marking | waterproof yellow text |
| CEC | yes |
| Clock bandwidth | 600 MHz × 3 |
| Compatibility | backward compatible with HDMI and DVI-SL |
| Components | conductor + copper foil + Mylar + braid + jacket |
| Compression | none |
| Conductor diameter | 26AWG |
| Conductor material | single core tinned copper |
| Connector dimensions | 49.4 x 20 x 12 mm |
| Connector gold plating | 1 μm |
| Connector structure | plug plate + inner mold + copper foil + shell |
| Copper foil | double-sided conductive copper foil |
| DDC channel | yes |
| Deep color | yes |
| Delay | zero |
| EDID | yes |
| Electrical test (voltage) | 300 V DC |
| Environmental info | RoHS 2.0 compliant |
| HDCP | yes |
| HDMI audio | yes |
| HDR | yes |
| Impedance test (continuity) | on-resistance ≤ 2 ohm |
| Impedance test (insulation) | insulation resistance ≥ 10 Mohm |
| Input connector type | HDMI Type A male - HDMI Type A male |
| Jacket material | black PVC + transparent PVC dual-layered outer jacket (UL, RoHS) |
Codice CEL-1000015534
Prezzo per 1 unità
107,66 € (IVA inclusa)
88,25 € + IVA
Quantità
| Lenght |
|---|
| 10 m |
| Plug & Play | yes |
|---|
| Sampling rate | RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 |
|---|
| Shell | 45P PVC injection molded shell (UL, RoHS) |
|---|
| Shielding rate | 95% shielding rate |
|---|
| Signal type | HDMI 2.0 |
|---|
| Supported resolutions | 3840 x 2160 @ 60 Hz |
|---|
| Tensile strength | ≤ 400 N |
|---|
| Transmission rate | 18 Gbps |
|---|
| XvYCC color space | yes |
|---|
