1000015534 - Celexon CEL-1000015534
Codice CEL-1000015534
Prezzo per 1 unità
107,66 € (IVA inclusa)
88,25 € + IVA
Quantità

SKU BEE-H21-HTSIL-2M
Prezzo per 1 unità
28,27 €
23,17 € + IVA

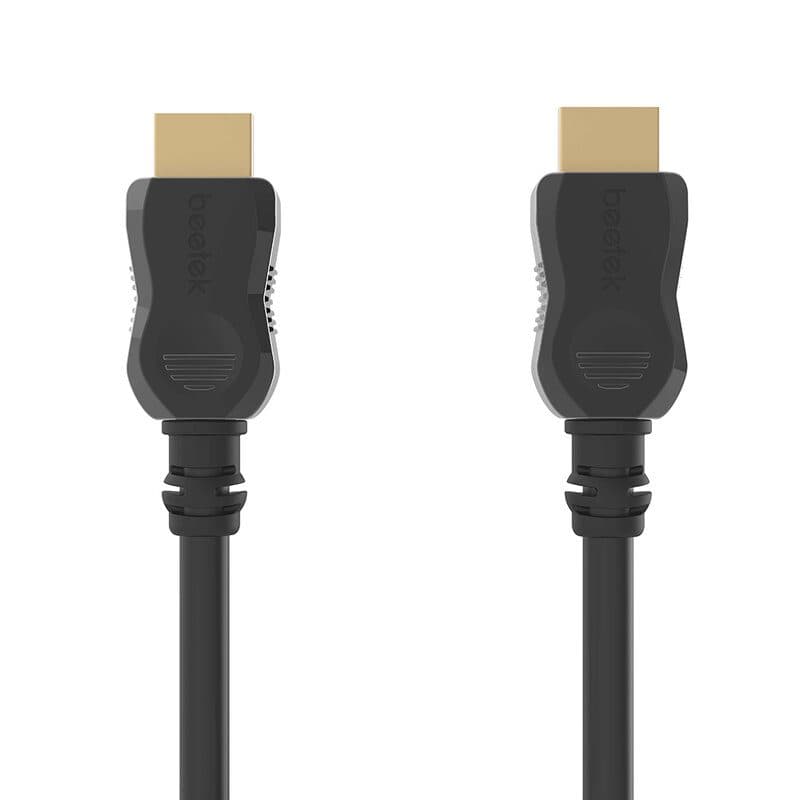

Cavo HDMI 8K premium Beetek da 2 m in silicone, conforme HDMI 2.1 con 48 Gbps fino a 7680 x 4320 a 60 Hz. Rame argentato 28 AWG, connettori plug-sure con pin placcati in oro da 15 μm e guaina anti-groviglio.
| 3D | yes |
|---|---|
| ARC | yes |
| Braid material | braided copper wire |
| Cable color | graphite black |
| Cable diameter | 7.0 ±0.2 mm |
| CEC | yes |
| Clock bandwidth | 1600 MHz x 3 |
| Compatibility | backward compatible with HDMI and DVI-SL |
| Components | conductor + drain (copper) + PTFE tape + filler + aluminum foil + mylar + braid + silicone jacket |
| Compression | none |
| Conductor gauge | 28AWG |
| Conductor material | silver-plated copper stranded |
| Connector fastening type | Plug-sure type HDMI connector |
| Connector gold plating | 15 μm |
| Connector size | 42 x 22 x 12 mm |
| Connector structure | plug plate + inner mold + copper foil + shell |
| Connector type | HDMI TypeA male - HDMI TypeA male |
| DDC | yes |
| Deep color | yes |
| Delay | zero |
| EDID | yes |
| Electrical test (voltage) | 300 V DC |
| Environmental info | RoHS 2.0 compliant |
| HDCP | yes |
| HDMI audio | yes |
| HDR | yes |
| Impedance test (continuity) | on-resistance ≤ 2 ohm |
| Impedance test (insulation) | insulation resistance ≥ 10 Mohm |
| Jacket material | silicone |
| Lenght | 2 m |
| Plug and play | yes |
Codice CEL-1000015534
Prezzo per 1 unità
107,66 € (IVA inclusa)
88,25 € + IVA
Quantità
| Sampling rate |
|---|
| RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 |
| Shell | gloss zinc alloy |
|---|
| Shield coverage | 75% |
|---|
| Signal type | HDMI 2.1 |
|---|
| Strain relief (SR) | silicone |
|---|
| Supported resolutions | 7680 x 4320 @ 60 Hz |
|---|
| Tensile strength | ≤ 400 N |
|---|
| Transmission rate | 48 Gbps |
|---|
| XvYCC color space | yes |
|---|
