1000015534 - Celexon CEL-1000015534
Codice CEL-1000015534
Prezzo per 1 unità
107,66 € (IVA inclusa)
88,25 € + IVA
Quantità

SKU BEE-TH905-5M
Prezzo per 1 unità
61,88 €
50,72 € + IVA

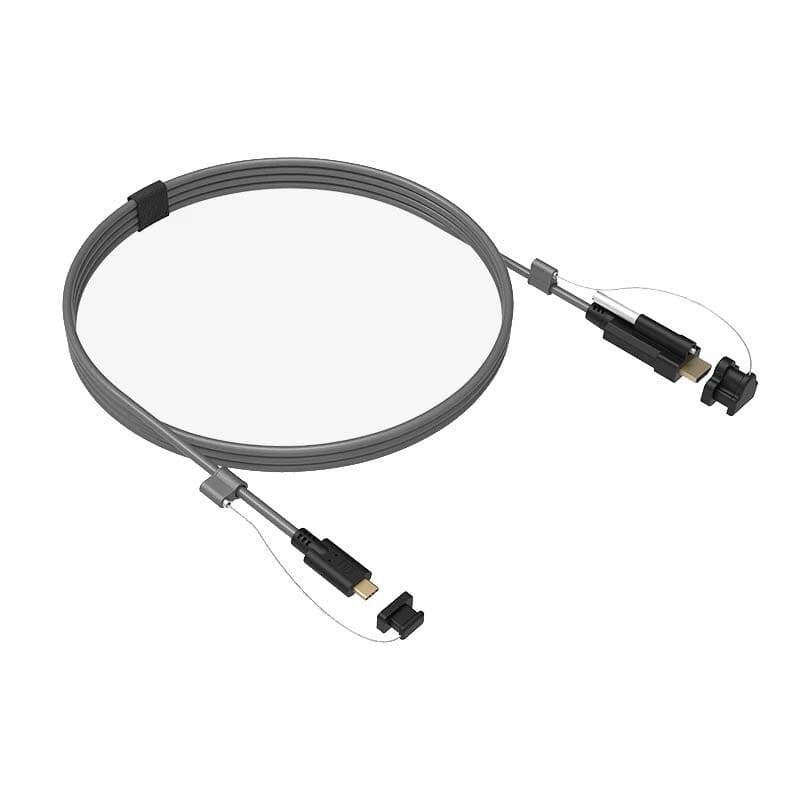

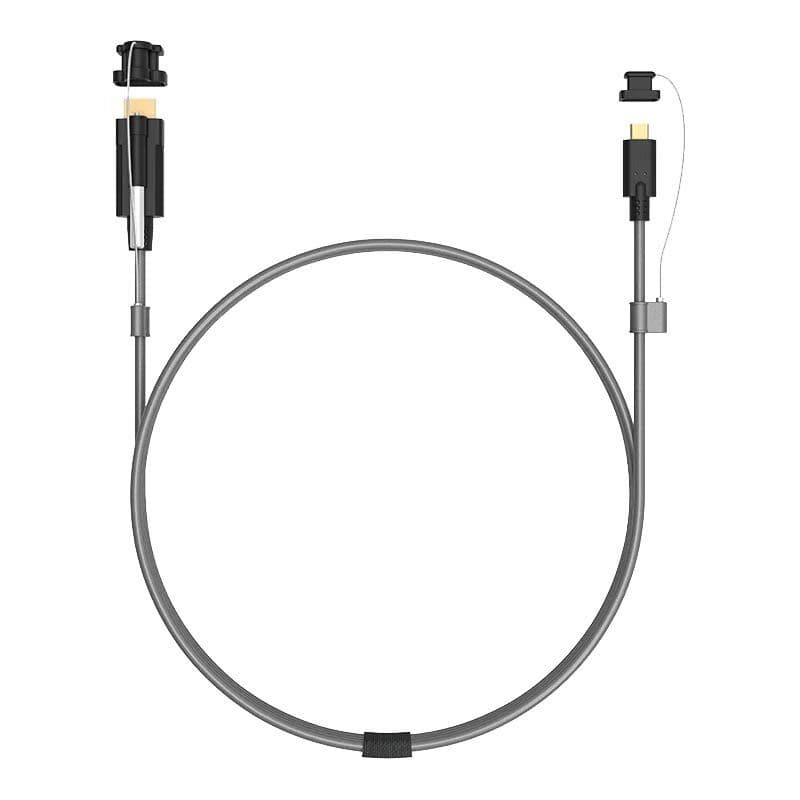

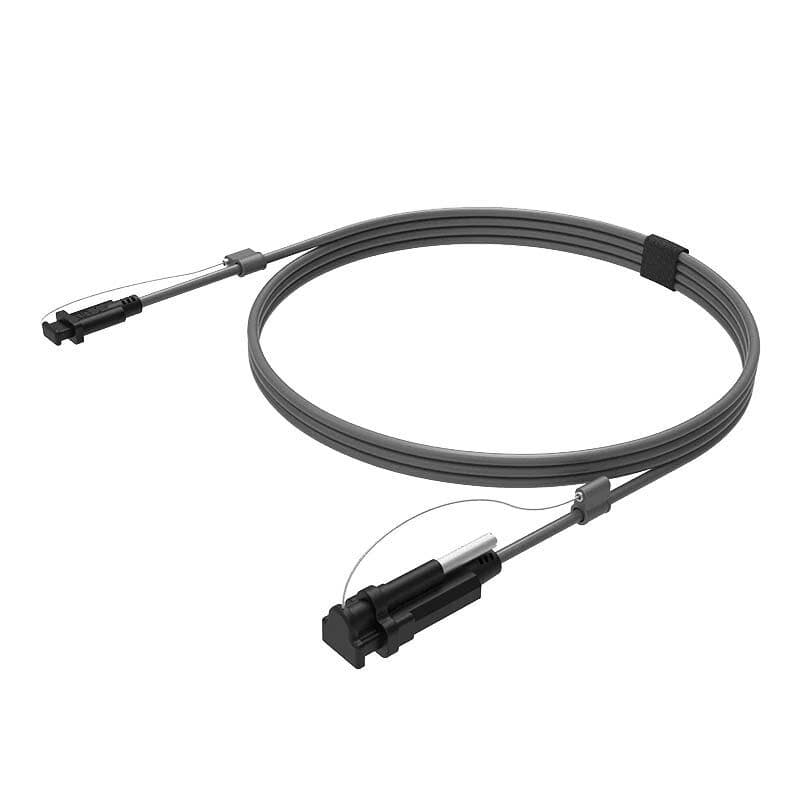

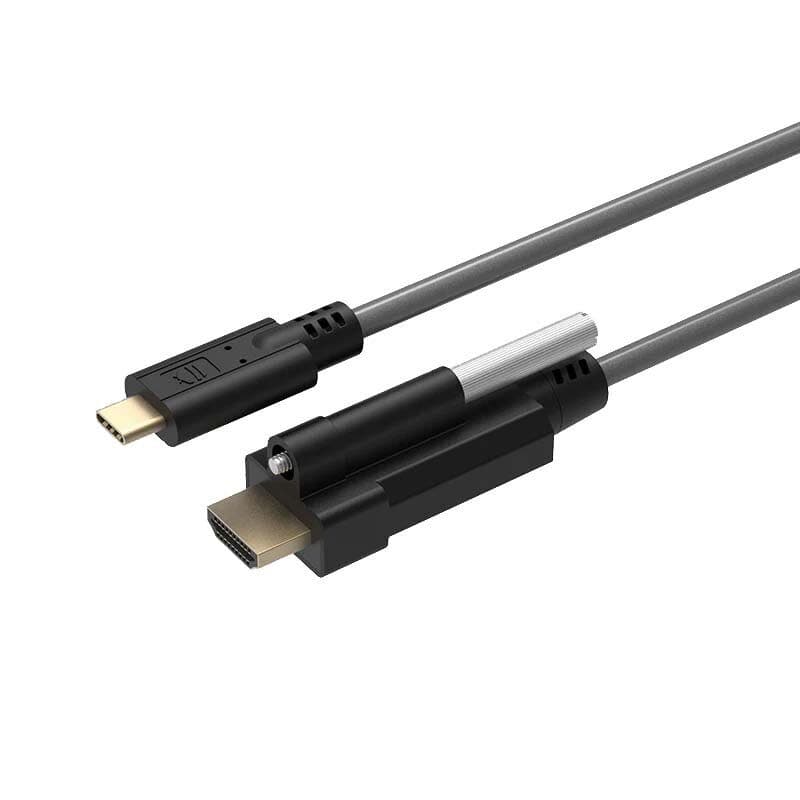

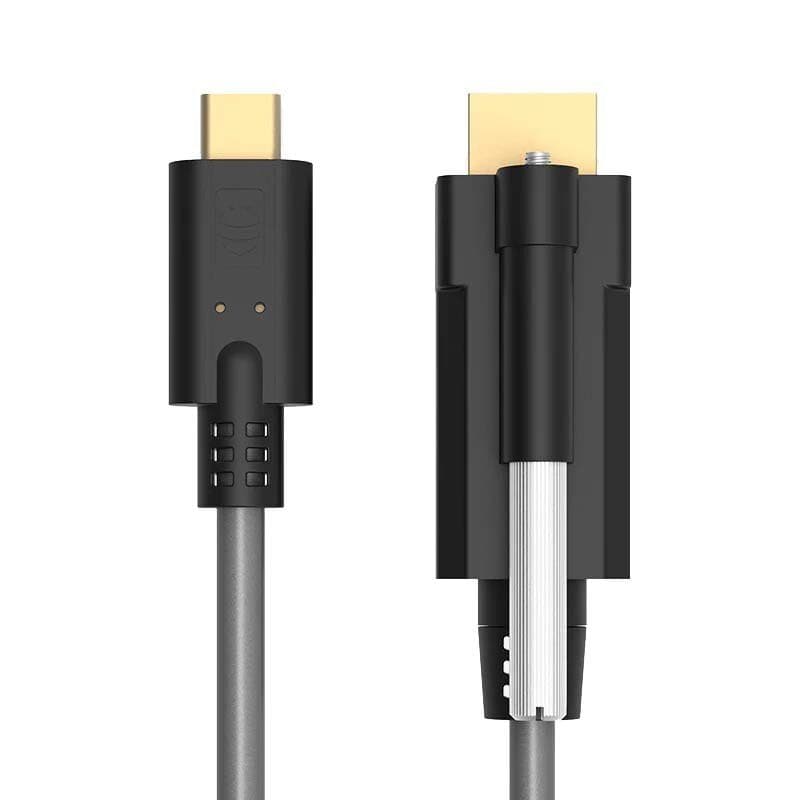

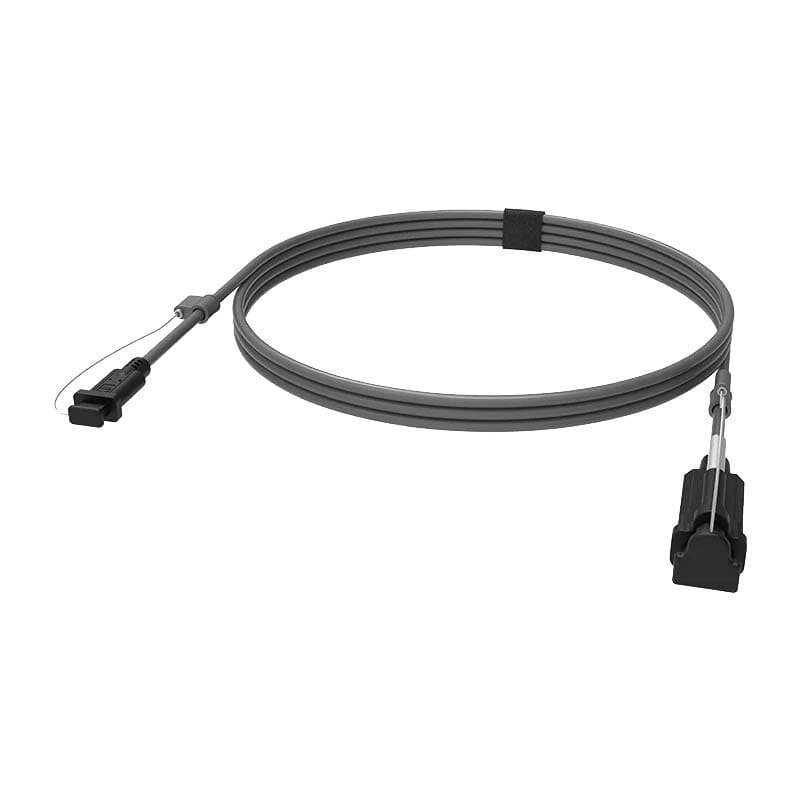

Cavo adattatore USB 3.1 Type C-HDMI da 5 m con conversione attiva, fino a 3840x2160 o 4096x2160 @ 60 Hz RGB 4:4:4. Supporta EDID pass-through, CEC e audio; connettore HDMI bloccabile con vite in acciaio inossidabile.
| 3D | yes |
|---|---|
| ARC | yes |
| Braid material | 16 x 10 braided copper wire |
| Cable color | fluorescent gray |
| Cable diameter | 5.4 mm |
| Cable meter marking | waterproof yellow text |
| CEC | yes |
| Clock bandwidth | 600 MHz × 3 |
| Components | conductor + copper foil + Mylar + braid + jacket |
| Conductor diameter | 30AWG |
| Conductor material | stranded tinned copper |
| Connector dimensions | HDMI 67.4 x 20.8 x 20.3 mm, Type C 42.2 x 14.8 x 8.9 mm |
| Connector gold plating | shell 3 μm, pins 15 μm |
| Connector structure (HDMI) | active PCB board + SR outer mold + shell + screw + protective cap |
| Connector structure (Type C) | plug plate + inner mold + copper foil + shell |
| Conversion method | active |
| Copper foil (Type C) | double-sided conductive copper foil |
| DDC | yes |
| Delay | zero |
| EDID | yes |
| Environmental info | RoHS 2.0 compliant |
| ESD | yes |
| HDCP | yes |
| HDMI audio | yes |
| HDR | yes |
| Input connector type | USB Type C male |
| Jacket material | 90P PVC (UL, RoHS) |
| Lenght | 5 m |
| Locking connector (HDMI) | stainless steel screw |
| Output connector type | HDMI Type A male |
Codice CEL-1000015534
Prezzo per 1 unità
107,66 € (IVA inclusa)
88,25 € + IVA
Quantità
| Plug and play |
|---|
| yes |
| Protective cap | detachable cap with cord leash |
|---|
| Shell | Type C 45P black PVC injection molded shell (UL, RoHS), HDMI zinc alloy upper and lower assembled shell |
|---|
| Shielding rate | 7 mesh 85% shielding rate |
|---|
| Signal type | USB 3.1, HDMI 2.0 |
|---|
| SR outer mold (HDMI) | 45P black PVC injection mold |
|---|
| Supported resolutions | 3840 x 2160 @ 60 Hz |
|---|
| Transmission rate | 18 Gbps |
|---|
| Velcro | P-shaped Velcro Strap: 20 x 200 mm |
|---|
| XvYCC color space | yes |
|---|
