Superficie controllo audio live 40 fader 4 touchscreen - Blackmagic Design BLM-DVFL/AAFLP40
Codice BLM-DVFL/AAFLP40
Prezzo per 1 unità
7725,47 € (IVA inclusa)
6332,36 € + IVA
Quantità

SKU BLM-ULTMKEY12/A/HDMEAN 9338716007602
Prezzo per 1 unità
520,62 €
426,74 € + IVA

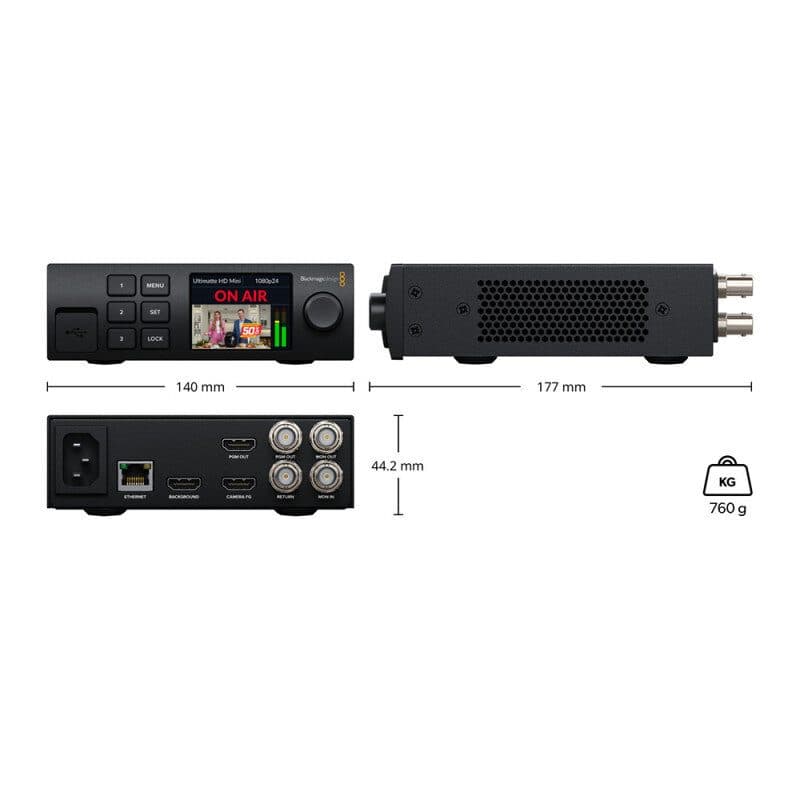

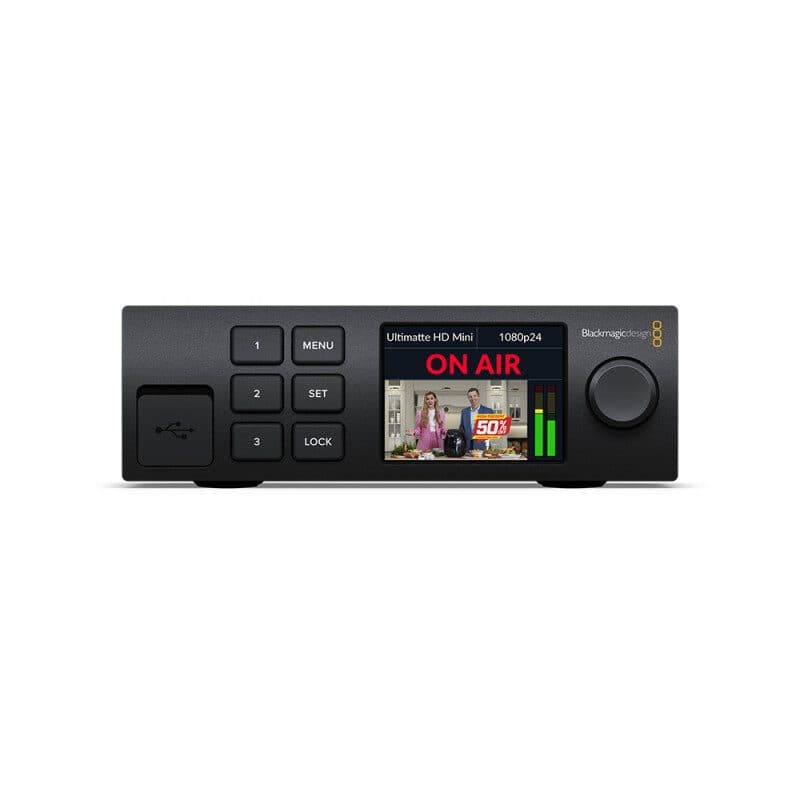

Keyer hardware in tempo reale per chroma key broadcast, set virtuali e compositing con camere HDMI. Archivio fotogrammi interno da 6 GB, elaborazione a 10 bit e integrazione con Blackmagic Studio Camera e switcher ATEM Mini.
| Background | 1 x HDMI in or still from media pool |
|---|---|
| Background matte | internal window or still from media pool |
| Background still image formats | TGA, TIFF, BMP, PNG, JPG |
| Background with alpha still image formats | TGA, TIFF, BMP |
| Built-in display | 2.2" color display for device name, video preview, video standard, audio meters, status and menus |
| Camera control | Blackmagic camera control and tally supported when used with compatible cameras and ATEM switchers |
| Color precision | 10 bit |
| Color space | REC 601, REC 709 |
| Computer interface | 1 x USB-C 3.0 for device configuration and software updates |
| Configuration | Ultimatte IP address set via front panel or Ultimatte setup utility connected via USB |
| Ethernet | up to 1 Gb/s for device control and loading stills into media pool |
| Foreground | 1 x HDMI in |
| Front panel | 2.2" color display, 3 preset buttons, 3 menu buttons and spin knob |
| Garbage matte | internal window or still from media pool |
| Garbage matte still image formats | TIFF, BMP, PNG, JPG |
| HD video standards | 1280 x 720p 50, 1280 x 720p 59.94, 1280 x 720p 60 |
| HDMI video inputs | 2 |
| HDMI video outputs | 1 |
| Holdout matte | internal window or still from media pool |
| Holdout matte still image formats | TIFF, BMP, PNG, JPG |
| Layer | still from media pool |
| Layer matte | internal window or still from media pool |
| Layer with alpha still image formats | TGA, TIFF, BMP |
Codice BLM-DVFL/AAFLP40
Prezzo per 1 unità
7725,47 € (IVA inclusa)
6332,36 € + IVA
Quantità
| Media pool memory |
|---|
| 6 GB non-volatile internal storage |
| Monitor IN | 1 x 3G-SDI for monitor cascade |
|---|
| Monitor OUT | 1 x 3G-SDI for monitoring program, foreground input, background input, combined matte, internal matte, fill out, layer input, background matte input, garbage matte input, holdout matte input, layer matte input, processed layer matte, processed holdout mat |
|---|
| Multiple rate support | auto detection of SD and HD |
|---|
| Operating systems | Mac 13.0 Ventura, Mac 14.0 Sonoma or later; Windows 10 64-bit; Windows 11 |
|---|
| Power supply | 1 x internal 100 - 240 V AC 50/60 Hz |
|---|
| Power usage | 12 W |
|---|
| Program | 1 x HDMI, 1 x 3G-SDI |
|---|
| SD video standards | 720 x 486i 59.94 NTSC, 720 x 576i 50 PAL |
|---|
| SDI compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B |
|---|
| SDI rates | 270 Mb, 1.5 G, 3 G |
|---|
| SDI video inputs | 2 monitor in for monitor cascade plus return in for camera control |
|---|
| SDI video outputs | 2 |
|---|
| Software control | Ultimatte Software Control supported on Mac and Windows computers |
|---|
| Software updates | using USB-C or Ethernet connection to Mac or Windows computers |
|---|
| Video input re-sync | on all inputs |
|---|
| Video sampling | 4:2:2 |
|---|
Codice BLM-DVFL/AAFLP20
Prezzo per 1 unità
3620,38 € (IVA inclusa)
2967,53 € + IVA
Quantità
Codice BLM-DVFL/AAFLP10
Prezzo per 1 unità
2267,97 € (IVA inclusa)
1859,00 € + IVA
Quantità
Codice BLM-ULTMSMTREM4G2
Prezzo per 1 unità
2471,43 € (IVA inclusa)
2025,77 € + IVA
Quantità
Codice BLM-CINTDOCKPRO
Prezzo per 1 unità
317,16 € (IVA inclusa)
259,97 € + IVA
Quantità
Codice BLM-ULTMKEY12/D/8K
Prezzo per 1 unità
7928,93 € (IVA inclusa)
6499,13 € + IVA
Quantità
Codice BLM-DV/RES/AAAPNLMIC/IT
Prezzo per 1 unità
532,58 € (IVA inclusa)
436,55 € + IVA
Quantità
Codice BLM-DV/RES/AAAPNLMIC/EN
Prezzo per 1 unità
429,66 € (IVA inclusa)
352,18 € + IVA
Quantità
