In magazzinoNuovo
Switcher presentazione modulare P80 con flight case - Pixelhue PIX-M04030158
Codice PIX-M04030158
Prezzo per 1 unità
41.602,51 € (IVA inclusa)
34.100,42 € + IVA
Quantità
Caricamento…
SKU BLM-SWATEMSCN4/1ME4/EAN 9338716006186
Prezzo per 1 unità
12.357,17 €
10.128,83 € + IVA

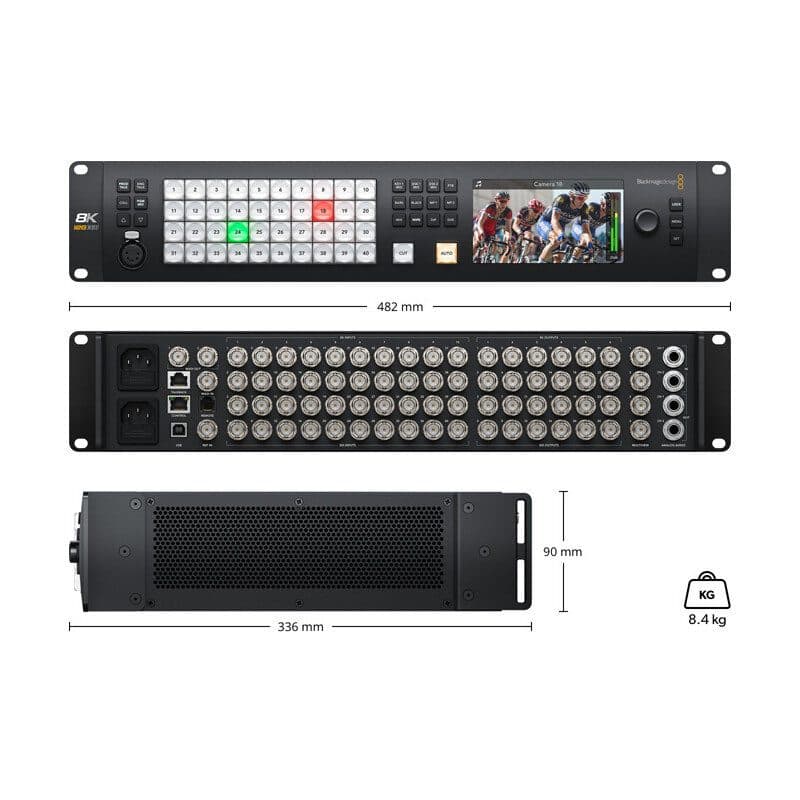

Switcher di produzione live 4 M/E Ultra HD con 40 ingressi 12G-SDI, 24 uscite aux 12G-SDI, 4 DVE, 16 Advanced Chroma Keyers, 4 media player, 4 multiview Ultra HD e 2 SuperSource. Talkback integrato, mixer Fairlight a 156 canali e conversione standard su tutti gli ingressi; nativo 8K.
| 8K video standards | 4320p 23.98, 4320p 24, 4320p 25, 4320p 29.97, 4320p 50, 4320p 59.94, 4320p 60 |
|---|---|
| Advanced chroma keyers | 16 x up to Ultra HD / 4 x in 8K |
| Color precision | 10-bit |
| Color space | REC 709, REC 2020 |
| Computer interface | 1 x USB 2.0 port |
| Control panel connection | Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network |
| Down converted SDI program output | none |
| Downstream keyers | 4 x up to Ultra HD / 2 x in 8K |
| Extra audio inputs | 1 x 5-pin XLR Talkback |
| Extra audio outputs | 1 x 5-pin XLR Talkback |
| Frame rate and format converters | on all 40 inputs |
| HD video standards | 720p 50, 720p 59.94, 720p 60; 1080i 50, 1080i 59.94, 1080i 60; 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 50, 1080p 59.94, 1080p 60 |
| HDMI multi view outputs | none |
| Internal Time Code generator | yes |
| Reference input | Tri-Sync or Black Burst |
| Remote | RJ12 supports RS-422 |
| SD video standards | none |
| SDI audio outputs | 16 CH embedded into SDI output on all outputs |
| SDI auto switching | automatically detects between level A and level B 3G-SDI, 6G-SDI and 12G-SDI. Requires 2SI in 8K mode |
| SDI compliance | SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10, SMPTE 2082‑12 |
| SDI multi view outputs | 4 |
| SDI preview outputs | any of the 24 SDI outputs |
| SDI program outputs |
Codice PIX-M04030158
Prezzo per 1 unità
41.602,51 € (IVA inclusa)
34.100,42 € + IVA
Quantità
| any of the 24 SDI outputs |
| SDI rates | 1.5G, 3G, 6G, 12G |
|---|
| SDI video inputs | 40 x 10-bit 720p, 1080i, 1080p, 2160p and 10 x 4320p switchable |
|---|
| SuperSource | 2 |
|---|
| Talkback | RJ45 for 3rd party talkback systems |
|---|
| Talkback support | yes |
|---|
| Tally output | added via Ethernet connection to Blackmagic Design GPI and Tally interface product (not included) |
|---|
| Time Code connections | none |
|---|
| Total audio inputs | 2 x balanced 1/4" jack, 1 x 32 stereo channel BNC MADI IN |
|---|
| Total audio outputs | 2 x balanced 1/4" jack, 2 x 32 stereo channel BNC MADI OUT |
|---|
| Total aux outputs | 24 x up to Ultra HD / 6 x in 8K |
|---|
| Total multi views | 4 x up to Ultra HD / 1 x in 8K |
|---|
| Total video inputs | 40 x up to Ultra HD / 10 x in 8K |
|---|
| Total video outputs | 28 x up to Ultra HD / 7 x in 8K |
|---|
| Ultra HD video standards | 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 50, 2160p 59.94, 2160p 60 |
|---|
| Upstream keyers | 16 x up to Ultra HD / 4 x in 8K with Chroma / Linear / Luma key |
|---|
| Video input re-sync | on all 40 inputs |
|---|
| Video sampling | 4:2:2 |
|---|
Codice PIX-M04030112
Prezzo per 1 unità
134.765,76 € (IVA inclusa)
110.463,74 € + IVA
Quantità
Codice PIX-M04030111
Prezzo per 1 unità
94.756,55 € (IVA inclusa)
77.669,30 € + IVA
Quantità
Codice PIX-M04030110
Prezzo per 1 unità
107.896,20 € (IVA inclusa)
88.439,50 € + IVA
Quantità
Codice PIX-M04030109
Prezzo per 1 unità
65.794,46 € (IVA inclusa)
53.929,89 € + IVA
Quantità
Codice PIX-M04030159
Prezzo per 1 unità
14.343,17 € (IVA inclusa)
11.756,70 € + IVA
Quantità
Codice PIX-M04030131
Prezzo per 1 unità
11.746,40 € (IVA inclusa)
9628,20 € + IVA
Quantità
Codice PIX-M04030130
Prezzo per 1 unità
5587,77 € (IVA inclusa)
4580,14 € + IVA
Quantità
