In magazzinoNuovo
Kit di montaggio a rack da 19 pollici per VT104 - DMT 101223
Codice 101223
Prezzo per 1 unità
30,73 € (IVA inclusa)
25,19 € + IVA
Quantità
Caricamento…
SKU BLM-CONVMASAEAN 9338716000429
Prezzo per 1 unità
269,54 €
220,93 € + IVA

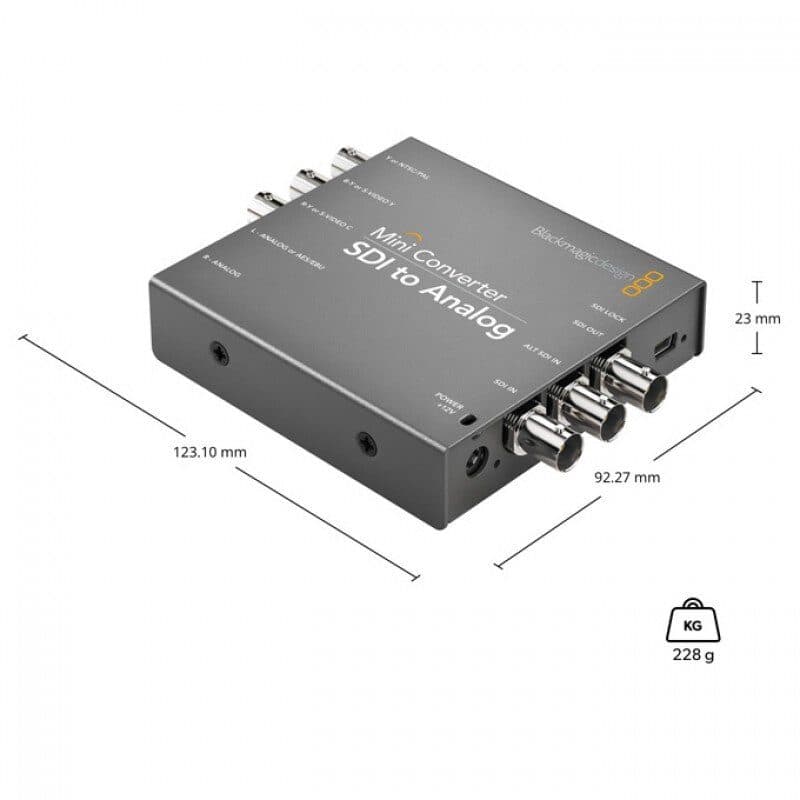

Convertitore da SD/HD-SDI a component analogico, S-Video o composito NTSC/PAL fino a 1080p 30. Down-converter integrato e de-embedding audio su uscita bilanciata o AES/EBU.
| Analog audio outputs | 2 channels of professional balanced analog audio with standard 1/4" jack connections |
|---|---|
| Analog color precision | 4:2:2 |
| Analog color space | YUV |
| Analog video outputs | NTSC, PAL, S‑Video and component SD/HD from 1.5G ‑ SDI input |
| Digital audio outputs | 2 channels of balanced AES/EBU audio |
| Dimensions | 12.3 x 9.2 x 2.3 cm |
| HD video standards | 720p 50, 720p 59.94, 720p 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080PsF 23.98, 1080PsF 24, 1080PsF 25, 1080PsF 29.97, 1080PsF 30, 1080i 50, 1080i 59.94, 1080i 60 |
| Internal software upgrade | via included updater application |
| Mac | 10.15 Catalina, 11.1 Big Sur or later |
| Multi rate support | auto detection of SD, HD or 1.5G‑SDI |
| Operating temperature | 0 to 40 °C |
| Operational voltage range | 12 ‑ 15 V DC |
| Power consumption | 8.04 W |
| Power supply | +12 V universal power supply included with international socket adapters for most countries. Cable tie point |
| Reclocking | yes |
| Relative humidity | 0 to 90 % non-condensing |
| SD video standards | 525i 59.94 NTSC, 625i 50 PAL |
| SDI audio sampling | television standard sample rate of 48 kHz and 24 bit |
| SDI auto switching | auto detection of SD, HD or 3G‑SDI |
| SDI color precision | 4:2:2 |
| SDI color space | YUV |
| SDI compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M level B, SMPTE 425M level B, ITU‑R BT.656 and ITU‑R BT.601 |
| SDI rates | 270 Mb, 1.5 G |
Codice 101223
Prezzo per 1 unità
30,73 € (IVA inclusa)
25,19 € + IVA
Quantità
| SDI redundant input |
|---|
| automatically switches over if main SDI input is lost |
| SDI video inputs | 1 x SD, HD or 1.5G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails |
|---|
| SDI video outputs | 1 x SDI loop output |
|---|
| SDI video rates | SDI video inputs are automatically detected between standard definition, high definition and level B 3G‑SDI |
|---|
| SDI video sampling | 4:2:2 |
|---|
| Software control | Mac and Windows software upgrade via USB |
|---|
| Storage temperature | -20 to 45 °C |
|---|
| Updates and configuration | USB |
|---|
| Weight | 0.3 kg |
|---|
| Windows | 10, 64-bit |
|---|
Codice 101222
Prezzo per 1 unità
79,27 € (IVA inclusa)
64,98 € + IVA
Quantità
Codice 101262
Prezzo per 1 unità
63,14 € (IVA inclusa)
51,75 € + IVA
Quantità
Codice 101261
Prezzo per 1 unità
126,27 € (IVA inclusa)
103,50 € + IVA
Quantità
Codice 101242
Prezzo per 1 unità
349,35 € (IVA inclusa)
286,35 € + IVA
Quantità
Codice 101241
Prezzo per 1 unità
209,05 € (IVA inclusa)
171,35 € + IVA
Quantità
Codice 101221
Prezzo per 1 unità
138,90 € (IVA inclusa)
113,85 € + IVA
Quantità
Codice 102500
Prezzo per 1 unità
46,16 € (IVA inclusa)
37,84 € + IVA
Quantità
