SKU BLM-CONVMCAUDS4KEAN 9338716002775
Prezzo per 1 unità
400,93 €
328,64 € + IVA
Incorpora audio analogico bilanciato o AES/EBU in sorgenti SDI fino a 4K 30, con formati SD, HD, 3G e 6G. Connettori da 1/4" per mixer, deck e router SDI.
| 2K video standards | 2Kp 23.98 DCI, 2Kp 24 DCI, 2Kp 25 DCI, 2Kp 29.97 DCI, 2Kp 30 DCI, 2Kp 47.95 DCI, 2Kp 48 DCI, 2Kp 50 DCI, 2Kp 59.94 DCI, 2Kp 60 DCI, 2KPsF 23.98 DCI, 2KPsF 24 DCI, 2KPsF 25 DCI, 2KPsF 29.97 DCI, 2KPsF 30 DCI |
|---|---|
| 4K video standards | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI |
| Analog audio inputs | 4 channels of professional balanced analog audio with standard 1/4" jack connections |
| Control | mini switches or USB software |
| Digital audio inputs | 8 channels balanced AES/EBU audio |

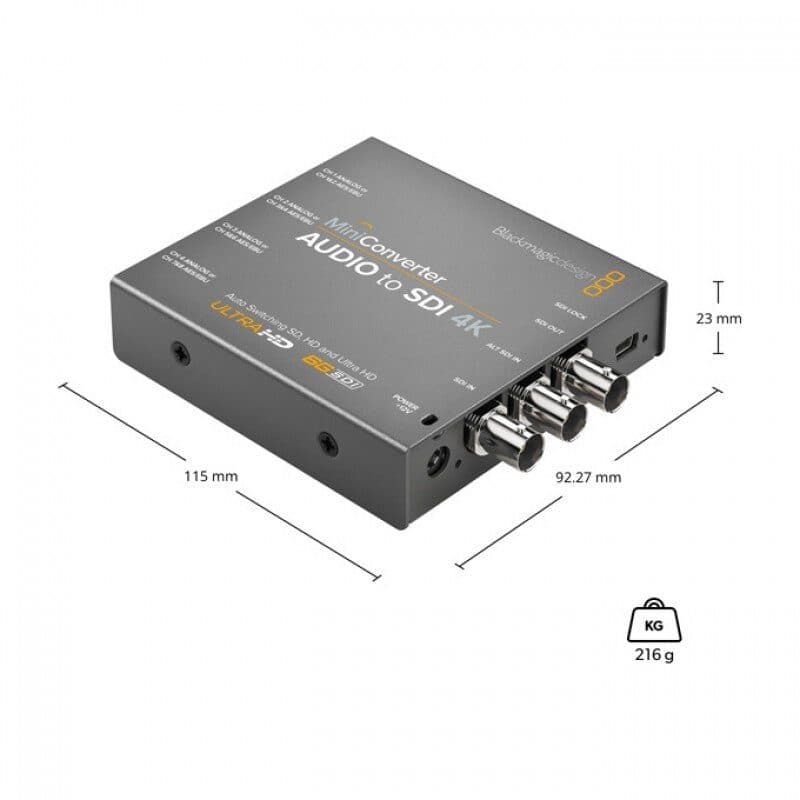

| Dimensions | 114.83 x 92.27 x 23 mm |
| HD video standards | 720p 50, 720p 59.94, 720p 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 47.95, 1080p 48, 1080p 50, 1080p 59.94, 1080p 60, 1080PsF 23.98, 1080PsF 24, 1080PsF 25, 1080PsF 29.97, 1080PsF 30, 1080i 50, 1080i 59.94, 1080i 60 |
| Internal software upgrade | via included updater application |
| Mac | 10.15 Catalina, 11.1 Big Sur or later |
| Multi rate support | auto detection of SD, HD or 6G-SDI |
| Operating temperature | 0 to 40 °C |
| Operational voltage range | 12 - 31 V DC |
| Power consumption | 8.40 W |
| Power supply | +12V universal power supply included with international socket adapters for most countries. Cable tie point |
| Reclocking | yes |
| Relative humidity | 0 to 90 % non-condensing |
| SD video standards | 720 x 486i 59.94 NTSC, 720 x 576i 50 PAL |
| SDI audio sampling | television standard sample rate 48 kHz 24 bit |
| SDI auto switching | automatic selection between SD, HD and 6G-SDI |
| SDI color precision | 4:2:2, 4:4:4 |
| SDI color space | YUV, RGB |
| SDI compliance |
Codice 101223
Prezzo per 1 unità
30,73 € (IVA inclusa)
25,19 € + IVA
Quantità
| SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE ST-2081, ITU-R BT.656 and ITU-R BT.601 |
| SDI redundant input | automatically switches over if main SDI input is lost |
|---|
| SDI video inputs | 1 x SD, HD or 6G-SDI. 1 x ALT SDI Input for automatic switch over if main input fails |
|---|
| SDI video outputs | 1 x embedded SDI output |
|---|
| SDI video rates | SDI video inputs are automatically detected between standard definition and high definition |
|---|
| SDI video sampling | 4:2:2, 4:4:4 |
|---|
| Software control | Mac and Windows software upgrade via USB |
|---|
| Storage temperature | -20 to 45 °C |
|---|
| Ultra HD video standards | 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30 |
|---|
| Updates and configuration | via USB 2.0 high speed (480 Mb/s) |
|---|
| Weight | 0.215 kg |
|---|
| Windows | 10 64-bit |
|---|
