In magazzinoNuovo
Kit di montaggio a rack da 19 pollici per VT104 - DMT 101223
Codice 101223
Prezzo per 1 unità
30,73 € (IVA inclusa)
25,19 € + IVA
Quantità
Caricamento…
SKU BLM-CONVNTRM/MA/OPTHEAN 9338716003307
Prezzo per 1 unità
628,33 €
515,03 € + IVA
Converte da SDI e fibra ottica SMPTE a HDMI, con connessioni 12G-SDI e XLR, Ethernet per controllo remoto e down converter per sorgenti Ultra HD su display HD. Modulo SFP in fibra ottica venduto separatamente.
| 2K video standards | 2Kp 23.98 DCI, 2Kp 24 DCI, 2Kp 25 DCI, 2KPsF 23.98 DCI, 2KPsF 24 DCI, 2KPsF 25 DCI |
|---|---|
| 4K video standards | 4Kp 23.98 DCI, 4Kp 24 DCI, 4Kp 25 DCI |
| Analog audio outputs | 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for Time Code output |
| Basic Settings control | mini switches, USB and Ethernet via free software utility |
| Digital audio outputs | 4 channels professional 110 ohm balanced digital audio via XLR connectors. Right XLR can be configured for Time Code output |

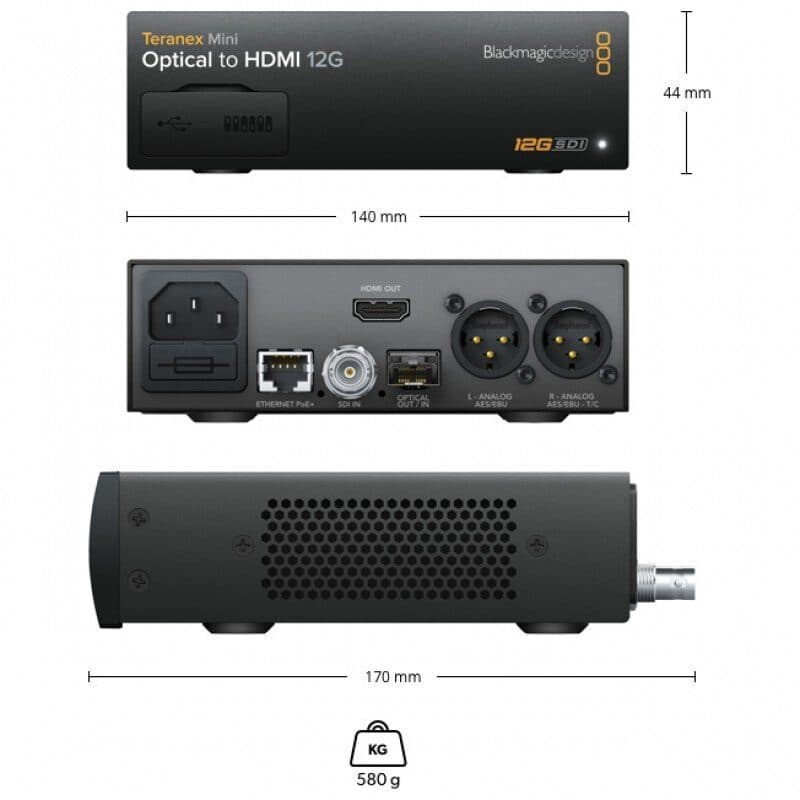

| Dimensions | 14 x 4.4 x 17 cm |
| Embedded audio support | 8 channels |
| HD video standards | 720p 50, 720p 59.94, 720p 60, 1080i 50, 1080i 59.94, 1080i 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60, 1080PsF 23.98, 1080PsF 24, 1080PsF 25 |
| HDMI color precision | YUV 4:2:2 in HD, 2K and 4K. 33 point LUT can be loaded via the Teranex Utility |
| HDMI color space | REC 601, REC 709 |
| HDMI video outputs | 1 x HDMI 2.0 type A connector with support for 2160p 60 |
| Internal software upgrade | via included updater application |
| Multi rate support | auto detection of SD, HD or 12G-SDI |
| Operating temperature | 0 to 40 °C |
| Operational voltage range | 100 to 240 V AC |
| Optical fiber connection (optional) | optional 3G, 6G or 12G-SDI single mode 1310 nm SFP module with LC connector |
| Optional front panel control | front mounted Smart Panel with LCD, rotary knob and six settings buttons |
| PoE | can be powered via 48 V DC using PoE+ (Power over Ethernet) |
| Power consumption | 16 W |
| Power supply | 1 x built in international AC power supply with IEC C14 inlet, IEC power cable required, 100 to 240 V AC input |
Codice 101223
Prezzo per 1 unità
30,73 € (IVA inclusa)
25,19 € + IVA
Quantità
| Reclocking | yes |
|---|
| Relative humidity | 0 to 90% non-condensing |
|---|
| SD video standards | 525i 59.94 NTSC, 625i 50 PAL |
|---|
| SDI audio sampling | Television standard sample rate of 48 kHz and 24‑bit |
|---|
| SDI color precision | 4:2:2 and 4:4:4 |
|---|
| SDI color space | YUV and RGB |
|---|
| SDI compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10 |
|---|
| SDI video inputs | 1 x 12G-SDI SD / HD / 2K / 4K auto switching |
|---|
| SDI video rates | SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI |
|---|
| SDI video sampling | 4:2:2 and 4:4:4 |
|---|
| Software control | Mac OS X and Windows software upgrade via USB-C or Ethernet |
|---|
| Storage temperature | -20 to 60 °C |
|---|
| Ultra HD video standards | 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 47.95, 2160p 48, 2160p 50, 2160p 59.94, 2160p 60 |
|---|
| Updates and configuration | front USB-C or Ethernet |
|---|
| Weight | 580 g |
|---|
