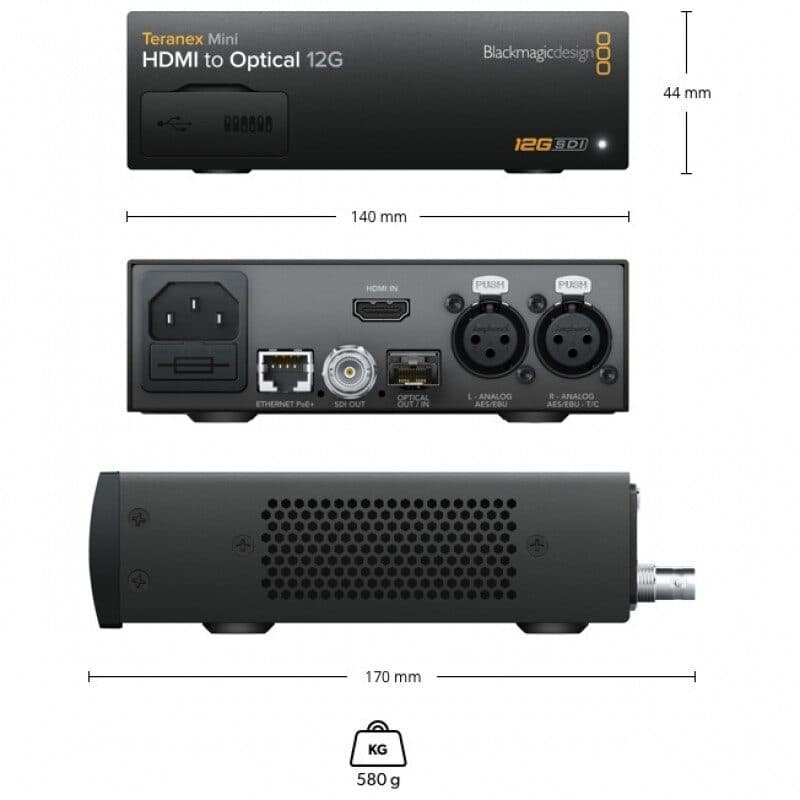

Converte da HDMI a SDI e fibra ottica SMPTE, con connessioni 12G-SDI e XLR, Ethernet per controllo remoto e down converter per fonti SD e HD su display Ultra HD. Modulo SFP in fibra ottica venduto separatamente.
| 2K video standards | 2Kp 23.98 DCI, 2Kp 24 DCI, 2Kp 25 DCI |
|---|---|
| 4K video standards | 4Kp 23.98 DCI, 4Kp 24 DCI, 4Kp 25 DCI |
| Analog audio inputs | 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for Time Code input |
| Basic Settings control | mini switches, USB and Ethernet via free software utility |
| Copy protection | HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content |
| Digital audio inputs | 4 channels professional 110 ohm balanced digital audio via XLR connectors. Right XLR can be configured for Time Code input |
| Dimensions | 14 x 4.4 x 17 cm |
| Embedded audio support | 16 channels |
| HD video standards | 720p 50, 720p 59.94, 720p 60, 1080i 50, 1080i 59.94, 1080i 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60 |
| HDMI color space | REC 601, REC 709 |
| HDMI video inputs | 1 x HDMI 2.0 type A connector with support for 2160p 60 |
| Internal software upgrade | via included updater application |
| Multi rate support | automatic switching between SD / HD / 2K and 4K |
| Operating temperature | 0 to 40 °C |
| Operational voltage range | 100 to 240 V AC |
| Optical fiber connection (optional) | optional 3G / 6G / 12G optical SFP output |
| Optical fiber video outputs | automatically matches the SD, HD and 12G-SDI HDMI video input |
| Optional front panel control | front mounted Smart Panel with LCD, rotary knob and six settings buttons |
| PoE | can be powered via 48 V DC using PoE+ (Power over Ethernet) |
| Power consumption | 16 W |
Codice 101223
Prezzo per 1 unità
30,73 € (IVA inclusa)
25,19 € + IVA
Quantità
| Power supply | 1 x built in international AC power supply with IEC C14 inlet, IEC power cable required, 100 to 240 V AC input |
|---|
| Reclocking | yes |
|---|
| Relative humidity | 0 to 90% non-condensing |
|---|
| SD video standards | 525i 59.94 NTSC, 625i 50 PAL |
|---|
| SDI audio sampling | Television standard sample rate of 48 kHz and 24‑bit |
|---|
| SDI color precision | YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K |
|---|
| SDI color space | REC 601, REC 709 |
|---|
| SDI compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10 |
|---|
| SDI video inputs | optional 3G / 6G / 12G optical SFP input |
|---|
| SDI video outputs | 1 x 12G‑SDI |
|---|
| SDI video rates | SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI |
|---|
| SDI video sampling | 4:2:2 and 4:4:4 |
|---|
| Software control | Mac OS X and Windows software upgrade via USB-C or Ethernet |
|---|
| Storage temperature | -20 to 60 °C |
|---|
| Ultra HD video standards | 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 50, 2160p 59.94, 2160p 60 |
|---|
| Updates and configuration | front USB-C or Ethernet |
|---|
| Weight | 580 g |
|---|
